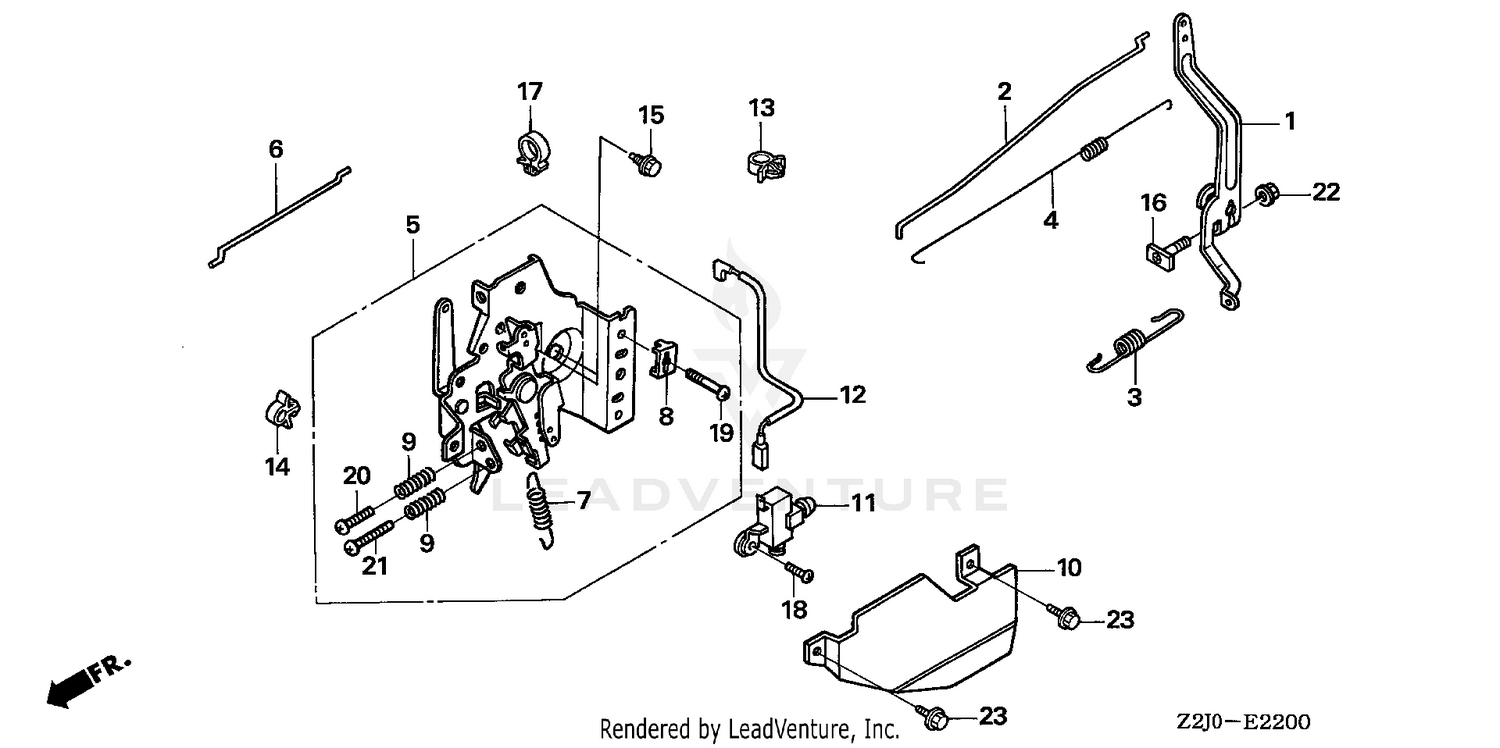

| Ref | Part Number | Description |
|---|
| 1 |
16551-ZE7-000 |
ARM, GOVERNOR Price: $19.90 |
| 2 |
16555-ZE7-000 |
ROD, GOVERNOR Price: $5.30 |
| 3 |
16561-ZE7-020 |
SEE PART DETAILS - PRI; SPRING, GOVERNOR (STD) Price: $4.20 |
| 4 |
16562-ZE6-000 |
SPRING, THROTTLE RETURN (Honda Code 1452911). Price: $5.00 |
| 5 |
16570-ZE7-020 |
SEE PART DETAILS - PRI; CONTROL ASSY. Price: $53.00 |
| 6 |
16573-ZE7-000 |
ROD, CHOKE Price: $2.66 |
| 7 |
16576-ZE7-300 |
SPRING, LEVER Price: $4.66 |
| 8 |
16576-891-000 |
HOLDER, CABLE (Honda Code 0800466). Price: $5.08 |
| 9 |
16584-883-300 |
SPRING, CONTROL ADJUSTING Use from Engine SN 2327377. Price: $5.00 |
| 10 |
16585-ZE7-000 |
PROTECTOR, CONTROL Price: $15.58 |
| 11 |
36100-ZE7-013 |
SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP Price: $20.56 |
| 12 |
36101-ZE7-W00 |
WIRE, STOP SWITCH Price: $18.46 |
| 13 |
46392-SC2-003 |
CLAMP, BRAKE PIPE (GRAY) Price: $5.08 |
| 14 |
36103-ZE1-000 |
HOLDER, STOP SWITCH WIRE Use up to Engine SN 2056819. Price: $2.48 |
| 15 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 16 |
90015-ZE5-010 |
SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671). Price: $3.16 |
| 17 |
90659-680-013 |
CLIP, WIRE HARNESS Price: $8.20 |
| 18 |
93500-04008-0A |
SEE PART DETAILS - PRI; SCREW, PAN (4X8) (Honda Code 0156463). Price: $1.10 |
| 19 |
93500-05016-0A |
SEE PART DETAILS - PRI; SCREW, PAN (5X16) (Honda Code 0145557). Price: $1.14 |
| 20 |
93500-05020-0A |
SEE PART DETAILS - PRI; SCREW, PAN (5X20) (Honda Code 0197731). Price: $1.04 |
| 21 |
93500-05028-0A |
SCREW, PAN (5X28) (Honda Code 0171819). Price: $1.14 |
| 22 |
94050-06000 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623). Price: $0.82 |
