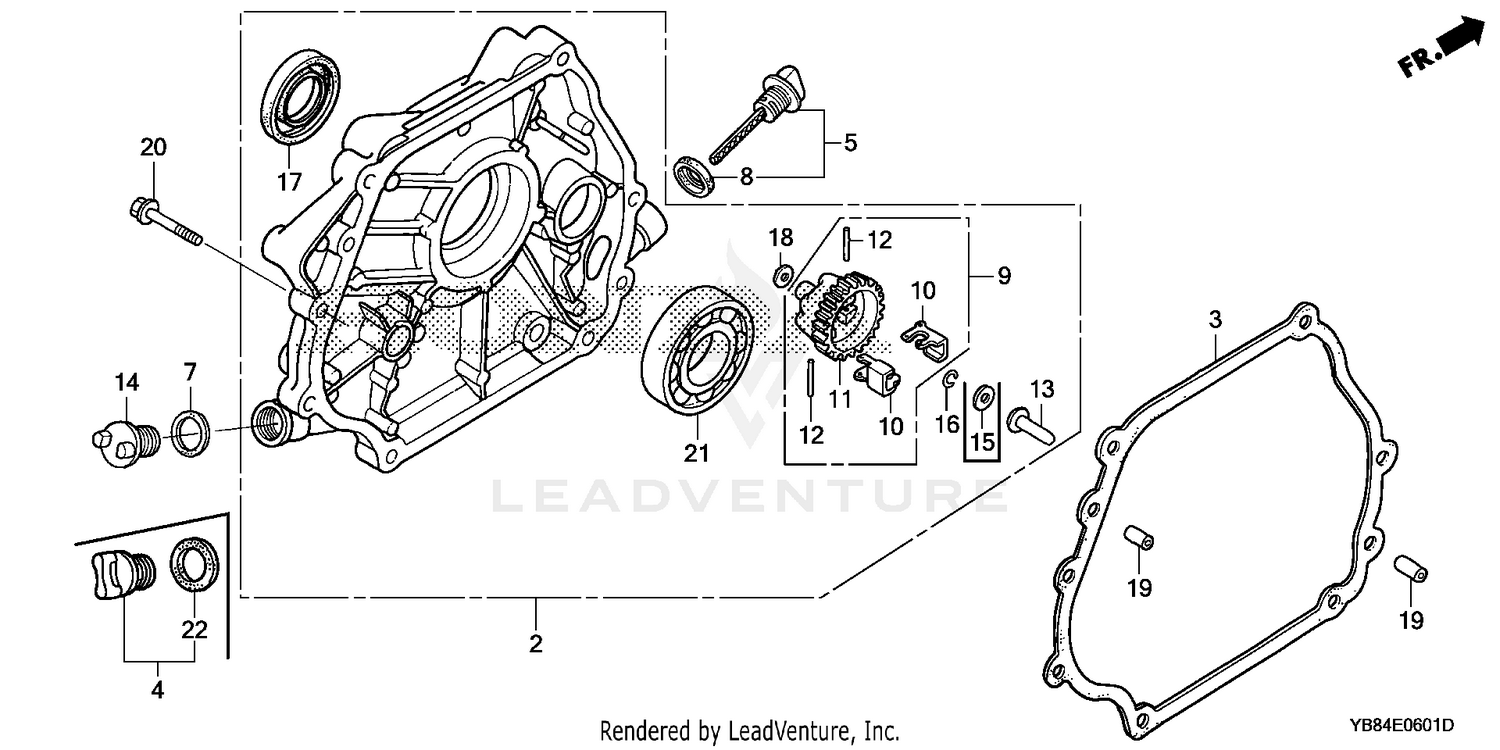

| Ref | Part Number | Description |
|---|
| 2 |
11300-ZE2-632 |
SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE Price: $257.56 |
| 3 |
11381-Z5K-000 |
GASKET, CASE COVER Price: $6.76 |
| 4 |
15600-Z0T-820 |
CAP ASSY., OIL FILLER (Honda Code 7346570). Price: $1.08 |
| 5 |
15600-Z1C-000 |
CAP ASSY., OIL FILLER Price: $7.06 |
| 8 |
15625-Z0T-800 |
GASKET, OIL FILLER CAP (Honda Code 7346588). Price: $4.92 |
| 9 |
16510-ZE2-000 |
GOVERNOR ASSY. (STD) (Honda Code 2871390). Price: $27.54 |
| 10 |
16511-ZE2-000 |
WEIGHT, GOVERNOR (Honda Code 2025955). Price: $3.94 |
| 11 |
16512-ZE2-000 |
HOLDER, GOVERNOR WEIGHT (Honda Code 2106219). Price: $19.28 |
| 12 |
16513-ZE2-000 |
PIN, GOVERNOR WEIGHT (Honda Code 2025971). Price: $2.22 |
| 13 |
16531-Z0A-000 |
SEE PART DETAILS - PRI; SLIDER, GOVERNOR (Honda Code 6605117). Price: $3.72 |
| 16 |
90602-ZE1-000 |
SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697). Price: $1.74 |
| 17 |
91201-889-003 |
SEE PART DETAILS - PRI; OIL SEAL (30X45X8) Price: $11.64 |
| 18 |
94101-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900). Price: $0.82 |
| 19 |
90701-HC4-000 |
PIN, DOWEL (8X12) (Honda Code 2978443). Price: $3.72 |
| 20 |
95701-08035-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029). Price: $2.88 |
| 21 |
96100-62060-00 |
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206) (Honda Code 0636118). Price: $19.48 |
