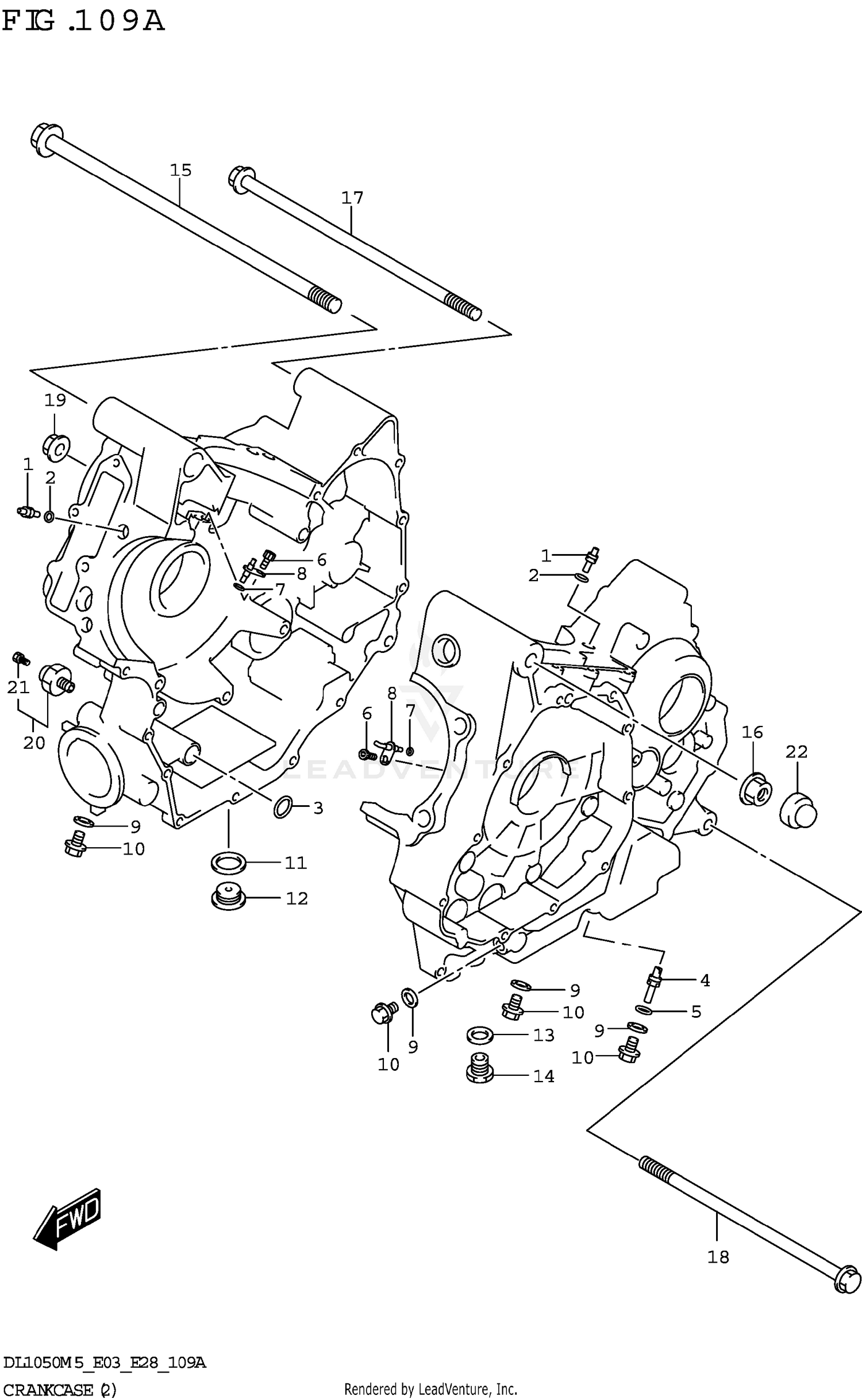

CRANKCASE (2) (DL1050RR)
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 09493-28010 | JET AIR (14) Price: $17.40 |
| 2 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
| 3 | 09280-12009 | O RING (D:1.9,ID:12.6) This part replaces 09280-13007. Price: $3.87 |
| 4 | 09493-20014 | JET,T/M OIL GALLERY Price: $17.72 |
| 5 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
| 6 | 09106-06075 | BOLT (6X12) Price: $3.02 |
| 7 | 09280-05007 | O-RING (D:1.2,ID:4.7) Price: $2.02 |
| 8 | 11390-06G10 | JET,PISTON COOLING Price: $24.72 |
| 9 | 09168-08016 | GASKET (8.2X14X1) Price: $1.99 |
| 10 | 01550-0812A | BOLT Price: $2.79 |
| 11 | 09168-16002 | GASKET (16X22X2) Price: $2.30 |
| 12 | 09248-16012 | PLUG (16X8) Price: $5.66 |
| 15 | 09103-12016 | BOLT (12X300) Price: $27.61 |
| 16 | 09159-12056 | NUT Price: $8.98 |
| 17 | 09103-10205 | BOLT (10X225) Price: $20.50 |
| 18 | 09103-10226 | BOLT (10X260) Price: $17.60 |
| 19 | 08319-3110A | NUT Price: $3.28 |
| 20 | 37820-33D11 | SWITCH ASSY,OIL PRESSURE Price: $26.40 |
