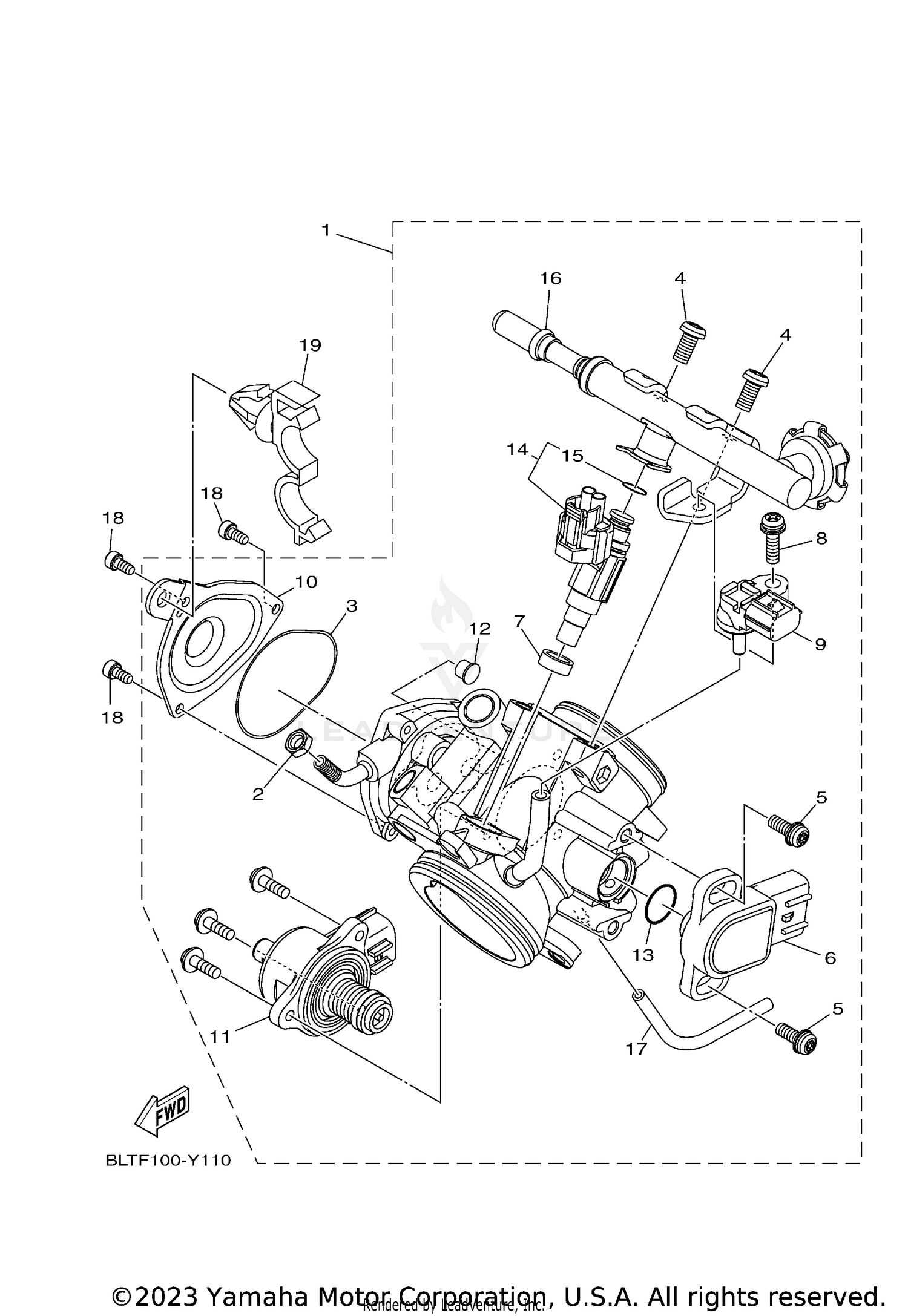

THROTTLE BODY ASSY 1
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B4F-13750-02-00 | THROTTLE BODY ASSY Price: $814.99 |
| 2 | 1S3-14161-00-00 | NUT, CABLE ADJUSTING Price: $8.49 |
| 3 | 5LP-14147-00-00 | O-RING Price: $12.99 |
| 4 | 98517-06012-00 | SCREW,PAN This part replaces 92502-06012-00. Price: $4.10 |
| 5 | 8CC-14216-10-00 | SCREW Price: $8.99 |
| 6 | 3B4-85885-01-00 | THROTTLE SENSOR AS Price: $78.99 |
| 7 | 8FP-13556-00-00 | RUBBER, INJECTOR Price: $15.49 |
| 8 | 2C0-14216-00-00 | SCREW Price: $4.20 |
| 9 | 5S7-82380-00-00 | SENSOR, PRESSURE Price: $203.99 |
| 10 | B16-14293-00-00 | COVER 1 Price: $16.49 |
| 11 | 63P-1312A-02-00 | VALVE, CONTROL This part replaces 63P-1312A-01-00. Price: $435.65 |
| 12 | 1UY-14155-00-00 | GUIDE, CABLE END Price: $19.99 |
| 13 | 5YP-14562-00-00 | O-RING Price: $8.49 |
| 14 | 1XD-13761-00-00 | INJECTOR Price: $177.99 |
| 15 | 1XD-14147-00-00 | O-RING Price: $15.49 |
| 16 | B16-13160-00-00 | DELIVERY PIPE ASSY 1 Price: $289.99 |
| 17 | 1XD-13543-00-00 | HOSE, AIR Price: $49.99 |
| 18 | 91312-04008-00 | BOLT, HEXAGON SOCKET HEAD Price: $3.05 |
