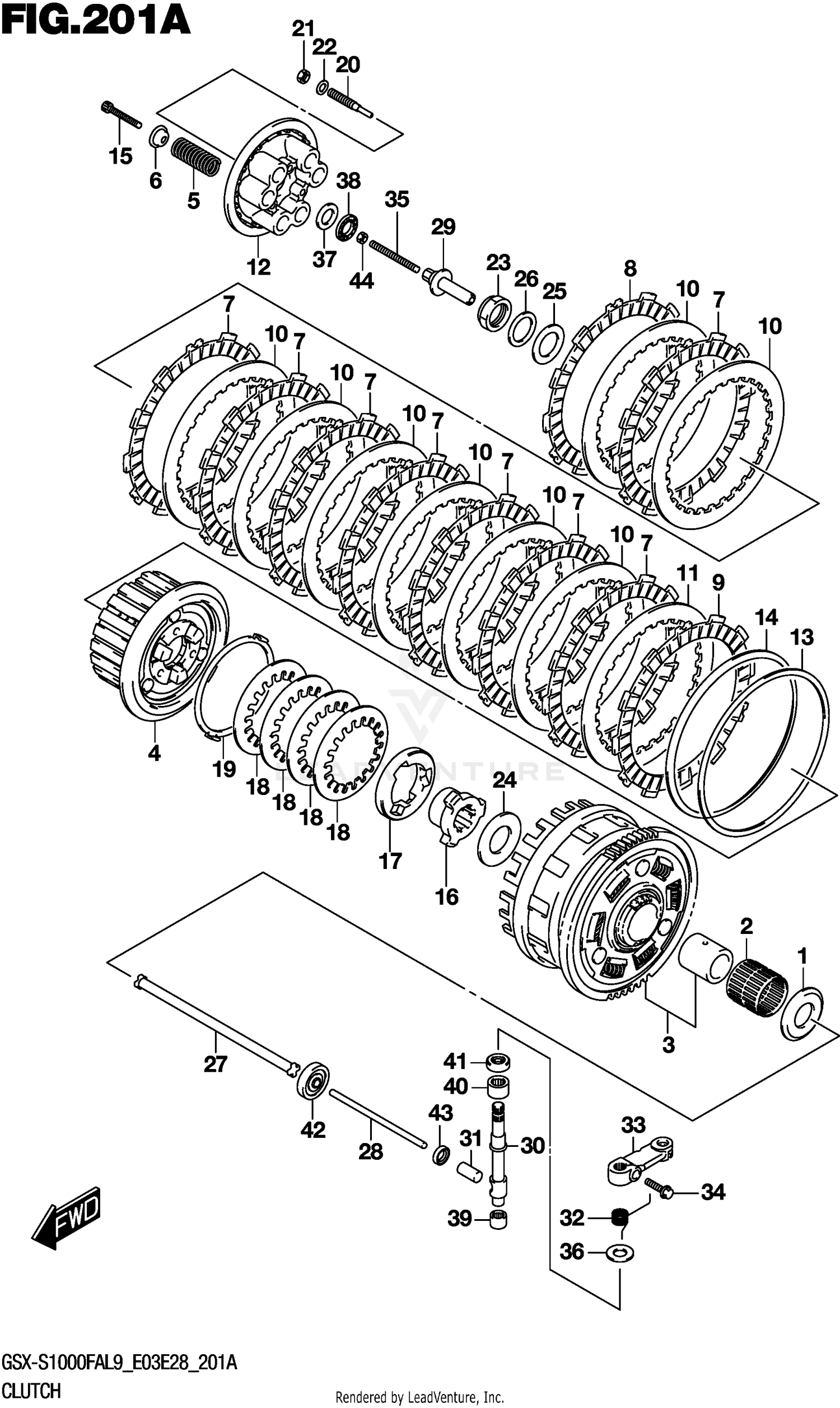

| Ref | Part Number | Description |
|---|
| 1 |
09160-25073 |
WASHER (25X54X2.4) Price: $15.23 |
| 2 |
09263-35017 |
BEARING (35X40X35.8) Price: $50.09 |
| 3 |
21200-40880 |
GEAR ASSY, PRI DRIVEN Price: $556.57 |
| 4 |
21410-41G20 |
HUB,CLUTCH SLEEVE Price: $258.07 |
| 5 |
21413-41G00 |
SPRING,CLUTCH Price: $9.30 |
| 6 |
21414-29F00 |
WASHER Price: $7.94 |
| 7 |
21441-36F00 |
PLATE,CLUTCH DRIVE (T:2.7) Price: $26.89 |
| 8 |
21441-49H00 |
PLATE,CLUTCH DRIVE (T:2.7) Price: $37.74 |
| 9 |
21442-41G00 |
PLATE,CLUTCH DRIVE NO.3 (T:2. Price: $34.67 |
| 10 |
21451-41G00 |
PLATE, CLUTCH DRIVEN (T:2.3) Price: $17.33 |
| 11 |
21451-41G40 |
PLATE, CLUTCH DRIVEN NO.2 Price: $17.99 |
| 12 |
21462-41G00 |
DISC,CLUTCH PRESSURE Price: $84.85 |
| 13 |
21471-41G00 |
SEAT,WAVE WASHER Price: $17.55 |
| 14 |
21472-41G20 |
WASHER,CLUTCH PLATE WAVE Price: $25.36 |
| 15 |
21482-41G10 |
BOLT,CLUTCH SPRING Price: $4.14 |
| 16 |
21611-41G20 |
CAM,CLUTCH DRIVE Price: $152.41 |
| 17 |
21612-41G20 |
CAM,CLUTCH DRIVEN Price: $128.74 |
| 18 |
21621-41G00 |
WASHER,CAM REACTION WAVE Price: $18.84 |
| 19 |
21624-41G10 |
WASHER,CAM REACTION SEAT Price: $17.44 |
| 20 |
21622-41G00 |
LIFTER,CLUTCH PRESSURE DISC Price: $13.34 |
| 21 |
21623-41G00 |
NUT,CL PRESS DISC LIFTER LOCK Price: $3.17 |
| 22 |
09181-08139 |
SHIM (8.8X14X1) Price: $2.33 |
| 23 |
09159-24010 |
NUT Price: $16.09 |
| 24 |
09160-25056 |
WASHER (25X50X2.5) Price: $14.34 |
| 25 |
09160-25077 |
WASHER (25X41X2.5) Price: $11.01 |
| 26 |
09164-24008 |
WASHER (24.2X35X2.7) Price: $4.83 |
| 27 |
23110-38B00 |
ROD,CLUTCH PUSH,R Price: $28.64 |
| 28 |
23111-35F00 |
ROD,CLUTCH PUSH LH Price: $16.44 |
| 29 |
23121-41G00 |
PIECE,CLUTCH PUSH Price: $52.95 |
| 30 |
23122-41G00 |
CAMSHAFT,CLUTCH RELEASE Price: $61.46 |
| 31 |
23123-41G00 |
CAP,CLUTCH PUSH ROD Price: $13.51 |
| 32 |
23125-41G00 |
SPRING,CLUTCH RELEASE RETURN Price: $4.01 |
| 33 |
23271-41G60 |
ARM, CLUTCH RELEASE Price: $60.01 |
| 34 |
09103-06223 |
BOLT (6X20) Price: $3.00 |
| 35 |
09134-06015 |
SCREW (6X73) Price: $8.39 |
| 36 |
09160-10020 |
WASHER (10.5X24X1.0) Price: $2.18 |
| 37 |
09160-15045 |
WASHER (15.5X28X1) Price: $4.75 |
| 38 |
09263-15003 |
BEARING (15X28X2) Price: $10.10 |
| 39 |
09263-10014 |
BEARING (10X14X10) Price: $16.47 |
| 40 |
09263-12027 |
BEARING (12X18X12) Price: $8.90 |
| 41 |
09282-10012 |
SEAL,OIL (10X20X6) Price: $9.72 |
| 42 |
09283-06010 |
OIL SEAL (6X34X10.5) Price: $20.46 |
| 43 |
09285-10004 |
SEAL,OIL (10X17X5) Price: $4.10 |
