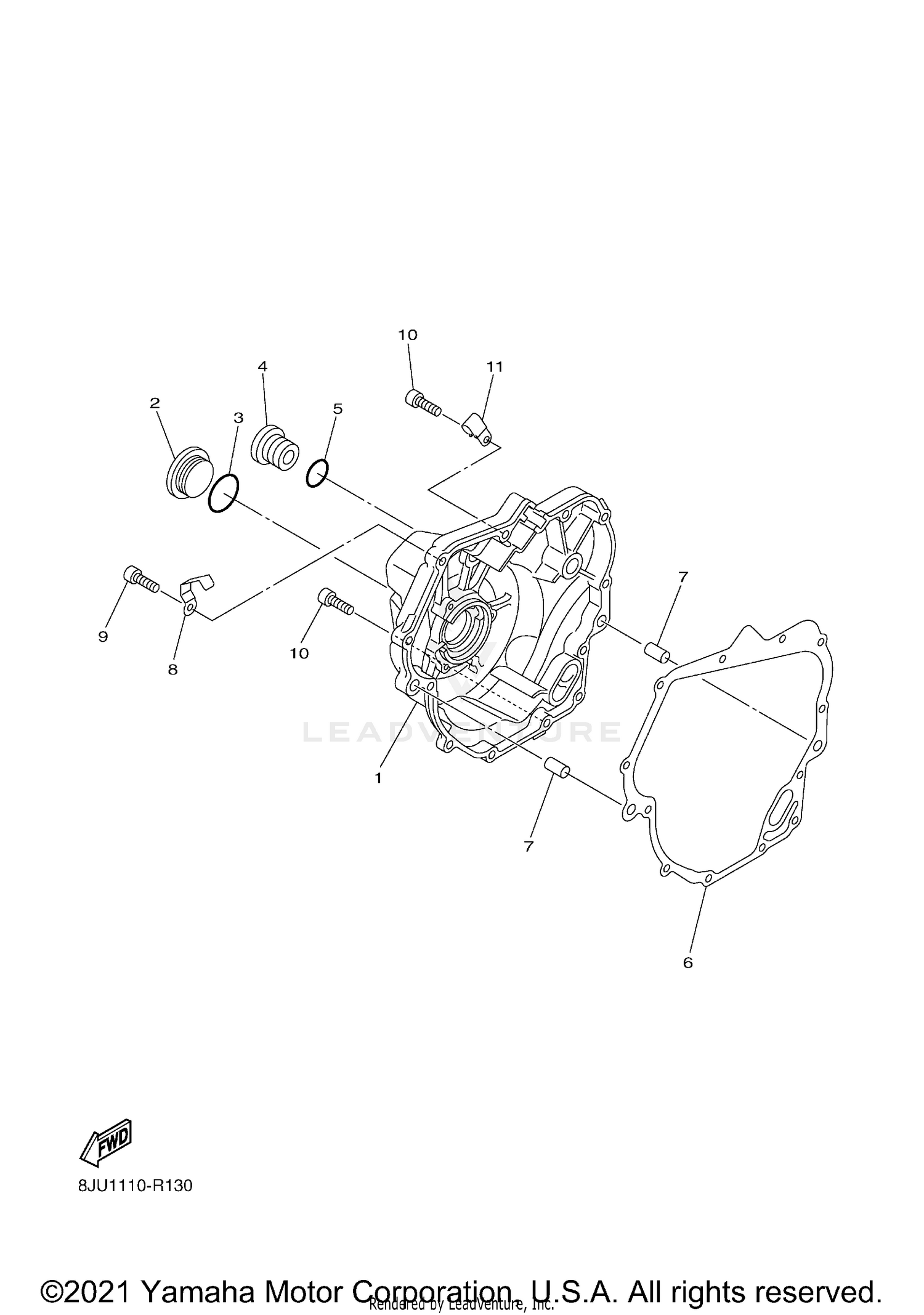

CRANKCASE COVER 1
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 8HF-15421-00-00 | COVER, CRANKCASE 2 Price: $279.99 |
| 2 | 90340-32080-00 | PLUG, STRAIGHT SCREW Price: $35.99 |
| 3 | 93210-32172-00 | O-RING Price: $8.49 |
| 4 | 90340-14117-00 | PLUG, STRAIGHT SCREW Price: $16.49 |
| 5 | 93210-14369-00 | O-RING Price: $8.49 |
| 6 | 2HC-15461-00-00 | GASKET, CRANKCASE COVER 2 Price: $19.99 |
| 7 | 99530-08012-00 | PIN, DOWEL Price: $6.60 |
| 8 | 90462-08225-00 | CLAMP Price: $9.49 |
| 9 | 91317-06025-00 | BOLT This part replaces 91312-06025-00. Price: $2.65 |
| 10 | 90110-06240-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06231-00. Price: $11.49 |
