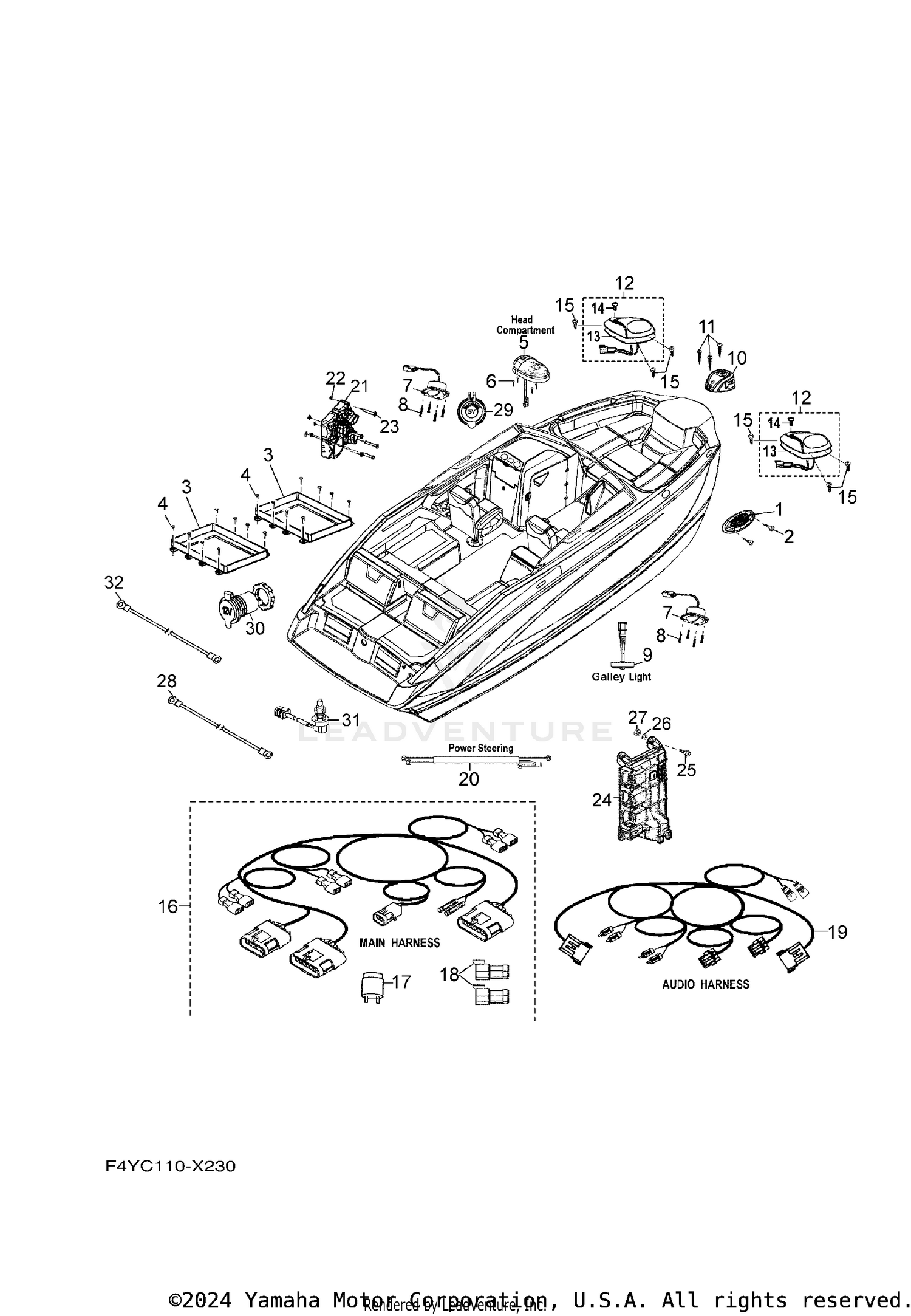

| Ref | Part Number | Description |
|---|
| 1 |
F3H-U8304-10-00 |
SINGLE HORN ASSY. Price: $69.99 |
| 2 |
90167-08S16-00 |
SCREW, TAPPING Price: $0.25 |
| 3 |
F2D-U8210-01-00 |
BATTERY CASE ASSY Price: $20.99 |
| 4 |
90167-08S12-00 |
SCREW, TAPPING Price: $5.99 |
| 5 |
F4Y-U8124-00-00 |
LIGHT, ROOM 1 Price: $39.99 |
| 6 |
90167-08S20-00 |
SCREW, TAPPING Price: $5.99 |
| 7 |
F3F-U8124-00-00 |
LIGHT, ROOM 1 Price: $34.99 |
| 8 |
90161-06S12-00 |
SCREW, COUTERSUNK Price: $5.99 |
| 9 |
F4Y-U8124-10-00 |
LIGHT, ROOM 1 Price: $58.99 |
| 10 |
F3H-U8130-01-00 |
BOW LIGHT ASSY. Price: $102.99 |
| 11 |
90167-08S12-00 |
SCREW, TAPPING Price: $5.99 |
| 12 |
F3F-U8130-00-00 |
BOW LIGHT ASSY. Price: $248.99 |
| 13 |
F3F-U8132-00-00 |
GASKET, LIGHT Price: $56.99 |
| 14 |
90149-06S06-00 |
SCREW Price: $4.99 |
| 15 |
90167-08S12-00 |
SCREW, TAPPING Price: $5.99 |
| 17 |
F3S-U8341-10-00 |
BUZZER Price: $44.99 |
| 18 |
F5K-U8248-00-00 |
RESISTOR Price: $77.99 |
| 19 |
F4Y-U827K-20-00 |
WIRE HARNESS 8 Price: $1,912.99 |
| 20 |
F5K-U827M-30-00 |
WIRE HARNESS 10 Price: $978.99 |
| 21 |
F3F-U8314-00-00 |
SWITCH,BATTERY Price: $380.99 |
| 22 |
90204-10S00-00 |
WASHER, SPRING Price: $6.99 |
| 23 |
90167-08S24-00 |
SCREW, TAPPING Price: $5.99 |
| 24 |
F4Y-U8353-02-00 |
SWITCH, CONTROL This part replaces F4Y-U8353-01-00. Price: $688.99 |
| 25 |
90149-10SD5-00 |
SCREW Price: $11.99 |
| 26 |
90209-10SB1-00 |
WASHER Price: $5.99 |
| 27 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 28 |
F0R-U827J-00-00 |
WIRE HARNESS 7 Price: $83.99 |
| 29 |
F5V-U8284-00-00 |
RECEPTACLE, ACCESSOR Price: $66.99 |
| 30 |
F0K-U8284-00-00 |
RECEPTACLE, ACCESSORY Price: $19.99 |
| 31 |
F1C-6834B-00-00 |
SWITCH, ENGINE STOP Price: $164.99 |
