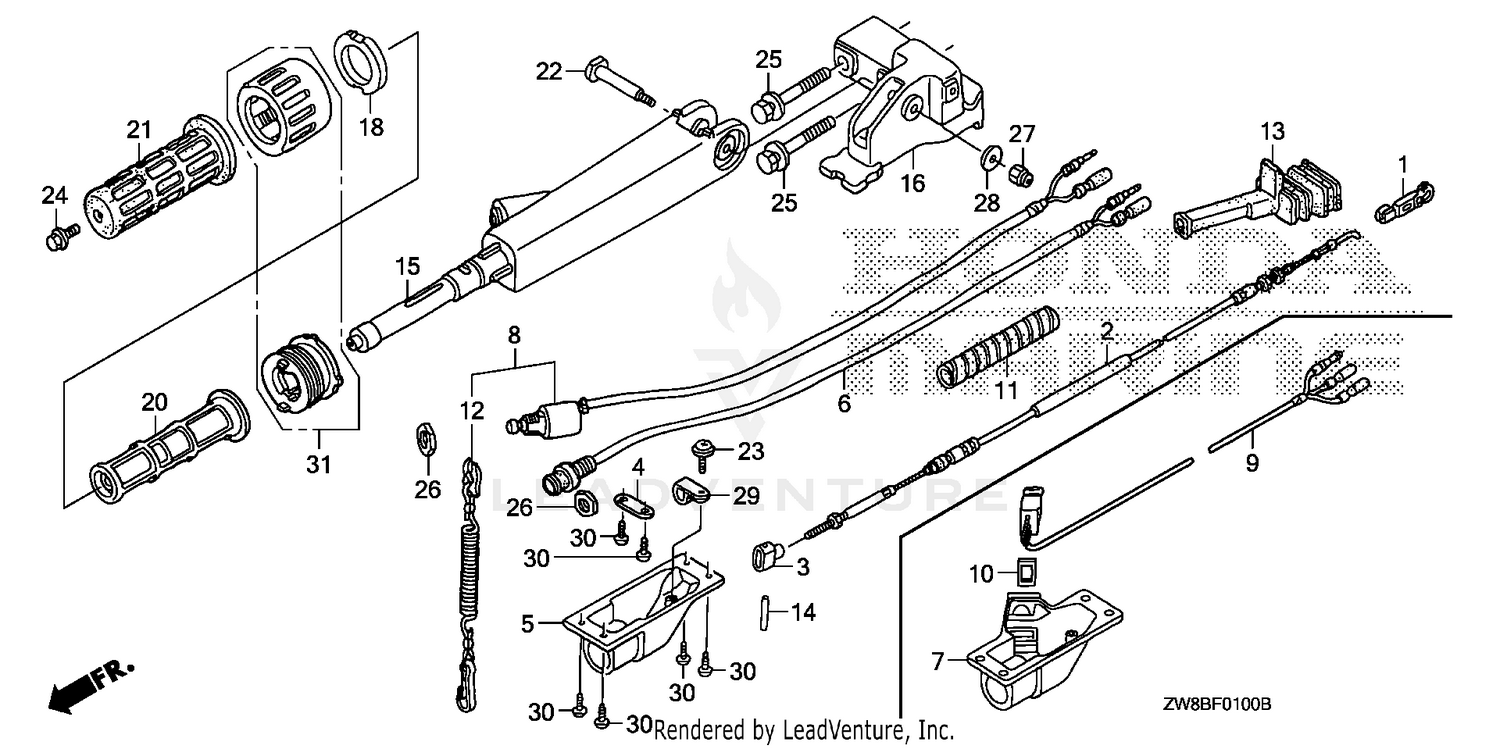

| Ref | Part Number | Description |
|---|
| 1 |
17838-ZW9-000 |
LINKAGE, PIVOT Price: $9.68 |
| 2 |
17910-ZW9-023 |
CABLE, THROTTLE Price: $42.04 |
| 3 |
17917-ZW9-000 |
PIVOT, THROTTLE CABLE Price: $9.34 |
| 4 |
24625-ZV5-010 |
SEE PART DETAILS - PRI; PLATE, SHIFT Price: $3.08 |
| 5 |
31127-ZW9-730 |
COVER, STATOR Price: $18.96 |
| 6 |
35150-ZW9-731 |
SWITCH ASSY., STARTER Price: $47.68 |
| 8 |
35180-ZW9-023 |
SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP Price: $88.56 |
| 11 |
36105-ZW9-003 |
TUBE, SPIRAL B Price: $6.54 |
| 12 |
36182-ZV4-651 |
SEE PART DETAILS - PRI; WIRE, EMERGENCY (SINGLE) (DUAL) Price: $25.28 |
| 13 |
40105-ZV4-000 |
GROMMET, OIL CASE (A) Price: $23.36 |
| 14 |
53103-ZW9-000 |
PIN, THROTTLE CABLE Price: $3.84 |
| 15 |
53110-ZW9-010ZA |
SEE PART DETAILS - PRI; HANDLEBAR *NH246* (LOOSY GRAY) Price: $165.06 |
| 16 |
53131-ZW9-C10ZA |
SEE PART DETAILS - PRI; BRACKET, HANDLEBAR *NH246* (LOOSY GRAY) Price: $105.00 |
| 18 |
53133-ZW9-000 |
PAD, THROTTLE FRICTION Price: $8.76 |
| 20 |
53141-ZW9-000 |
PIPE, GRIP Price: $39.08 |
| 21 |
53165-ZW9-000 |
RUBBER, GRIP Price: $15.34 |
| 22 |
53171-ZW9-000 |
SCREW, HANDLE PIVOT Price: $11.06 |
| 23 |
90002-SB2-000 |
SCREW, TAPPING (4X10) Price: $5.84 |
| 24 |
90102-ZW9-000 |
BOLT, FLANGE (6X12) Use from Frame SN 1005249. Price: $2.90 |
| 25 |
90165-ZW9-000 |
BOLT-WASHER (10X55) Price: $13.94 |
| 26 |
90302-921-000 |
NUT, HEX. (16MM) DUAL QTY = (2) (SINGLE) Price: $5.62 |
| 27 |
90305-ZV4-000 |
NUT, SELF-LOCK (8MM) Price: $6.22 |
| 28 |
90514-921-000 |
WASHER (8MM) Price: $1.36 |
| 29 |
91475-SB6-000 |
CLIP, WIRE HARNESS (6.3MM) Price: $10.58 |
| 30 |
93903-243J0 |
SCREW, TAPPING (4X12) Price: $2.16 |
