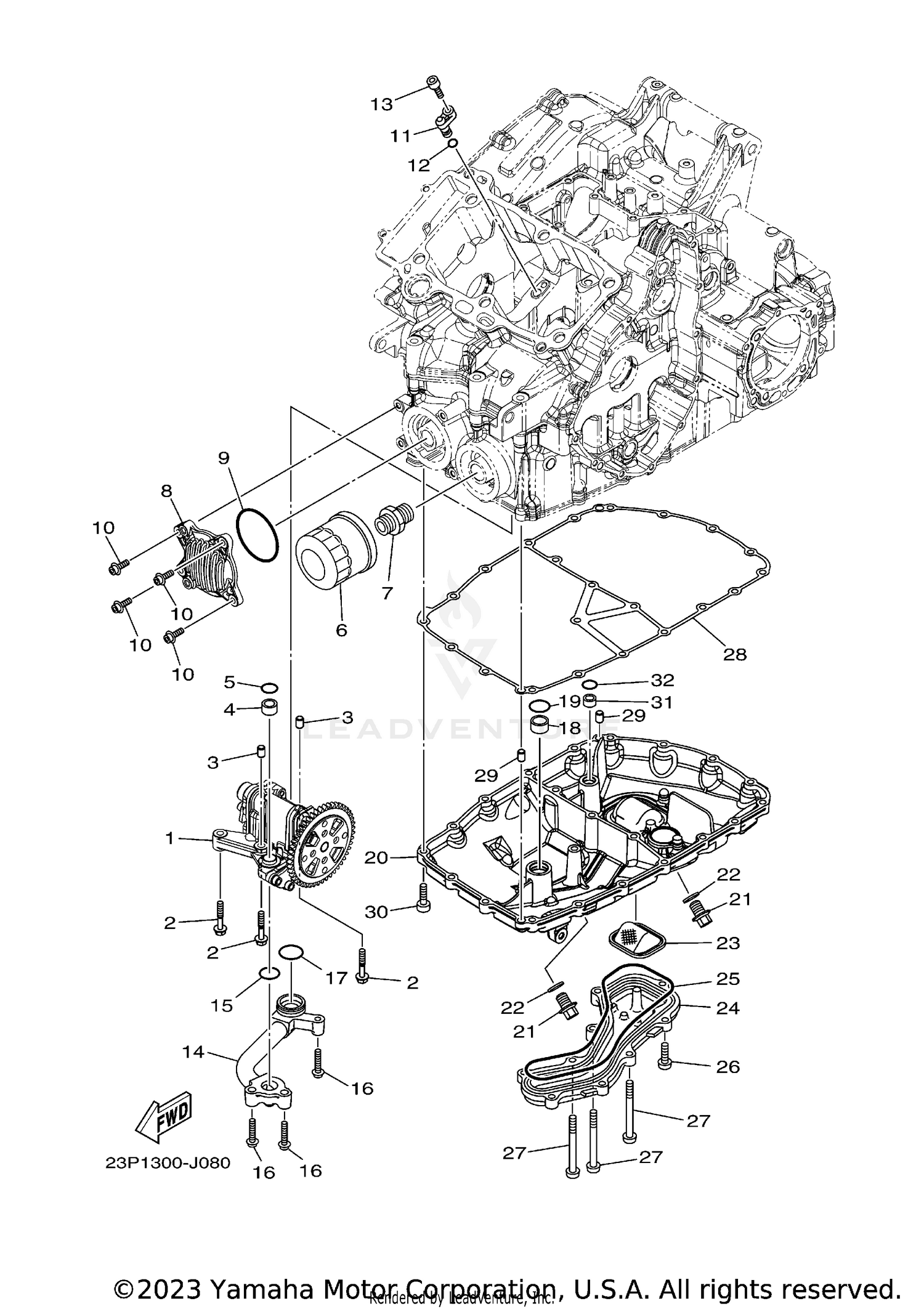

| Ref | Part Number | Description |
|---|
| 1 |
23P-13300-00-00 |
OIL PUMP ASSY Price: $546.99 |
| 2 |
95812-06035-00 |
BOLT, FLANGE Price: $5.49 |
| 3 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 4 |
90387-13005-00 |
COLLAR Price: $2.50 |
| 5 |
93210-15566-00 |
O-RING Price: $8.49 |
| 6 |
5GH-13440-90-00 |
ELEMENT ASSY, OIL CLEANER This part replaces 5GH-13440-60-00. Price: $16.49 |
| 7 |
90401-20008-00 |
BOLT, UNION Price: $25.99 |
| 8 |
23P-13461-00-00 |
PLATE, ADAPTOR Price: $75.99 |
| 9 |
93210-60426-00 |
O-RING Price: $11.49 |
| 10 |
90110-06348-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06347-00. Price: $3.35 |
| 11 |
23P-15155-00-00 |
NOZZLE 3 Price: $52.99 |
| 12 |
93210-06632-00 |
O-RING This part replaces 93210-06422-00. Price: $9.49 |
| 13 |
91317-06016-00 |
BOLT (4MY) This part replaces 90110-06161-00. Price: $1.25 |
| 14 |
23P-13416-00-00 |
PIPE, OIL 1 Price: $210.99 |
| 15 |
93210-23326-00 |
O-RING Price: $9.49 |
| 16 |
90110-06346-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06345-00. Price: $9.49 |
| 17 |
93210-27778-00 |
O-RING Price: $9.49 |
| 18 |
23P-13117-00-00 |
COLLAR, DISTANCE Price: $5.99 |
| 19 |
93210-19003-00 |
O-RING Price: $9.49 |
| 20 |
23P-13417-00-00 |
COVER, STRAINER Price: $453.99 |
| 21 |
90340-12001-00 |
PLUG, STRAIGHT SCREW Price: $5.49 |
| 22 |
90430-12213-00 |
GASKET Price: $6.49 |
| 23 |
23P-13421-00-00 |
STRAINER 2 Price: $43.99 |
| 24 |
23P-13447-00-00 |
COVER, OIL ELEMENT Price: $147.99 |
| 25 |
23P-13449-00-00 |
GASKET, ELEMENT COVER Price: $28.99 |
| 26 |
90149-06159-00 |
SCREW Price: $8.49 |
| 27 |
90149-06143-00 |
SCREW This part replaces 90149-06176-00. Price: $5.99 |
| 28 |
23P-13414-00-00 |
GASKET, STRAINER COVER Price: $44.99 |
| 29 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 30 |
91317-06025-00 |
BOLT This part replaces 91312-06025-00. Price: $2.65 |
| 31 |
90387-106W6-00 |
COLLAR Price: $16.49 |
