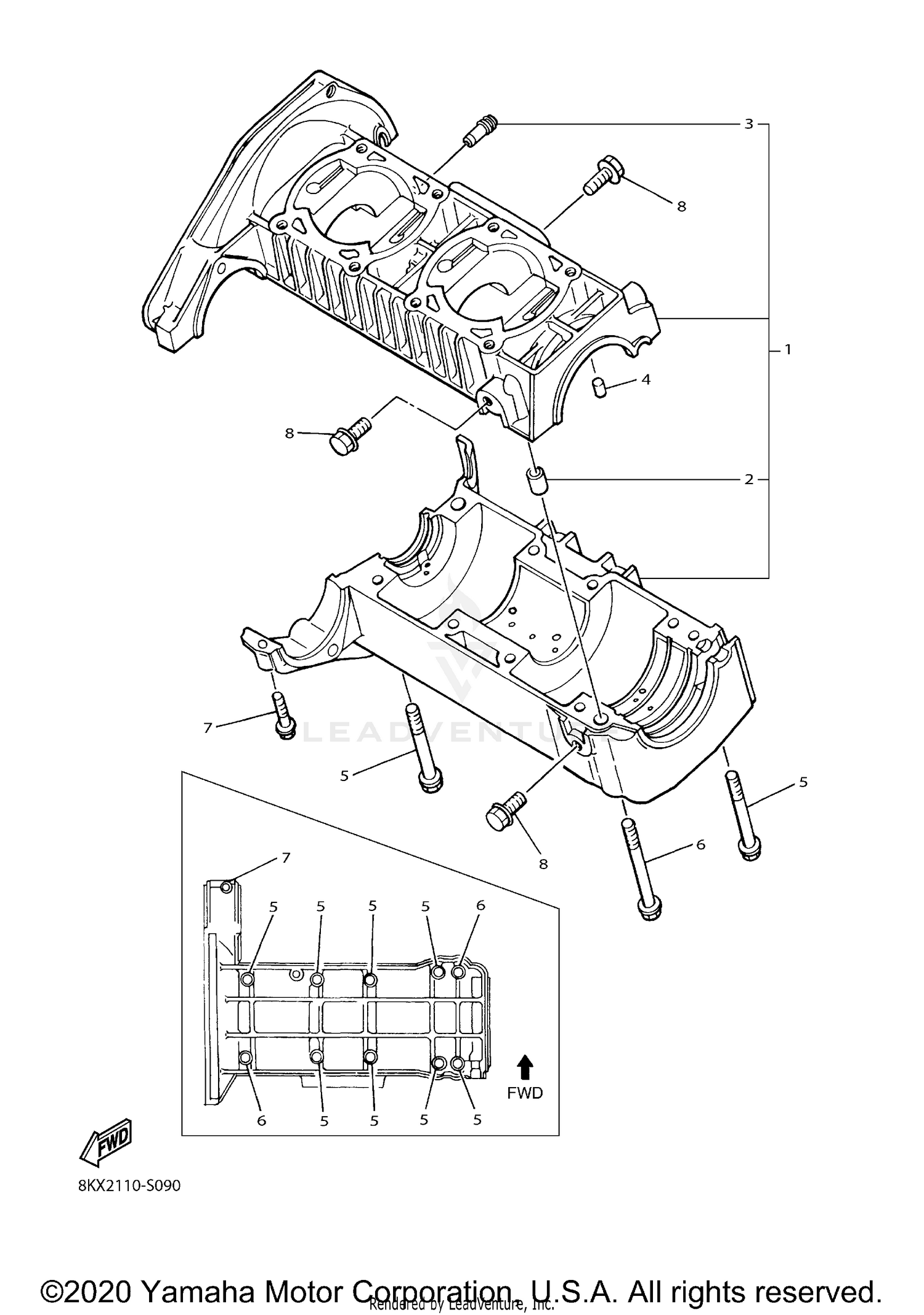

CRANKCASE
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 8KX-15109-09-00 | CRANKCASE ASSY Price: $1,281.99 |
| 2 | 99530-12016-00 | PIN, DOWEL Price: $4.89 |
| 3 | J38-11116-00-00 | JOINT, BREATHER Price: $3.80 |
| 4 | 93604-07141-00 | PIN, DOWEL Price: $2.70 |
| 5 | 95817-08075-00 | BOLT, FLANGE This part replaces 95827-08075-00. Price: $5.49 |
| 6 | 95817-08085-00 | BOLT, FLANGE This part replaces 95827-08085-00. Price: $4.95 |
| 7 | 95817-06030-00 | BOLT,FLANGE This part replaces 95822-06030-00. Price: $4.65 |
