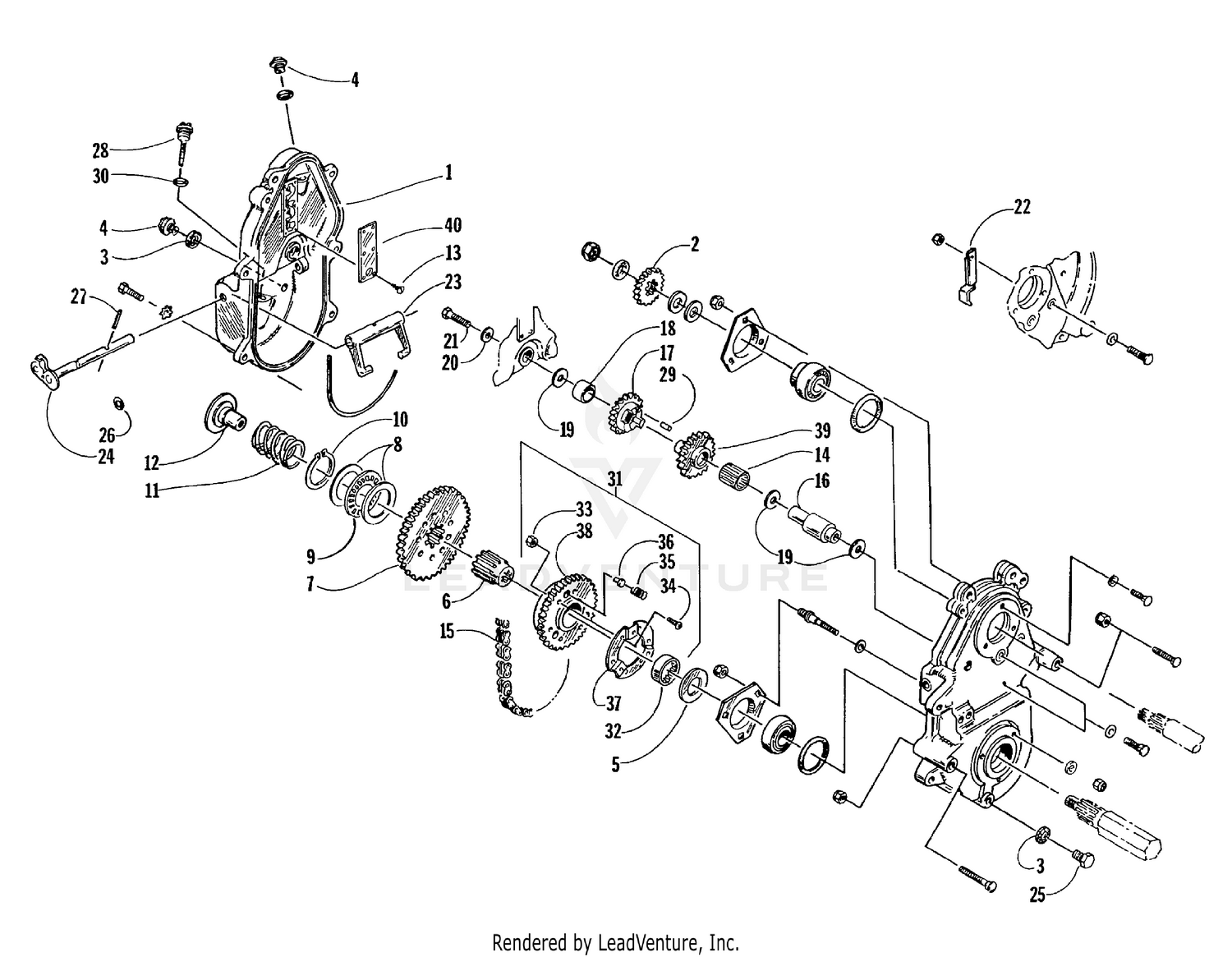

DRIVE/REVERSE DROPCASE ASSEMBLY [66648]

Parts (40)

Ref	Part Number	Description
1	0702-424	Cover, Dropcase - w/O-Ring - REV Price: $129.95
2	0602-444	Sprocket, 19T (Above 4,000 ft Alt.) Price: $56.11
3	0123-641	Washer, Fiber Price: $2.79
4	0623-293	Plug, Drain Price: $2.91
5	0602-012	Spacer Price: $17.63
6	1602-048	Shaft, Extension Price: $137.95
7	0702-048	Gear, 55T Reverse Assembly Price: $427.95
8	0602-023	Washer, Thrust Price: $16.92
9	0602-022	Bearing, Thrust Price: $23.53
10	0602-024	Ring, Retaining Price: $1.19
11	0602-028	Spring, Return Price: $24.20
13	0623-081	Screw, Self-Tapping Price: $0.35
14	0602-205	Bearing, Caged Price: $38.83
15	1602-041	CHAIN, 70P - 13 WIDE Price: $121.95
16	0602-872	Shaft, Reverse Price: $50.95
17	1639-559	KIT, 19T IDLER GEAR REPLACEMENT/TRPL Price: $225.95
18	0602-018	Bearing Price: $20.56
19	0602-215	Spacer, Reverse Idler Price: $3.81
20	8050-242	Washer Price: $2.26
21	8002-130	SCREW, CAP-HH 5/16-18 X .75 G5 Z&Y Price: $0.84
22	0702-553	Bracket, chain Backing-WELDT Price: $55.03
22	0702-555	BRACKET, CHAIN BACKING-WELDT(0602-900) Price: $110.95
23	0602-085	Fork, Shift Price: $100.95
24	0702-291	Shaft, Shift Fork Price: $10.95
25	0602-479	Plug, Drain - Magnetic Price: $24.20
26	0602-021	Seal, O-Ring Price: $0.55
27	0623-542	Pin, Spring Coiled - Black Price: $2.05
28	0602-483	Stick, Oil Level Price: $38.95
29	0602-366	Pin, Alignment Price: $1.45
30	0670-183	O-Ring Price: $0.35
31	0702-170	Sprocket Assembly 39T Price: $244.95
31	0702-393	SPROCKET,40T X 13 WIDE - ASSY Price: $424.95
32	0602-016	Bearing Price: $25.95
33	0123-430	Nut, Lock Price: $2.91
34	0623-182	Screw, Machine Price: $0.35
35	0602-138	Spring, Compression - Reverse Price: $3.14
36	0602-133	Pin, Slip Price: $19.35
37	0602-144	Retainer, Spring Price: $14.49
39	0602-871	Sprocket, Idler - 24T Price: $201.95
39	0602-899	Sprocket, Idler - 22T Price: $125.95
