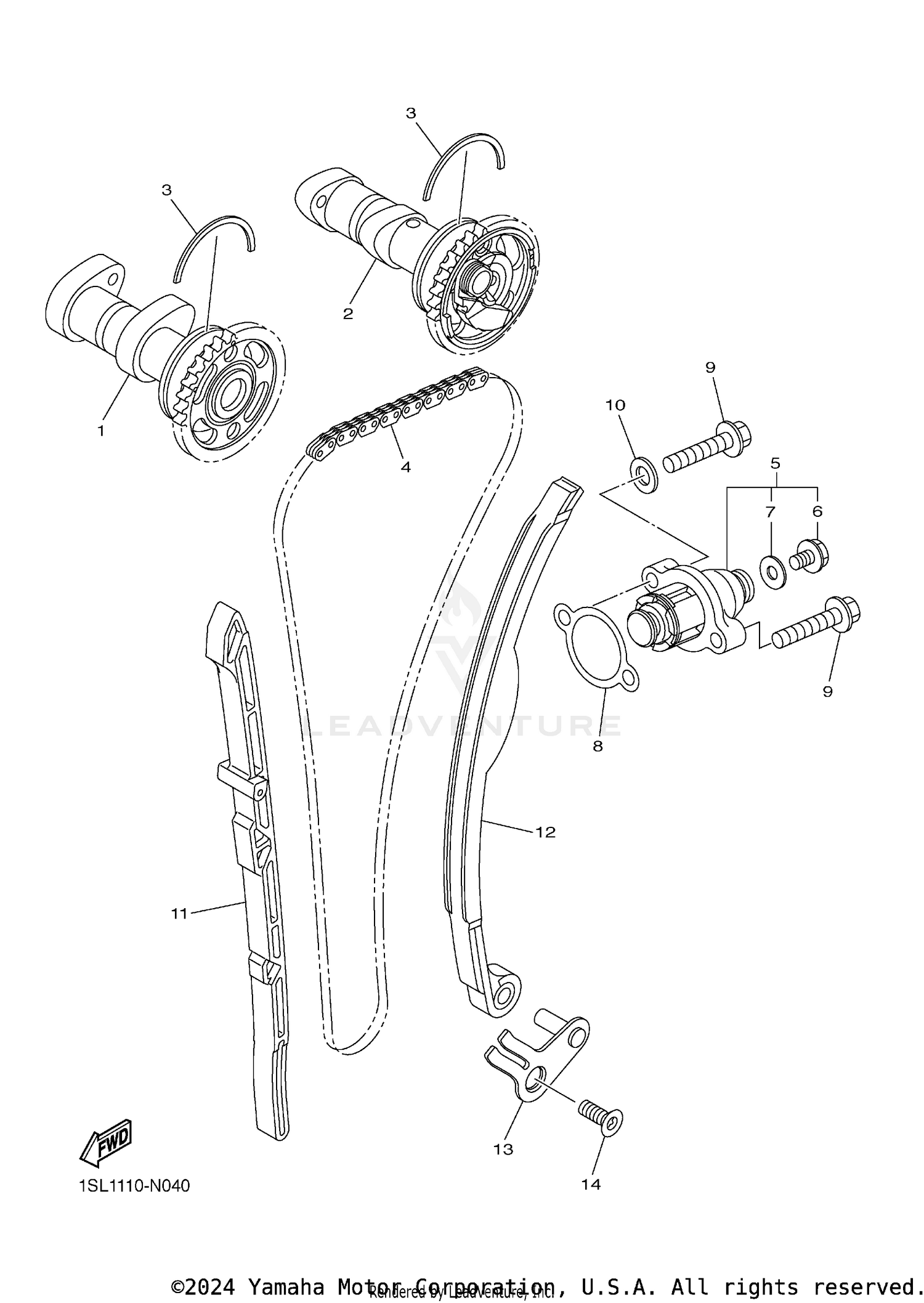

CAMSHAFT CHAIN
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BR9-12170-00-00 | CAMSHAFT ASSY 1 Price: $308.99 |
| 2 | BR9-12180-00-00 | CAMSHAFT ASSY 2 Price: $314.99 |
| 3 | 93440-41178-00 | CIRCLIP Price: $4.30 |
| 4 | 94591-57122-00 | CHAIN Price: $40.99 |
| 5 | 5TA-12210-30-00 | TENSIONER ASSY, CAM CHAIN Price: $139.99 |
| 6 | 5EL-12228-00-00 | BOLT Price: $3.50 |
| 7 | 5EL-12214-00-00 | GASKET Price: $8.49 |
| 8 | 4FM-12213-00-00 | GASKET, TENSIONER CASE Price: $9.49 |
| 9 | 90105-06148-00 | BOLT, FLANGE Price: $9.49 |
| 10 | 90430-06014-00 | GASKET Price: $8.60 |
| 11 | BR9-12251-00-00 | DAMPER, CHAIN 1 Price: $28.99 |
| 12 | 33D-12252-01-00 | DAMPER, CHAIN 2 This part replaces 33D-12252-00-00. Price: $136.99 |
| 13 | 1SL-12233-00-00 | PLATE, GUIDE STOPPER 1 Price: $35.99 |
