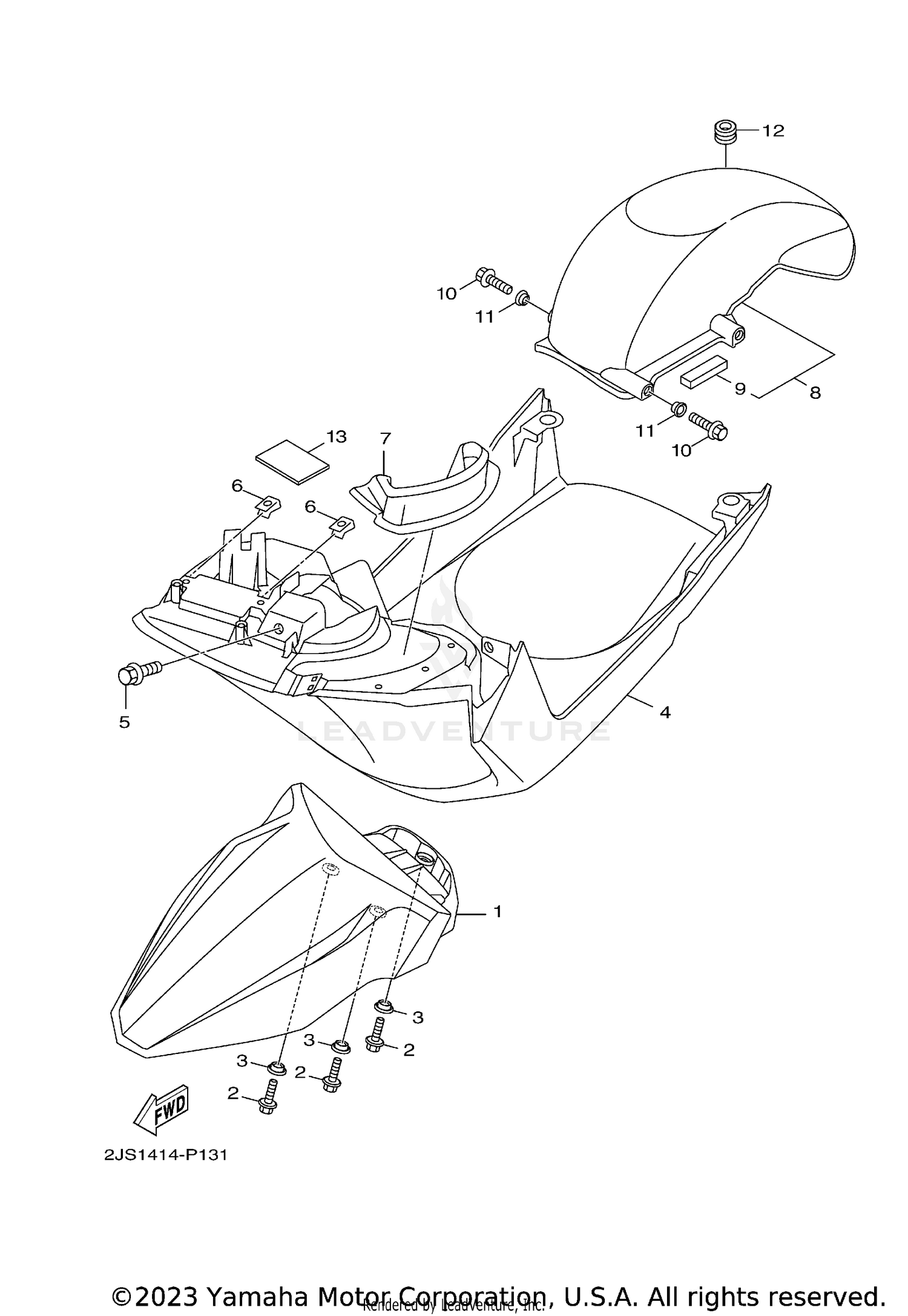

FRONT FENDER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2JS-F1511-00-00 | FENDER, FRONT Price: $13.49 |
| 2 | 90119-06821-00 | BOLT, WITH WASHER Price: $1.80 |
| 3 | 90387-068F8-00 | COLLAR Price: $1.15 |
| 4 | 2JS-F1552-10-00 | FENDER, INNER Price: $35.99 |
| 5 | 90119-06821-00 | BOLT, WITH WASHER Price: $1.80 |
| 6 | 90183-04039-00 | NUT, spring Price: $8.49 |
| 7 | 2JS-F1521-00-00 | FLAP, FRONT FENDER Price: $13.99 |
| 8 | 2JS-XF161-00-00 | FENDER, REAR Price: $14.49 |
| 9 | 5CA-F1639-00-00 | DAMPER 2 Price: $0.35 |
| 10 | 95817-06016-00 | BOLT, FLANGE This part replaces 95807-06016-00. Price: $1.95 |
| 11 | 90387-06868-00 | COLLAR Price: $1.15 |
| 12 | 90480-12813-00 | GROMMET Price: $2.10 |
