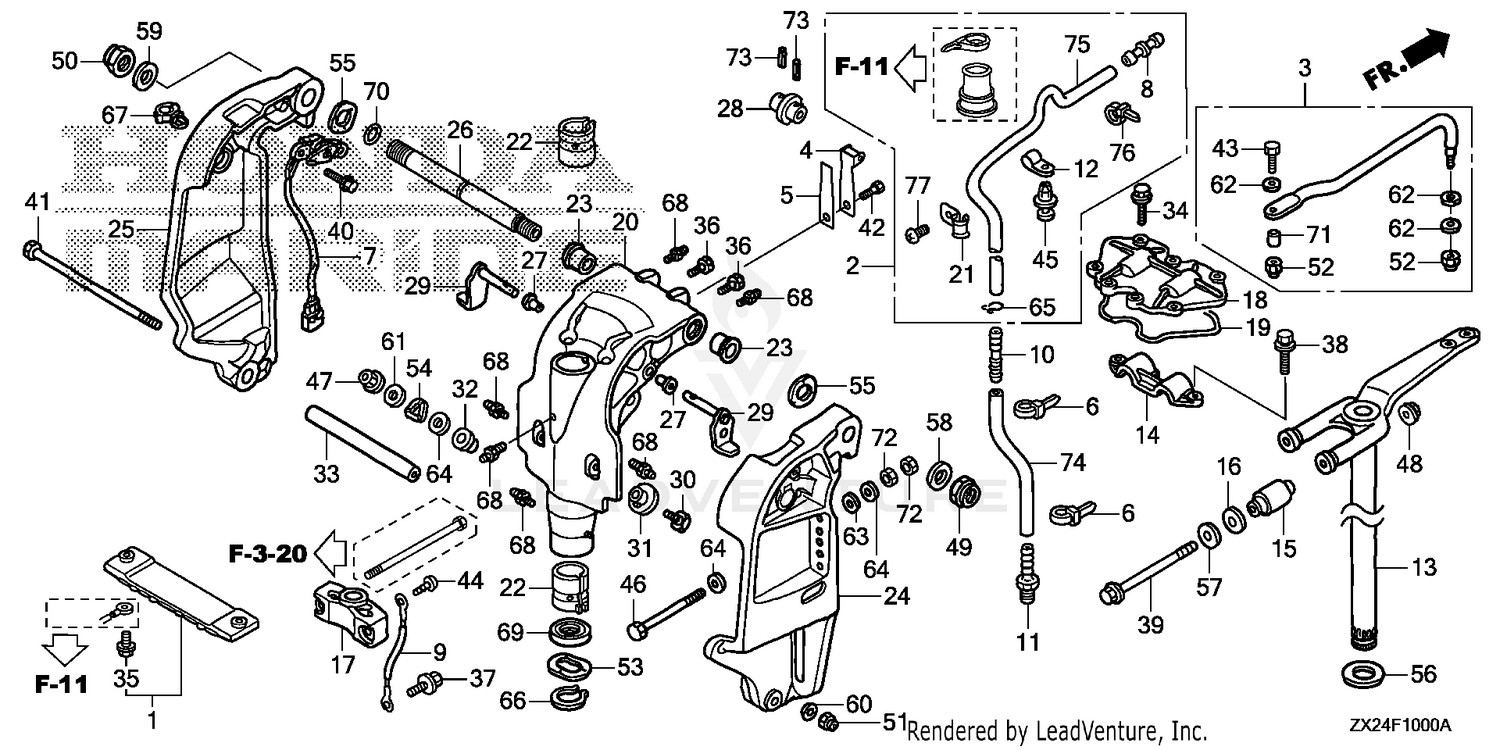

| Ref | Part Number | Description |
|---|
| 4 |
24210-ZV1-010 |
SEE PART DETAILS - PRI; SPRING, CLICK Price: $14.04 |
| 5 |
24221-ZV4-010 |
SEE PART DETAILS - PRI; SPRING, CLICK ASSIST Price: $10.00 |
| 6 |
32161-KM3-003 |
BAND, WIRE Price: $3.56 |
| 7 |
35660-ZY3-003 |
SENSOR ASSY., TRIM ANGLE Price: $238.54 |
| 9 |
40219-ZY3-023 |
WIRE, LEAD (1.5X116MM) Price: $12.40 |
| 10 |
41171-ZV5-000 |
END, NIPPLE Price: $8.28 |
| 11 |
41172-ZV5-000 |
NIPPLE, SENSOR Price: $10.48 |
| 13 |
50100-ZVL-000 |
FRAME, MOUNTING (XL) Price: $1,209.30 |
| 14 |
50109-ZY3-000 |
HOUSING, MOUNTING (UPPER) Price: $57.39 |
| 15 |
50151-ZY3-000 |
MOUNT, RUBBER (UPPER) Price: $89.80 |
| 16 |
50153-ZY3-000 |
RUBBER, MOUNT STOPPER (UPPER) Price: $8.30 |
| 17 |
50161-ZY3-610 |
HOUSING, CENTER MOUNTING (LOWER) (XL) Price: $113.57 |
| 18 |
50166-ZY3-000 |
COVER, MOUNT (UPPER) Price: $90.86 |
| 19 |
50168-ZY3-000 |
SEAL, MOUNT COVER (UPPER) Price: $16.68 |
| 20 |
50201-ZY3-C11ZA |
CASE, SWIVEL *NHB14M* (AQUA MARINE SILVER METALLIC) Price: $1,330.46 |
| 20 |
50201-ZY3-C11ZD |
CASE, SWIVEL *NH565* (GRAND PRIX WHITE) Price: $1,167.50 |
| 22 |
50211-ZY3-000 |
LINER, SWIVEL CASE Price: $9.93 |
| 23 |
50214-ZY3-000 |
BUSH, SWIVEL CASE Price: $14.40 |
| 24 |
50301-ZY3-030ZB |
BRACKET, R. STERN *NHB14M* (AQUA MARINE SILVER METALLIC) Price: $495.90 |
| 24 |
50301-ZY3-030ZD |
BRACKET, R. STERN *NH565* (GRAND PRIX WHITE) Price: $504.04 |
| 25 |
50311-ZY3-020ZB |
BRACKET, L. STERN *NHB14M* (AQUA MARINE SILVER METALLIC) Price: $559.62 |
| 25 |
50311-ZY3-020ZD |
BRACKET, L. STERN *NH565* (GRAND PRIX WHITE) Price: $496.84 |
| 26 |
50381-ZY3-000 |
SHAFT, TILTING Price: $145.40 |
| 27 |
50522-ZY3-000 |
BUSH, TILT ARM Price: $10.98 |
| 28 |
50527-ZY3-000 |
BRACKET, TILTING Price: $14.20 |
| 29 |
50529-ZVL-000 |
STOPPER, TILT Price: $97.72 |
| 30 |
56516-ZY3-A00 |
RECEIVER, THRUST Price: $20.32 |
| 31 |
56518-ZY3-A00 |
BUSH A, THRUST RECEIVE Price: $16.40 |
| 32 |
56519-ZY3-A00 |
BUSH B, THRUST RECEIVE Price: $8.08 |
| 33 |
56539-ZZ0-C00 |
SEE PART DETAILS - PRI; COLLAR, CYLINDER (LOWER) Price: $87.72 |
| 34 |
90005-ZW9-030 |
BOLT, FLANGE (6X20) (ENGINE NO.) This part replaces 90005-ZW9-000. Price: $2.54 |
| 35 |
90009-ZW9-000 |
BOLT, FLANGE (6X23) Use from Frame SN 4800343. Price: $3.94 |
| 37 |
90103-ZW9-010 |
BOLT, FLANGE (6X12) Price: $2.80 |
| 38 |
90103-ZY6-000 |
BOLT-WASHER (10X32) Price: $4.26 |
| 39 |
90104-ZY3-010 |
BOLT, HEX. (12X200) Price: $57.74 |
| 40 |
90105-ZW9-000 |
BOLT, FLANGE (6X20) (ENGINE NO.) Price: $3.94 |
| 41 |
90108-ZW1-000 |
BOLT, HEX. (10X235) Price: $49.16 |
| 42 |
90110-881-000 |
BOLT, HEX. (6X14) Price: $2.90 |
| 44 |
90119-ZV5-000 |
SCREW, PAN (6X8) Price: $2.26 |
| 46 |
90129-ZX2-000 |
BOLT, HEX. (12X130) Price: $22.10 |
| 47 |
90205-ZY1-000 |
NUT, SELF-LOCK (6MM) Price: $6.52 |
| 48 |
90302-ZW5-003 |
NUT, FLANGE (12MM) Price: $8.42 |
| 49 |
90304-ZV5-013 |
SEE PART DETAILS - PRI; NUT, SELF-LOCK (7/8-14UNF) Price: $24.24 |
| 50 |
90304-ZW1-013 |
SEE PART DETAILS - PRI; NUT, SELF-LOCK (M25X2.0) Price: $26.96 |
| 51 |
90306-ZW4-003 |
SEE PART DETAILS - PRI; NUT, FLANGE (10MM) Price: $5.94 |
| 53 |
90501-ZV5-000 |
WASHER, WAVE (40MM) Price: $10.00 |
| 54 |
90501-ZY3-A00 |
WASHER, WAVE (12MM) Price: $5.18 |
| 55 |
90502-ZV5-000 |
WASHER, WAVE (26MM) Price: $11.94 |
| 56 |
90504-ZV5-000 |
WASHER, THRUST (34MM) Price: $10.00 |
| 57 |
90504-ZX2-C00 |
WASHER, MOUNTING STOPPER (UPPER) Price: $25.70 |
| 58 |
90509-ZY3-000 |
WASHER (7/8") Price: $1.62 |
| 59 |
90510-ZY3-000 |
WASHER (25MM) Price: $6.42 |
| 60 |
90511-921-000 |
WASHER, PLAIN (10MM) Price: $1.18 |
| 61 |
90512-ZV4-000 |
WASHER, PLAIN (6MM) Price: $4.16 |
| 63 |
90552-ZV5-000 |
WASHER, PLAIN (12MM) Price: $6.40 |
| 64 |
90559-ZV5-000 |
WASHER, PLAIN (12MM) Price: $4.04 |
| 66 |
90651-ZV5-000 |
CIRCLIP (OUTER) (39MM) Price: $10.76 |
| 67 |
90681-763-A01 |
CLIP, WIRE HARNESS Price: $11.04 |
| 68 |
90951-ZV7-010 |
SEE PART DETAILS - PRI; NIPPLE, GREASE Price: $2.60 |
| 69 |
91256-ZV5-003 |
SEE PART DETAILS - PRI; OIL SEAL (39.5X52X6) (ARAI) Price: $10.68 |
| 70 |
91352-ZV5-000 |
O-RING (15.54X2.26) Price: $2.38 |
| 72 |
94001-12490-0S |
NUT, HEX. (12MM) Price: $2.60 |
| 73 |
94305-30203 |
PIN, SPRING (3X20) Price: $1.62 |
| 74 |
95005-50003-30M |
BULK HOSE, VACUUM (5X3000) (5X250) Price: $30.32 |
