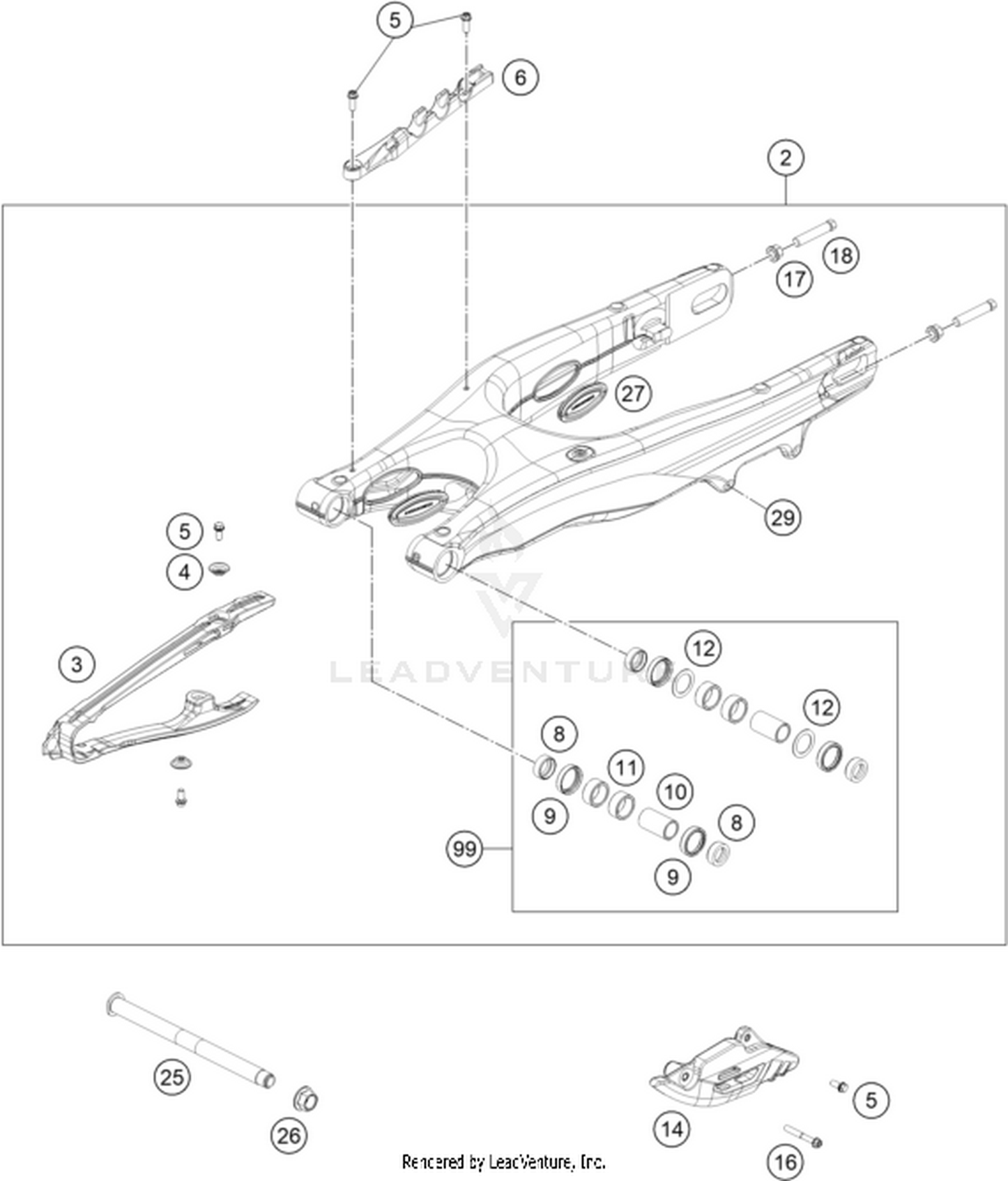

04 SWING ARM
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | A46004230144 | Swingarm cpl Price: Call Us |
| 3 | A46004066100 | Chain slider Price: Call Us |
| 4 | 77304066150 | Chain slider bushing Price: Call Us |
| 5 | 0025060166S | HH collar screw M6x16 TX30 SL Price: Call Us |
| 6 | A46004042000 | Brake line guide Price: Call Us |
| 8 | 77704034000 | Support f. shaft seal ring 16 Price: Call Us |
| 10 | 59404032000 | Bearing sleeve 17x22x38.7 03 Price: Call Us |
| 11 | 0618222812 | Needle bushing HK2212V 22/28/1 Price: Call Us |
| 14 | A46004070000 | Chainguide SX Price: Call Us |
| 16 | 0025060456 | HH COLLAR SCREW M6X45 TX30 Price: Call Us |
| 17 | 58414030000 | HH COLLAR NUT M10X1,25 WS=13 Price: Call Us |
| 25 | A46004037000 | Swingarm pivot Price: Call Us |
| 26 | 54804038000 | Nut with flange M16X1,5 WS=19 Price: Call Us |
| 27 | A46004041000 | Locking cap swingarm Price: Call Us |
| 29 | 54603055051 | PRESS IN NUT M6 STEEL ZINC Price: Call Us |
