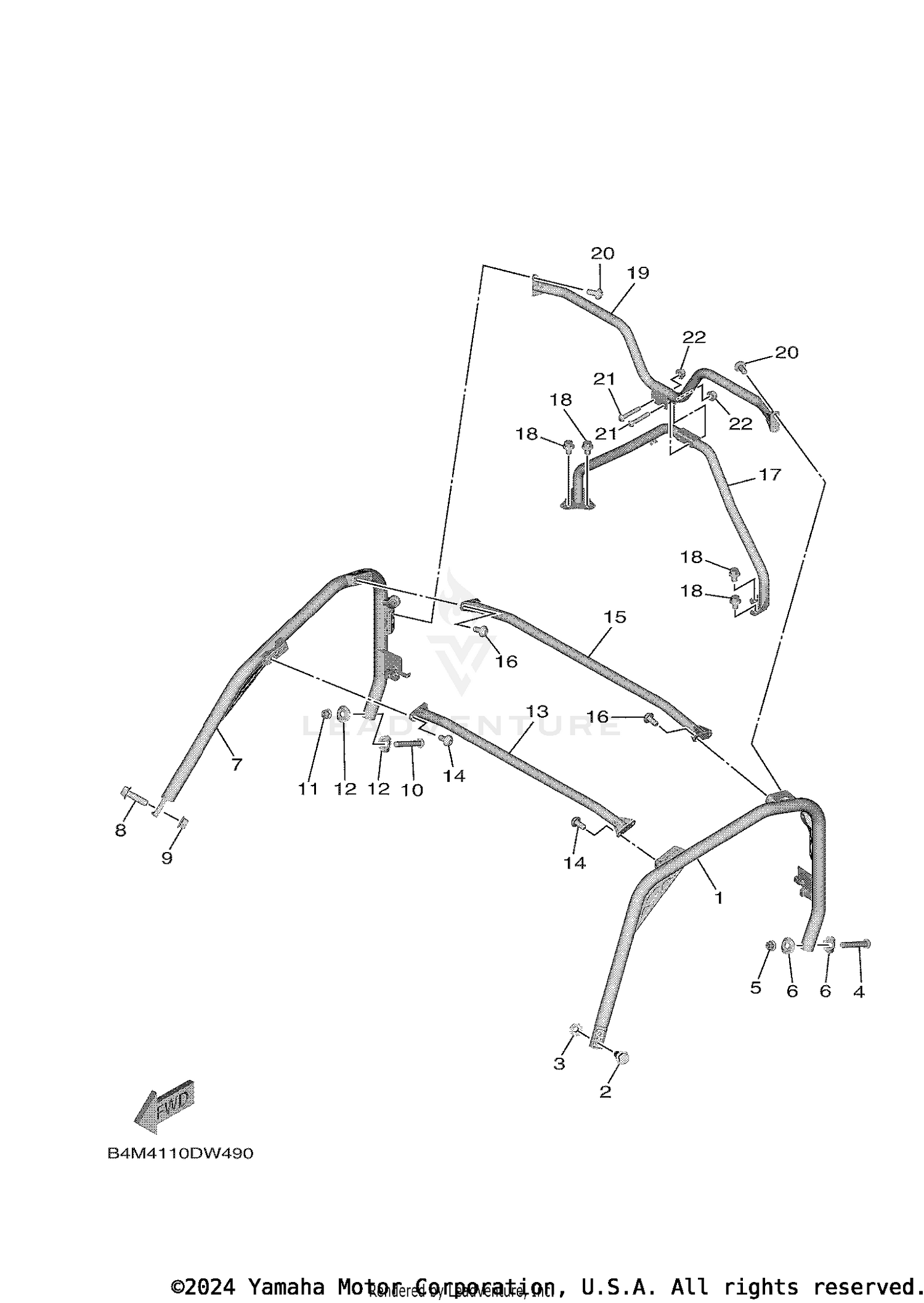

| Ref | Part Number | Description |
|---|
| 1 |
B4M-K831A-00-00 |
SUPPORT, ROOF 3 Price: $132.99 |
| 2 |
95817-12040-00 |
BOLT, FLANGE Price: $4.50 |
| 3 |
90185-12002-00 |
NUT, SELF-LOCKING Price: $13.49 |
| 4 |
92017-10070-00 |
BOLT, BUTTON HEAD Price: $5.49 |
| 5 |
90185-10819-00 |
NUT, SELF-LOCKING Price: $1.25 |
| 6 |
1XD-K7526-00-00 |
WASHER 2 Price: $5.99 |
| 7 |
B4M-K831E-00-00 |
SUPPORT, ROOF 4 Price: $124.99 |
| 8 |
95817-12040-00 |
BOLT, FLANGE Price: $4.50 |
| 9 |
90185-12002-00 |
NUT, SELF-LOCKING Price: $13.49 |
| 10 |
92017-10070-00 |
BOLT, BUTTON HEAD Price: $5.49 |
| 11 |
90185-10819-00 |
NUT, SELF-LOCKING Price: $1.25 |
| 12 |
1XD-K7526-00-00 |
WASHER 2 Price: $5.99 |
| 13 |
B4J-K8392-01-00 |
MEMBER, ROOF FRAME Price: $185.99 |
| 14 |
90111-10802-00 |
BOLT, HEX. SOCKET BUTTON Price: $3.00 |
| 15 |
B4J-K8393-01-00 |
MEMBER, ROOF FRAME 2 Price: $180.99 |
| 16 |
90111-10802-00 |
BOLT, HEX. SOCKET BUTTON Price: $3.00 |
| 17 |
B4M-K830B-00-00 |
ROOF SUPPORT ASSY Price: $289.99 |
| 18 |
95812-10016-00 |
BOLT, FLANGE Price: $10.49 |
| 19 |
B4M-K831M-00-00 |
REINFORCEMENT, ROO Price: $203.99 |
| 20 |
90111-10802-00 |
BOLT, HEX. SOCKET BUTTON Price: $3.00 |
| 21 |
92017-10060-00 |
BOLT, BUTTON HEAD Price: $5.99 |
