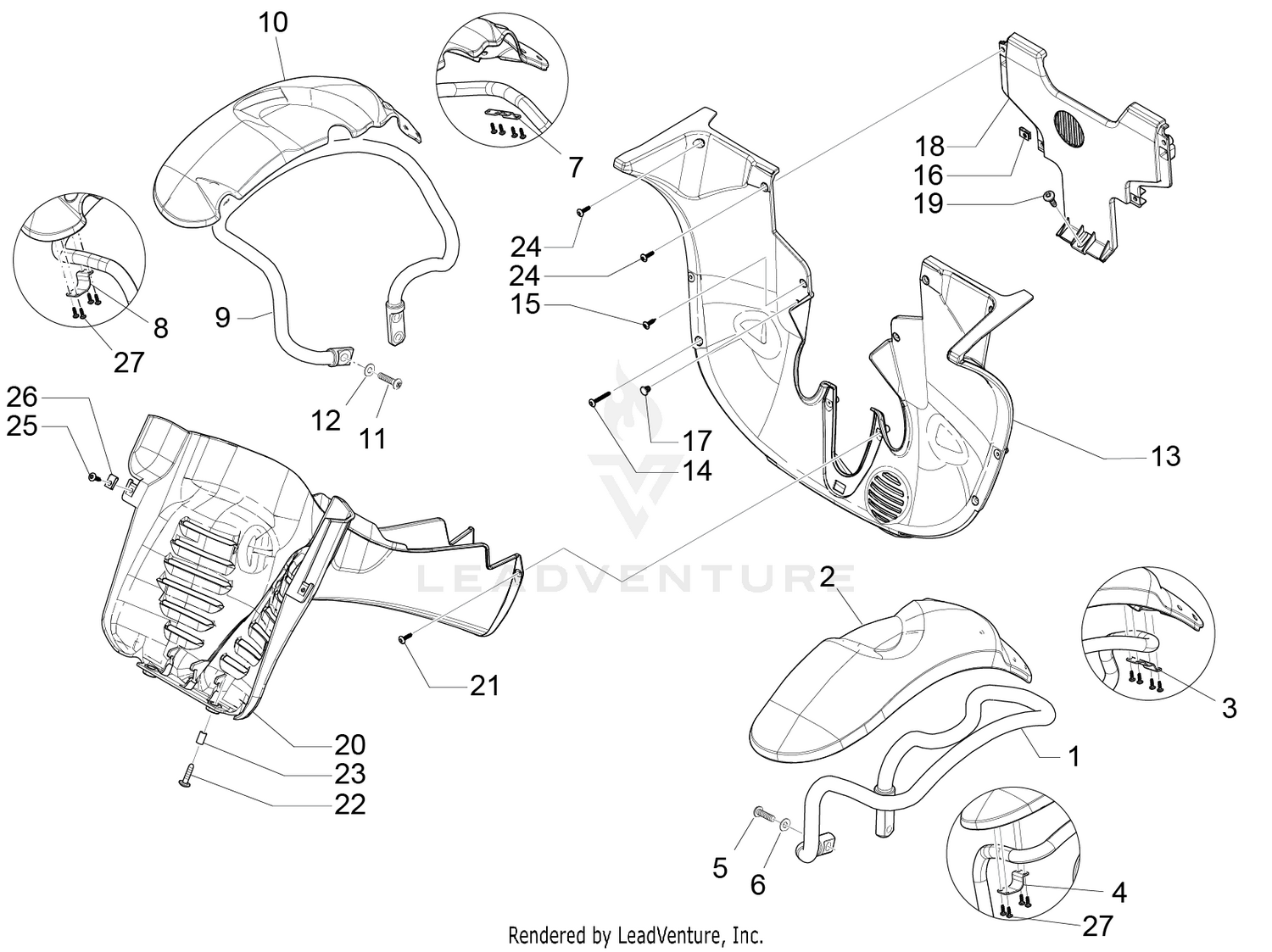

| Ref | Part Number | Description |
|---|
| 1 |
1C000994 |
Left mudguard pipe with U.P. Price: $191.98 |
| 2 |
1B004095 |
Left front mudguard Price: $57.95 |
| 3 |
651271 |
Rear bracket Price: $9.09 |
| 4 |
1C000992 |
Front bracket Price: $6.33 |
| 5 |
564606 |
Hex socket screw Price: $0.21 |
| 6 |
709047 |
Spring washer Price: $0.06 |
| 7 |
651271 |
Rear bracket Price: $9.09 |
| 8 |
1C000992 |
Front bracket Price: $6.33 |
| 9 |
1C000997 |
Right mudguard pipe with U.P. Price: $191.98 |
| 10 |
1B004096 |
Right front mudguard Price: $57.95 |
| 11 |
564606 |
Hex socket screw Price: $0.21 |
| 12 |
709047 |
Spring washer Price: $0.06 |
| 13 |
623255 |
Wheel compartment Price: $59.77 |
| 14 |
CM180703 |
Screw Price: $0.67 |
| 15 |
CM178601 |
Self tapping screw Price: $0.12 |
| 16 |
CM017410 |
Spring plate Price: $0.25 |
| 17 |
090958 |
Cover Price: $3.98 |
| 18 |
672142 |
Wheel housing central part Price: $12.52 |
| 19 |
CM179201 |
Torx head cylinder head screw Price: $0.25 |
| 20 |
1B001210 |
Wheel housing central closing Price: $46.68 |
| 21 |
CM180701 |
Self tapping screw Price: $0.12 |
| 22 |
CM179302 |
Torx head cylinder head screw Price: $0.40 |
| 23 |
1B001259 |
Spacer Price: $2.70 |
| 24 |
CM180701 |
Self tapping screw Price: $0.12 |
| 25 |
CM178603 |
Self tapping screw Price: $0.12 |
| 26 |
CM017410 |
Spring plate Price: $0.25 |
