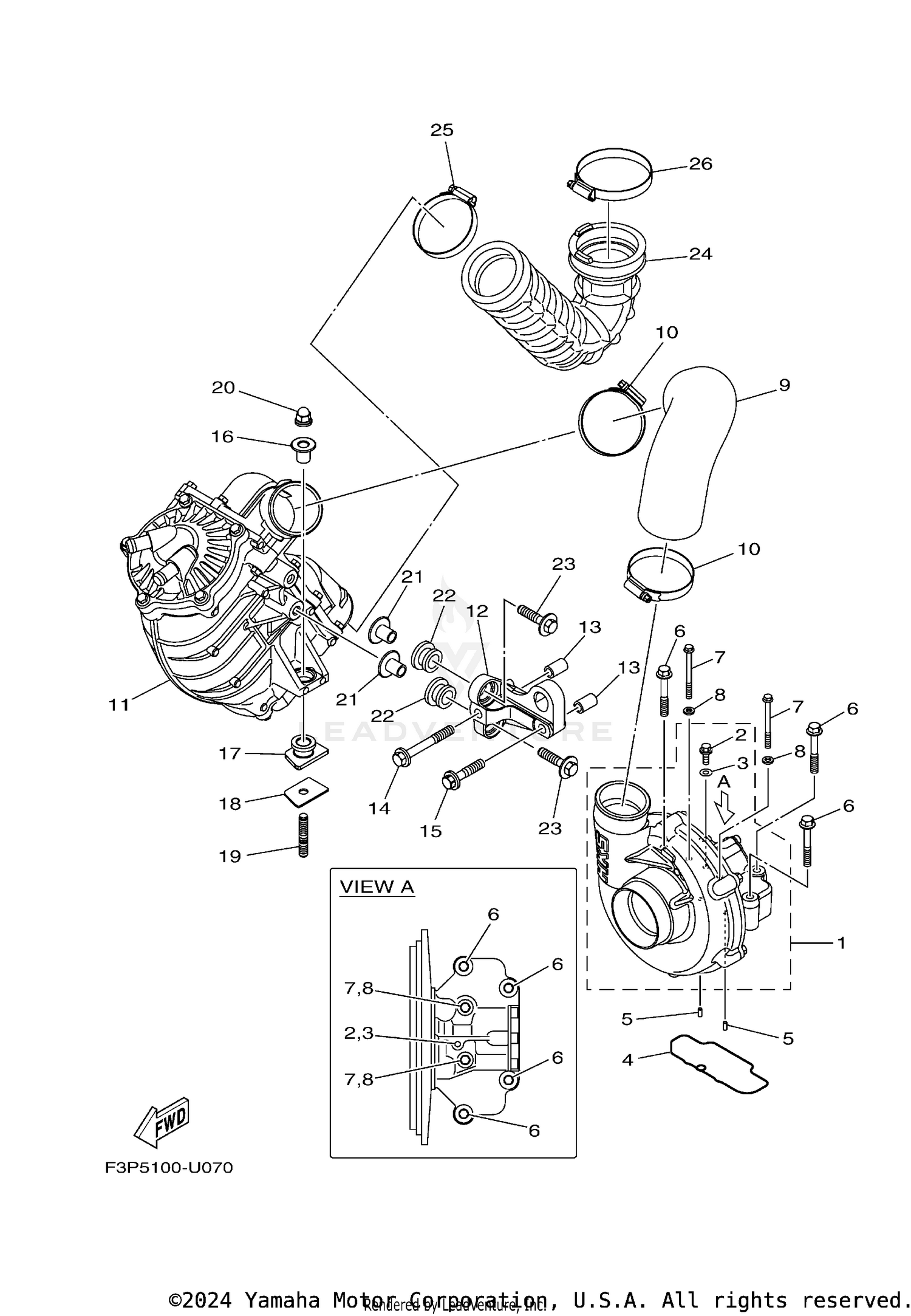

| Ref | Part Number | Description |
|---|
| 1 |
6HL-141A0-04-00 |
SUPER CHARGER ASSY This part replaces 6HL-141A0-00-00. Price: $2,659.99 |
| 2 |
90105-05020-00 |
BOLT, FLANGE Price: $1.49 |
| 3 |
6S5-14199-00-00 |
GASKET Price: $1.99 |
| 4 |
6S5-1416A-00-00 |
O-RING Price: $11.49 |
| 5 |
93604-10M03-00 |
PIN, DOWEL Price: $5.20 |
| 6 |
95814-08055-00 |
BOLT, FLANGE Price: $1.99 |
| 7 |
95024-06065-00 |
BOLT, FLANGE(4EB) Price: $6.49 |
| 8 |
90201-06028-00 |
WASHER, PLATE Price: $2.70 |
| 9 |
6HL-14349-00-00 |
PIPE Price: $147.49 |
| 10 |
90450-75003-00 |
HOSE CLAMP ASSY Price: $29.99 |
| 11 |
6HL-13670-00-00 |
AIR COOLER ASSY. Price: $2,097.99 |
| 12 |
6S5-13691-12-00 |
BRACKET, AIR COOLER Price: $112.99 |
| 13 |
99590-14016-00 |
PIN, DOWEL Price: $4.60 |
| 14 |
90119-10047-00 |
BOLT, WITH WASHER Price: $7.99 |
| 15 |
90119-10046-00 |
BOLT, WITH WASHER Price: $6.99 |
| 16 |
90387-11007-00 |
COLLAR Price: $8.49 |
| 17 |
6S5-14435-01-00 |
GROMMET This part replaces 6S5-14435-00-00. Price: $4.99 |
| 18 |
6S5-14243-01-00 |
PLATE Price: $8.99 |
| 19 |
90116-10044-00 |
BOLT, STUD Price: $11.49 |
| 20 |
90176-10001-00 |
NUT, CROWN Price: $4.49 |
| 21 |
90387-11008-00 |
COLLAR Price: $19.99 |
| 22 |
90480-21M63-00 |
GROMMET Price: $17.49 |
| 23 |
90119-10011-00 |
BOLT, WITH WASHER Price: $6.49 |
| 24 |
6HL-13651-01-00 |
PIPE, BOOST This part replaces 6HL-13651-00-00. Price: $84.99 |
| 25 |
90450-75003-00 |
HOSE CLAMP ASSY Price: $29.99 |
