| Ref | Part Number | Description |
|---|
| 3 |
2707-644 |
Bracket, Mounting - Suspension - Right - Black Price: $31.95 |
| 3 |
2707-645 |
Bracket, Mounting - Suspension - Left - Black Price: $31.95 |
| 4 |
8060-706 |
Rivet Price: $0.46 |
| 5 |
1623-241 |
Rivet Price: $2.05 |
| 6 |
8422-502 |
Nut, Lock Price: $0.48 |
| 7 |
1707-692 |
Bracket, Mounting - Rear Spar - Right - Black Price: $33.95 |
| 7 |
1707-693 |
Bracket, Mounting - Rear Spar - Left - Black Price: $41.95 |
| 8 |
8476-512 |
Screw, Machine Price: $1.45 |
| 9 |
1623-257 |
Rivet Price: $2.30 |
| 10 |
8060-702 |
Rivet - Black Price: $0.35 |
| 11 |
2707-172 |
Support, Running Board - Right - Black Price: $126.95 |
| 11 |
2707-173 |
Support, Running Board - Left - Black Price: $126.95 |
| 12 |
1707-835 |
Tunnel, Rear - Black Price: $237.95 |
| 13 |
8060-504 |
Rivet Price: $0.35 |
| 14 |
1707-725 |
End Cap, Tunnel - Black Price: $41.95 |
| 15 |
8061-706 |
Rivet Price: $1.07 |
| 16 |
1623-762 |
Clamp, Routing Price: $8.43 |
| 17 |
8476-820 |
Screw, Machine Price: $1.08 |
| 18 |
1707-454 |
Support, Footrest - Right Price: $71.95 |
| 18 |
1707-455 |
Support, Footrest - Left Price: $71.95 |
| 19 |
8427-802 |
Nut, Lock Price: $0.58 |
| 20 |
0744-078 |
Kit, Tool Price: $67.66 |
| 21 |
8468-535 |
Screw, Machine Price: $1.07 |
| 22 |
1623-637 |
Clip, U-Nut Price: $2.61 |
| 23 |
1707-556 |
Footrest - Right - Black Price: $31.95 |
| 23 |
1707-557 |
Footrest - Left - Black Price: $31.95 |
| 24 |
8470-516 |
Screw, Machine Price: $0.35 |
| 25 |
1607-306 |
Brace, Support Price: $45.95 |
| 26 |
1607-109 |
Protector, Chain Case Price: $5.90 |
| 27 |
8061-708 |
Rivet Price: $1.08 |
| 28 |
2707-738 |
Protector, Brake Disc Price: $18.13 |
| 29 |
2707-044 |
Shield, Brake Disc - Black Price: $48.95 |
| 30 |
8408-613 |
Screw, Cap Price: $1.66 |
| 31 |
8470-520 |
Screw, Machine Price: $0.48 |
| 32 |
1623-130 |
Rivet Price: $1.80 |
| 33 |
2707-170 |
Roll, Tunnel - Right - Black Price: $83.95 |
| 33 |
2707-171 |
Roll, Tunnel - Left - Black Price: $83.95 |
| 34 |
0630-308 |
Protector, Harness - Taillight Extension Price: $18.13 |
| 35 |
1707-698 |
Gusset, Running Board - Right - Black Price: $30.95 |
| 35 |
1707-699 |
Gusset, Running Board - Left - Black Price: $30.95 |
| 36 |
1707-700 |
Gusset, Tunnel Roll - Right - Black Price: $31.95 |
| 36 |
1707-701 |
Gusset, Tunnel Roll - Left - Black Price: $31.95 |
| 37 |
0630-292 |
Protector, Taillight Harness Price: $16.92 |
| 38 |
0621-990 |
Decal, Reflector - Red Price: $15.42 |
| 39 |
8470-510 |
Screw, Machine Price: $0.71 |
| 40 |
0730-227 |
Bracket, Mounting - Taillight - Black Price: $41.95 |
| 41 |
0609-898 |
Taillight, LED Price: $70.95 |
| 42 |
6606-394 |
Snowflap Price: $109.95 |
| 43 |
5611-852 |
Decal, Warning - Towing (French) Price: $2.54 |
| 44 |
5611-853 |
Decal, Warning - Towing (English) Price: $2.81 |
| 45 |
2707-580 |
Bumper, Rear - Green Price: $109.95 |
| 46 |
8476-620 |
Screw, Machine Price: $0.48 |
| 47 |
8427-602 |
Nut, Hex Price: $0.23 |
| 48 |
6606-615 |
Bag, Belt Price: $49.95 |
| 49 |
2621-984 |
Decal, Tunnel - Right Price: $14.49 |
| 49 |
2621-985 |
Decal, Tunnel - Left Price: $14.49 |
| 50 |
2621-986 |
Decal, Tunnel - Right Price: $24.20 |
| 50 |
2621-987 |
Decal, Tunnel - Left Price: $24.20 |
| 51 |
2621-988 |
Decal, Tunnel - Right Price: $8.43 |
| 51 |
2621-989 |
Decal, Tunnel - Left Price: $8.43 |
| 52 |
2621-990 |
Decal, Tunnel - Right Price: $42.95 |
| 52 |
2621-991 |
Decal, Tunnel - Left Price: $42.95 |
| 53 |
2621-992 |
Decal, Tunnel - Right Price: $8.43 |
| 53 |
2621-993 |
Decal, Tunnel - Left Price: $8.43 |
| 54 |
2621-994 |
Decal, Tunnel - Right Price: $19.35 |
| 54 |
2621-995 |
Decal, Tunnel - Left Price: $19.35 |

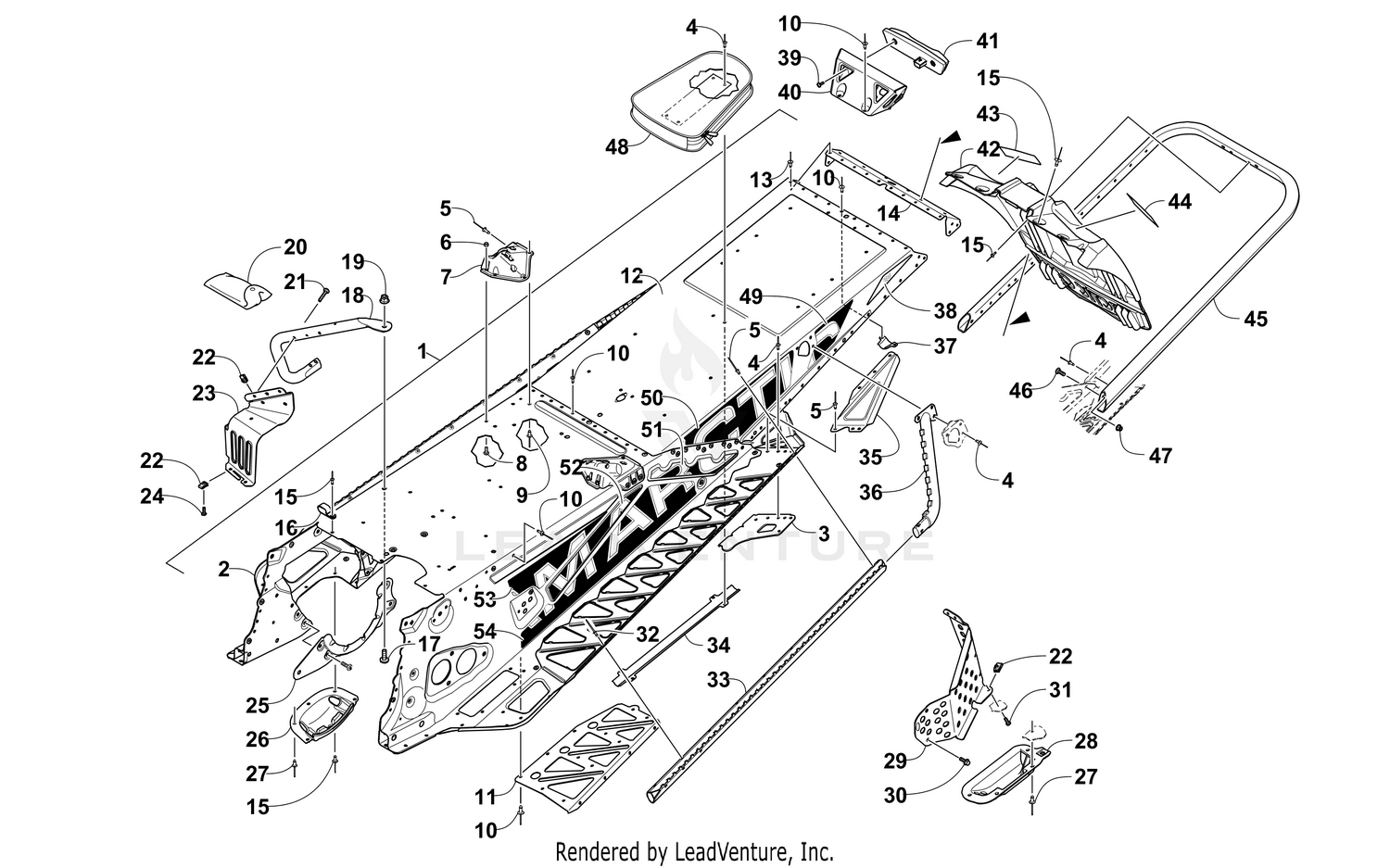

![TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY [102839]](https://cdn.datamanager.arinet.com/image/ARCT/e04e3176-3758-42a9-ab3f-8ceb88df554c/Max)
