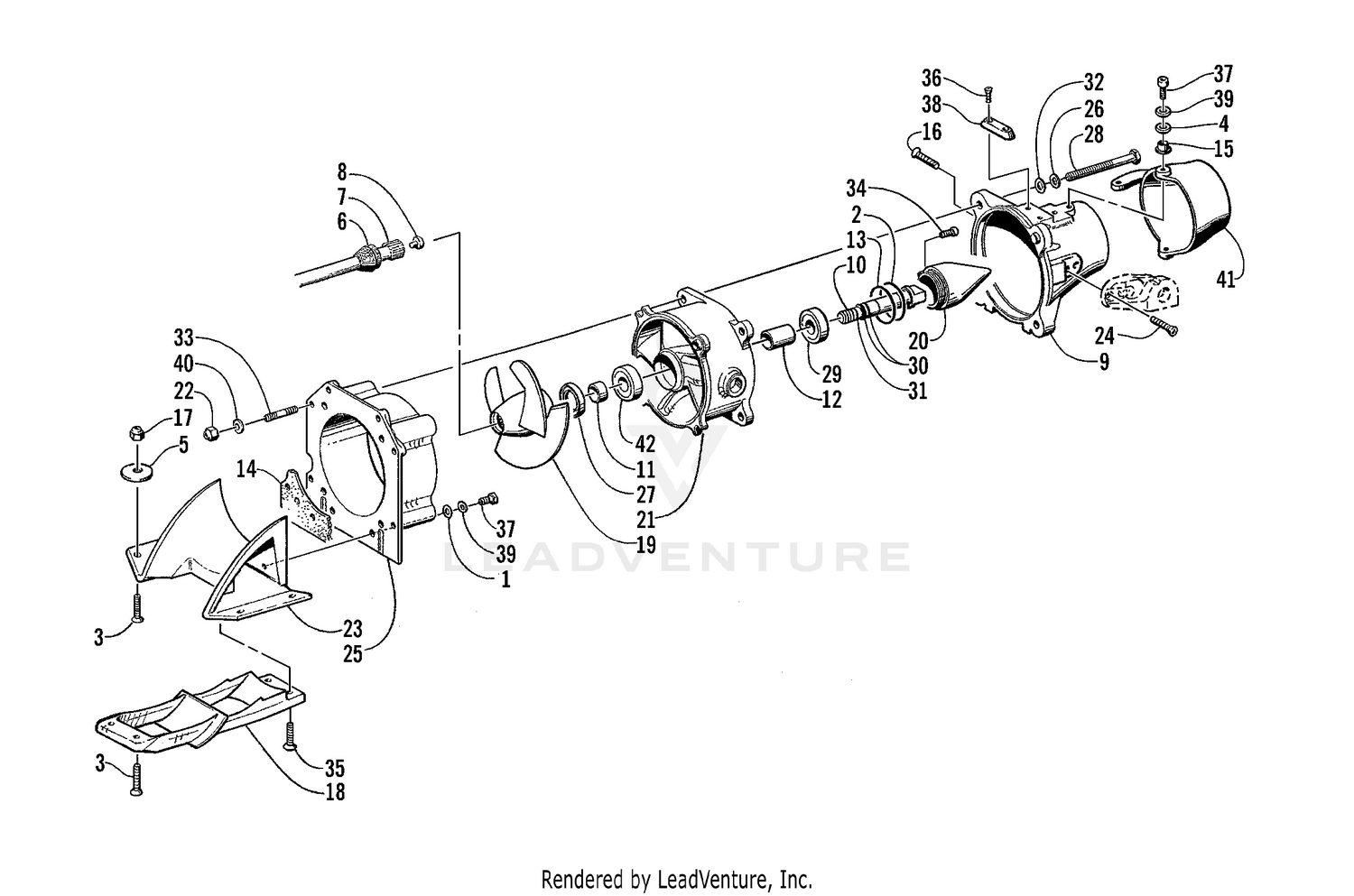

IMPELLER DRIVE ASSEMBLY [54157]

Parts (41)

Ref	Part Number	Description
1	0624-028	Washer Price: $0.32
2	0675-078	O-Ring Price: $0.56
3	0624-186	Screw, Machine Price: $1.69
4	0624-125	WASHER FLAT,FENDER 8MM (SS) Price: $1.29
5	0624-182	Washer Price: $0.41
6	0675-187	Grommet, Seal Price: $3.99
7	0675-240	Driveshaft (1100) Price: $236.29
8	0673-618	Bumper, Driveshaft Price: $3.88
9	0675-254	Venturi (900) Price: $285.07
10	0675-098	Shaft, Rear - Impeller Price: $123.95
11	0675-085	Spacer, Impeller Price: $21.59
12	0675-084	Spacer, Bearing Price: $49.95
13	0675-281	O-Ring (1100) Price: $0.36
14	0675-331	Gasket, Pump Price: $30.49
15	0624-392	Spacer Price: $4.02
16	0624-272	Screw, Machine Price: $1.97
17	0624-250	NUT,LOCK-NSL M6-1.0 SS Price: $0.71
18	0675-239	Grate, Inlet Price: $56.29
19	0675-274	Impeller Price: $682.95
20	0675-272	Endcap, Stator (1100) Price: $82.95
21	0675-329	Stator (1100) Price: $529.95
22	0624-090	Nut, Lock Price: $1.31
23	0675-280	Ramp, Inlet Price: $200.83
24	0624-273	Screw, Machine Price: $1.79
25	0775-134	Ring, Wear Price: $489.95
26	0624-012	Washer, Lock Price: $0.73
27	0637-194	KIT, SEAL,-STATOR Price: $69.95
28	0624-386	Screw, Cap Price: $14.79
29	0673-609	Bearing, Stator Price: $34.95
30	0673-608	O-Ring Price: $0.35
31	0673-607	O-Ring Price: $5.59
32	0624-008	Washer Price: $0.56
33	0624-319	Stud Price: $26.29
34	0624-491	Screw, Cap (1100) Price: $0.35
35	0624-183	Screw, Machine Price: $1.09
36	0624-184	Screw, Machine Price: $1.69
37	0624-026	Screw, Cap Price: $1.31
38	0624-084	Anode, Zinc Price: $22.59
39	0624-027	Washer, Lock Price: $0.35
40	0624-125	WASHER FLAT,FENDER 8MM (SS) Price: $1.29
41	0675-257	Nozzle, Steering Price: $78.29
