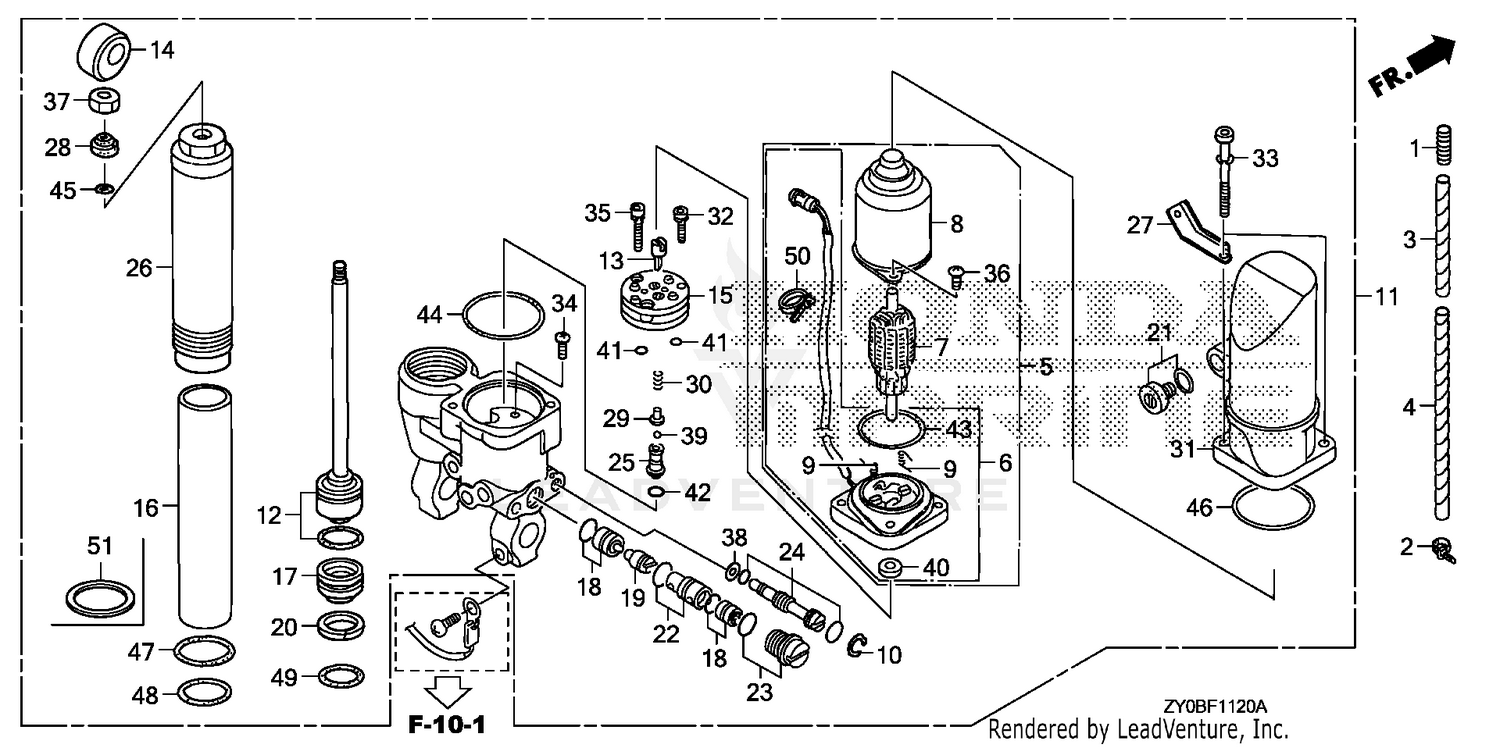

| Ref | Part Number | Description |
|---|
| 1 |
17735-ZY1-870 |
TUBE, CORRUGATE (10MM) Price: $2.30 |
| 2 |
35701-MG9-950 |
BAND (BLACK 3.5X140) Price: $2.50 |
| 3 |
36105-ZW9-003 |
TUBE, SPIRAL B Price: $6.54 |
| 4 |
36105-ZY1-871 |
TUBE, SPIRAL A Price: $8.52 |
| 5 |
36120-ZY1-871 |
MOTOR ASSY., POWER TILT Price: $466.16 |
| 6 |
36122-ZY1-872 |
BRACKET ASSY. Price: $517.50 |
| 7 |
36123-ZY1-871 |
ARMATURE Price: $196.98 |
| 8 |
36129-V15-003 |
YOKE Price: $40.67 |
| 9 |
36136-V15-013 |
SPRING, MOTOR Price: $6.04 |
| 10 |
53549-ZY1-871 |
CIRCLIP (INNER) (16) Price: $3.02 |
| 11 |
56000-ZY1-874 |
TILT ASSY., POWER Price: $1,404.54 |
| 12 |
56110-ZY1-871 |
ROD, PISTON Price: $148.82 |
| 13 |
56113-ZW1-701 |
JOINT, DRIVE Price: $22.48 |
| 14 |
56113-ZY1-871 |
JOINT, METAL Price: $93.82 |
| 15 |
56114-ZY1-871 |
PUMP Price: $307.92 |
| 16 |
56123-ZY1-871 |
CYLINDER Price: $25.78 |
| 17 |
56130-ZY1-871 |
PISTON, FREE Price: $87.82 |
| 18 |
56140-ZV5-822 |
VALVE (B) Price: $148.86 |
| 19 |
56150-ZY1-871 |
SPOOL, VALVE Price: $46.98 |
| 20 |
56151-ZY1-871 |
RING, BACK-UP Price: $10.78 |
| 21 |
56160-V15-003 |
BOLT, PLUG Price: $12.52 |
| 22 |
56161-ZY1-871 |
SLEEVE Price: $57.18 |
| 23 |
56163-ZY1-871 |
PLUG Price: $35.36 |
| 24 |
56170-ZY1-872 |
VALVE, MANUAL Price: $140.28 |
| 25 |
56191-ZY1-871 |
SEAT C, VALVE Price: $41.10 |
| 26 |
56511-ZY1-871 |
TUBE (OUTER) Price: $293.26 |
| 27 |
56517-ZY1-871 |
PLATE, SET Price: $29.90 |
| 28 |
56518-ZY1-872 |
DUST SEAL Price: $11.96 |
| 29 |
56632-ZY1-871 |
GUIDE, SPRING Price: $8.78 |
| 30 |
56764-ZY1-871 |
SPRING C Price: $2.78 |
| 31 |
56851-V15-003 |
RESERVOIR Price: $50.02 |
| 32 |
90103-ZY1-871 |
BOLT, HEX. Price: $3.90 |
| 33 |
90104-ZY1-871 |
BOLT, HEX. Price: $6.76 |
| 34 |
90105-ZY1-871 |
SCREW, PAN Price: $10.30 |
| 35 |
90115-ZV5-821 |
BOLT B, SOCKET Price: $22.44 |
| 36 |
90134-V15-003 |
SCREW, PAN (5X0.8) Price: $4.44 |
| 37 |
90301-ZY1-871 |
NUT, HEX. Price: $7.94 |
| 39 |
90921-766-801 |
BALL, STEEL Price: $3.20 |
| 40 |
91203-ZV5-821 |
OIL SEAL Price: $42.16 |
| 41 |
91304-ZV5-821 |
O-RING (1.5X6.5) Price: $4.70 |
| 42 |
91311-ZV5-822 |
O-RING (1.5X3.5) Price: $3.30 |
| 43 |
91318-V15-003 |
O-RING Price: $6.00 |
| 44 |
91351-V15-003 |
O-RING (2.0X62.5) Price: $11.06 |
| 45 |
91351-ZY1-871 |
O-RING (2.4X12.3) Price: $6.16 |
| 46 |
91352-V15-003 |
O-RING (2.4X66.6) Price: $8.30 |
| 47 |
91352-ZY1-871 |
O-RING (2.0X43.5) Price: $7.72 |
| 48 |
91353-ZY1-871 |
O-RING (2.0X34.5) Price: $7.72 |
| 49 |
91354-ZY1-871 |
O-RING (2.4X27.7) Price: $7.72 |
| 50 |
91541-S0A-003 |
CLIP, HARNESS BAND (145MM) (BLACK) Price: $4.98 |
