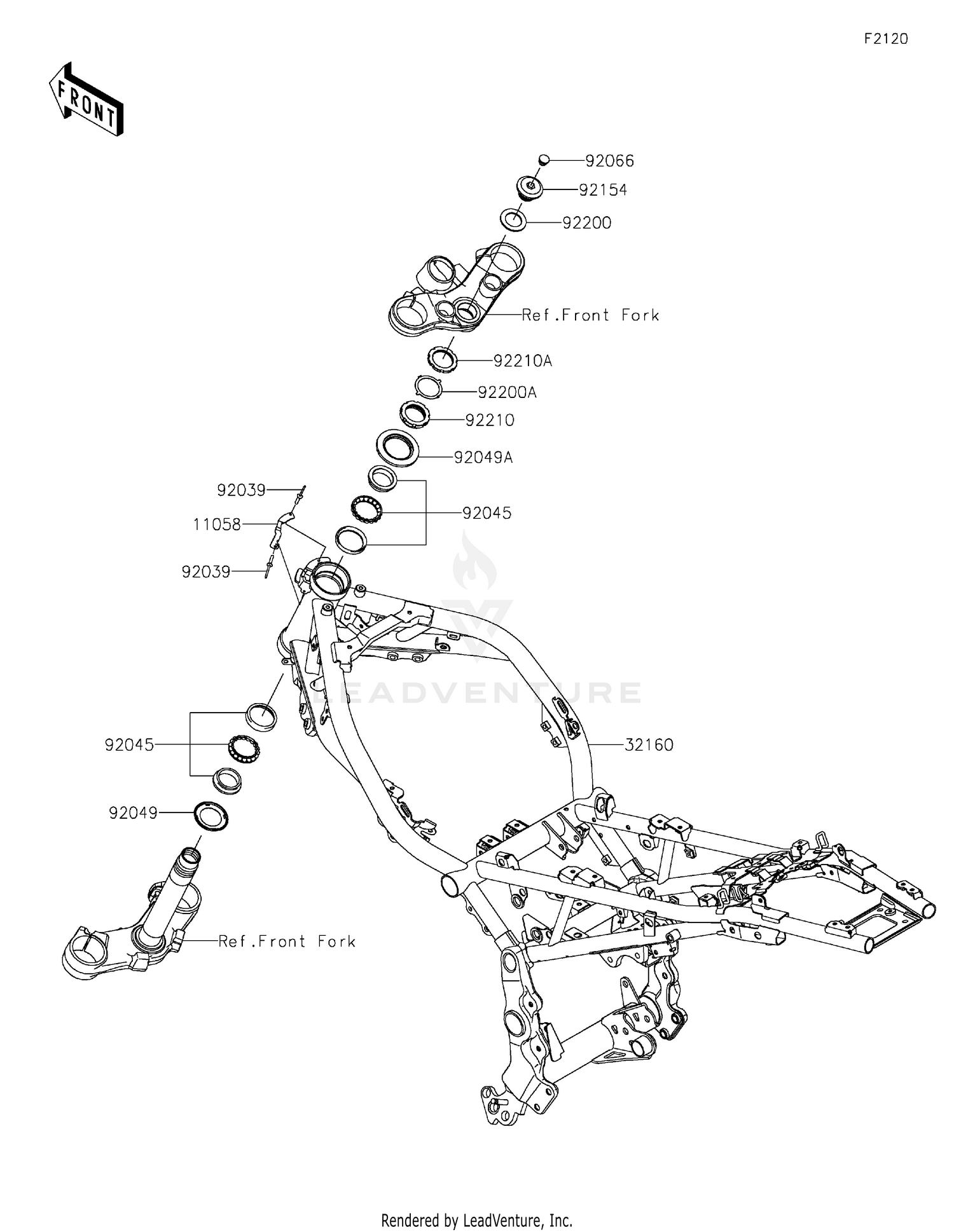

Frame
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 11058 | 11058-4393 | BRACKET Price: $10.24 |
| 32160 | 32160-2071-10 | FRAME-COMP,MAIN,BLACK Price: $1,851.29 |
| 92039 | 92039-0705 | RIVET Price: $0.95 |
| 92045 | 92045-1384 | BEARING-BALL,SF07A17PX1V1 Price: $45.69 |
| 92049 | 92049-0022 | SEAL-OIL,DS35X55X4 Price: $17.39 |
| 92049A | 92049-0131 | SEAL-OIL Price: $21.42 |
| 92066 | 92066-0981 | PLUG Price: $1.47 |
| 92154 | 92154-4351 | BOLT,26MM Price: $28.75 |
| 92200 | 92200-0081 | WASHER,27X42X2.3 Price: $3.74 |
| 92200A | 92200-0281 | WASHER Price: $3.90 |
| 92210 | 92210-0077 | NUT,STEERING STEM,35MM Price: $18.37 |
