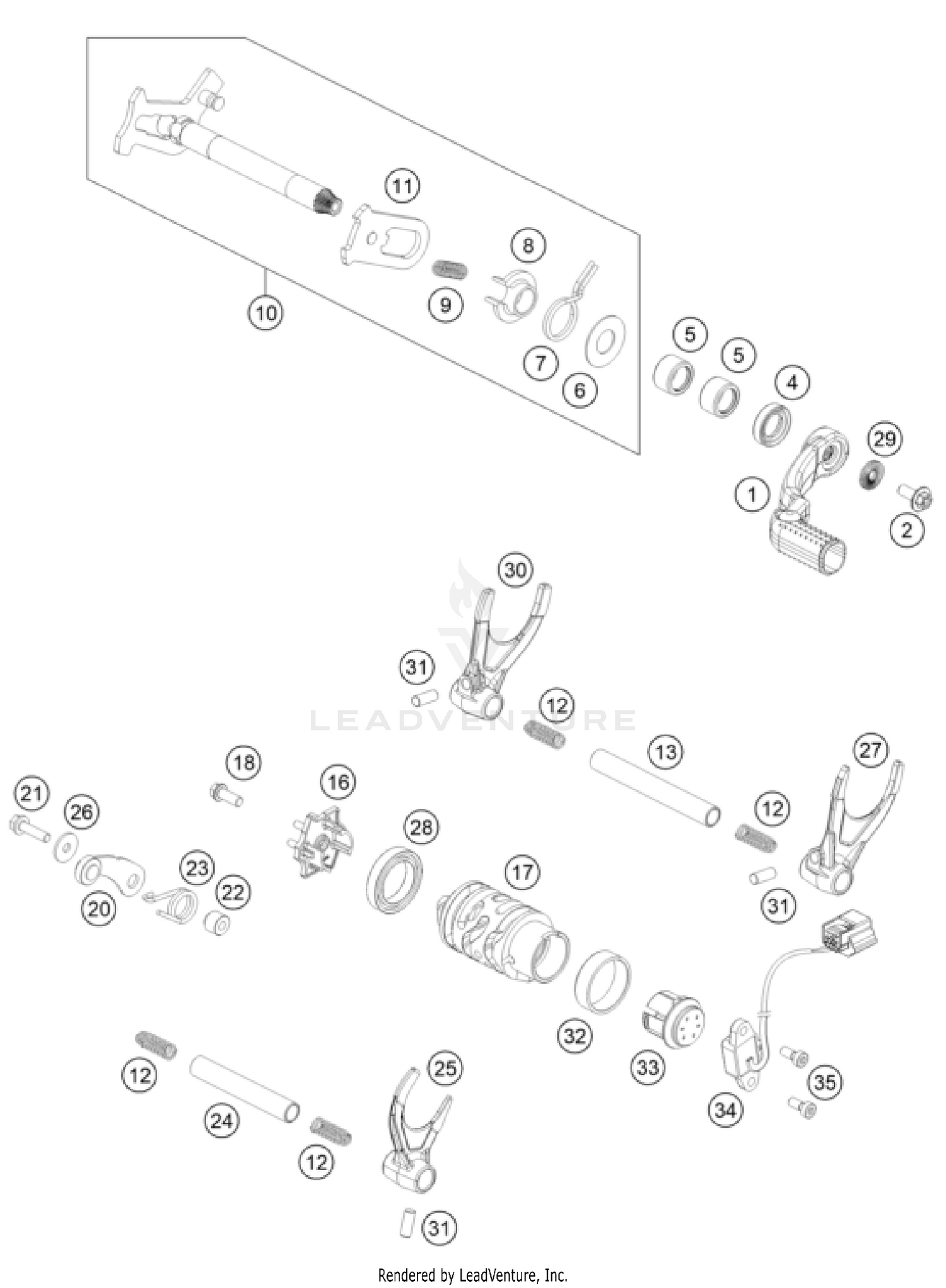

SHIFTING MECHANISM
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 79434031100 | SHIFT LEVER CPL. Price: $116.92 |
| 2 | 0024060156S | HH collar screw M6x15 TX30 Price: $2.99 |
| 6 | 54634050000 | STOP DISK 14X30X1 Price: $2.99 |
| 7 | 54634014100 | RETURN SPRING 2,2MM '95 Price: $7.80 |
| 8 | 54634020000 | SPRING GUIDE Price: $7.58 |
| 9 | 56534013100 | TENSIONING SPRING 0,8MM Price: $1.99 |
| 10 | 79434005233 | Shift shaft cpl. rdy-to-inst Price: $75.12 |
| 11 | 79234008144 | SLIDING PLATE CPL. Price: $41.79 |
| 12 | 58038023400 | Compression spring L=25mm D=0.9mm Price: $1.99 |
| 13 | 79434020000 | GEAR SHIFT RAIL 11,8X91,1MM Price: $16.49 |
| 17 | 79434512300 | Selector drum 6 gear Price: $94.70 |
| 18 | 0012060303S | Cap head screw M6x30-8.8 Price: $1.99 |
| 20 | 78134024044 | LOCKING LEVER CPL. Price: $17.15 |
| 21 | 0025050256S | HH collar screw M5x25 TX30 Price: $1.99 |
| 22 | 54634052300 | SLEEVE FOR LOCKING LEVER Price: $3.99 |
| 23 | 60034023000 | ARRESTING LEVER SPRING 03 Price: $2.99 |
| 24 | 79434019000 | GEAR SHIFT RAIL 11,8X74,5MM Price: $13.85 |
| 25 | 79434001100 | SHIFTING FORK 5TH-6TH GEAR Price: $93.27 |
| 27 | 79434002100 | SHIFTING FORK 2ND-4TH GEAR Price: $93.49 |
| 28 | 0625618050 | BALL BEARING 61805 C3 Price: $51.69 |
| 29 | 50233041500 | PAIR NORDLOCK WASHER M6 Price: $4.99 |
| 30 | 79434003100 | SHIFTING FORK 1ST-3RD GEAR Price: $92.94 |
| 31 | 0402061480 | NEEDLE ROLLER DIN5402 6X14,8 Price: $4.99 |
| 32 | 79234012010 | FRICTION BEARING CONTROLLER Price: $27.05 |
