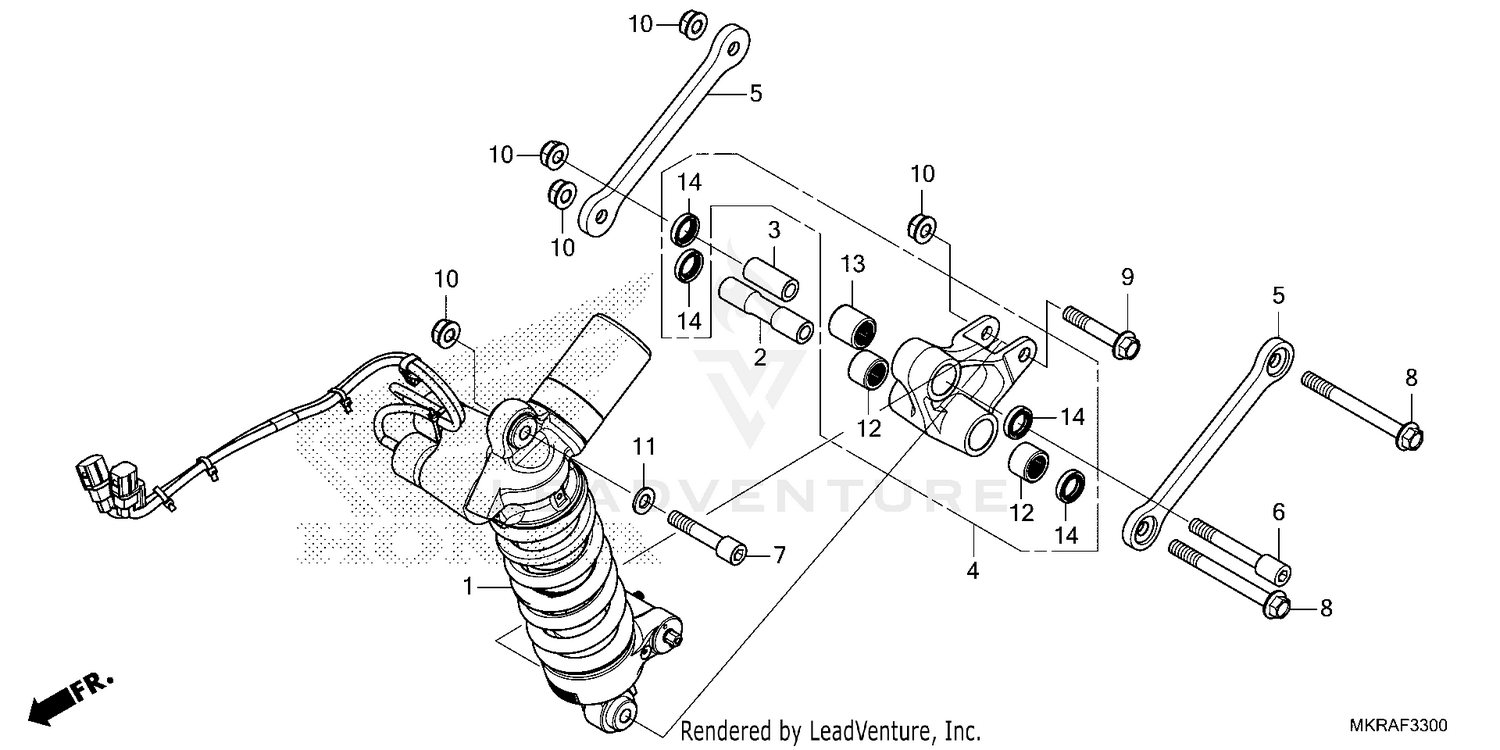

| Ref | Part Number | Description |
|---|
| 1 |
52430-MKR-DH0 |
CUSHION ASSY., RR. Price: $4,061.55 |
| 2 |
52462-MKR-DH0 |
COLLAR Price: $11.85 |
| 3 |
52463-MKR-DH0 |
COLLAR, CUSHION ARM Price: $9.95 |
| 4 |
52465-MKR-D10 |
ARM SUB-ASSY., RR. SHOCK ABSORBER Price: $322.22 |
| 5 |
52471-MKR-DH0 |
PLATE Price: $25.09 |
| 6 |
90107-MFJ-D00 |
BOLT, SOCKET (10X70) Price: $9.20 |
| 7 |
90111-MGS-D30 |
BOLT, SOCKET (10X52) Price: $9.45 |
| 8 |
90121-MKR-DH0 |
BOLT, FLG (10X101) Price: $6.87 |
| 9 |
90123-MKR-D10 |
BOLT, FLANGE (10X56) Price: $3.69 |
| 10 |
90304-GA6-003 |
NUT, AXLE (10MM) Price: $3.29 |
| 11 |
90410-HC4-000 |
WASHER (10MM) Price: $4.80 |
| 12 |
91071-K45-NL1 |
BEARING (17X24X17) Price: $15.11 |
| 13 |
91071-KV3-005 |
BEARING, NEEDLE (KOYO) Price: $30.15 |
