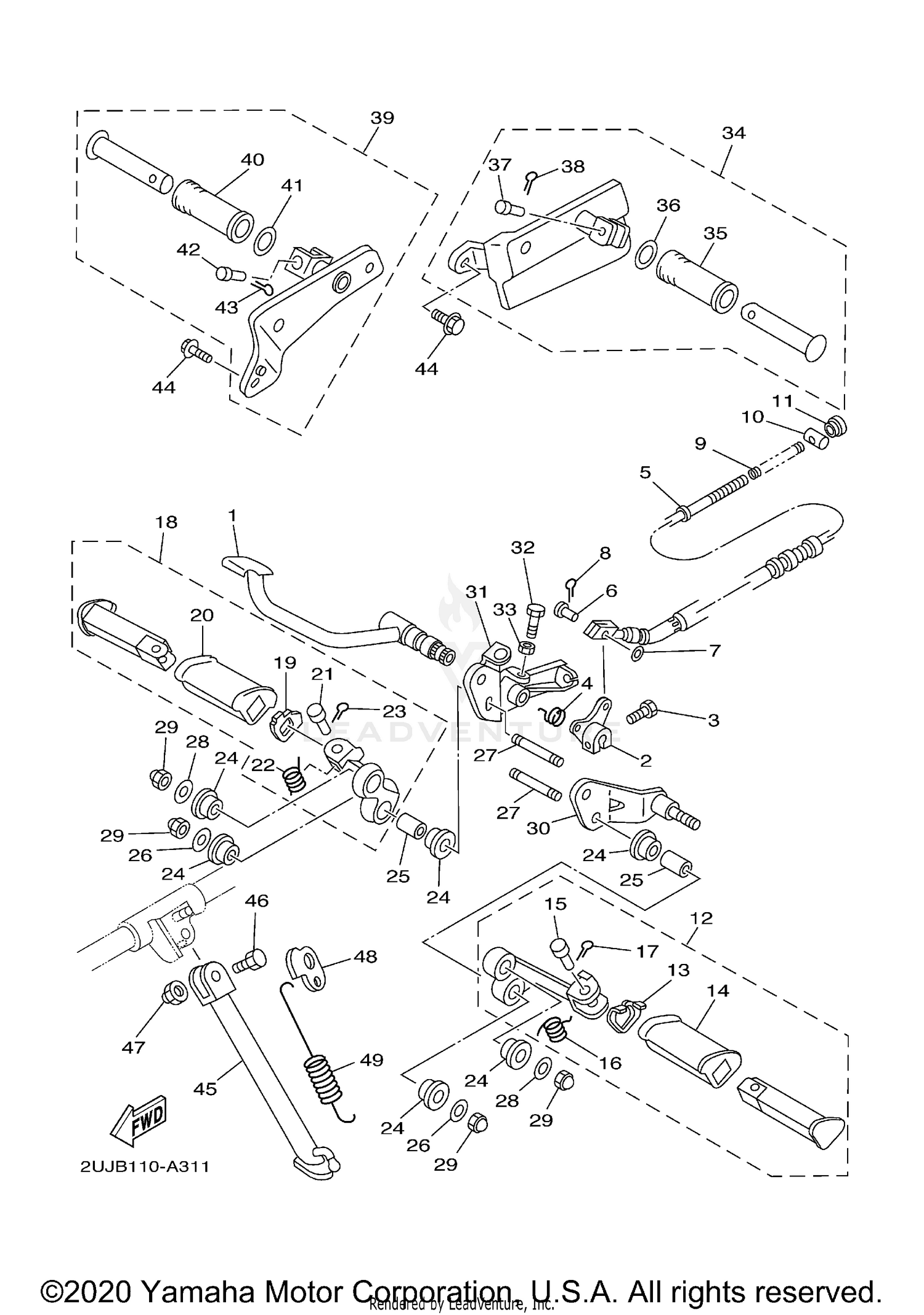

| Ref | Part Number | Description |
|---|
| 1 |
2UJ-27211-01-00 |
PEDAL, BRAKE Price: $122.99 |
| 2 |
2UJ-27262-02-00 |
LEVER Price: $16.99 |
| 3 |
97024-06020-00 |
BOLT Price: $9.49 |
| 4 |
2UJ-27216-00-00 |
SPRING, RETURN Price: $7.49 |
| 5 |
2UJ-26351-00-00 |
CABLE, BRAKE Price: $137.99 |
| 6 |
91701-06018-00 |
PIN, CLEVIS Price: $5.49 |
| 7 |
92907-06200-00 |
WASHER Price: $9.49 |
| 8 |
91490-20015-00 |
PIN. COTTER This part replaces 91401-20012-00. Price: $2.20 |
| 9 |
90501-10245-00 |
SPRING, COMPRESSION Price: $9.49 |
| 10 |
90249-12008-00 |
PIN, SPECIAL SHAPE Price: $9.49 |
| 11 |
90179-06411-00 |
NUT, SPECIAL SHAPE Price: $9.49 |
| 12 |
2UJ-27410-00-00 |
FRONT FOOTREST ASSY (LEFT) Price: $192.99 |
| 13 |
4X7-27417-00-00 |
WASHER, FOOTREST Price: $6.49 |
| 14 |
4X7-27413-00-00 |
COVER, FOOTREST Price: $36.99 |
| 15 |
91701-08038-00 |
PIN This part replaces 90240-08084-00. Price: $4.45 |
| 16 |
90508-20023-00 |
SPRING, TORSION Price: $4.25 |
| 17 |
91490-25020-00 |
PIN. COTTER This part replaces 91401-25015-00. Price: $3.45 |
| 18 |
2UJ-27420-00-00 |
FRONT FOOTREST ASSY (RIGHT) Price: $105.99 |
| 19 |
4X7-27417-00-00 |
WASHER, FOOTREST Price: $6.49 |
| 20 |
4X7-27413-00-00 |
COVER, FOOTREST Price: $36.99 |
| 21 |
91701-08038-00 |
PIN This part replaces 90240-08084-00. Price: $4.45 |
| 22 |
90508-20023-00 |
SPRING, TORSION Price: $4.25 |
| 23 |
91490-25020-00 |
PIN. COTTER This part replaces 91401-25015-00. Price: $3.45 |
| 24 |
2UJ-27414-00-00 |
DAMPER, FOOTREST Price: $9.49 |
| 25 |
90387-100V6-00 |
COLLAR Price: $1.85 |
| 26 |
90201-100A1-00 |
WASHER, PLATE Price: $9.49 |
| 27 |
90116-10519-00 |
BOLT, STUD Price: $2.90 |
| 28 |
90201-100A1-00 |
WASHER, PLATE Price: $9.49 |
| 29 |
95380-10800-00 |
NUT This part replaces 95304-10800-00. Price: $16.10 |
| 32 |
90153-06008-00 |
SCREW, HEXAGON Price: $8.49 |
| 33 |
95317-06700-00 |
NUT This part replaces 95307-06700-00. Price: $9.49 |
| 35 |
120-27433-00-00 |
COVER, REAR FOOTREST Price: $9.49 |
| 36 |
90201-20279-00 |
WASHER, PLATE Price: $9.49 |
| 37 |
91701-06032-00 |
PIN, CLEVIS Price: $10.49 |
| 38 |
91490-20015-00 |
PIN. COTTER This part replaces 91401-20012-00. Price: $2.20 |
| 40 |
120-27433-00-00 |
COVER, REAR FOOTREST Price: $9.49 |
| 41 |
90201-20279-00 |
WASHER, PLATE Price: $9.49 |
| 42 |
91701-06032-00 |
PIN, CLEVIS Price: $10.49 |
| 43 |
91490-20015-00 |
PIN. COTTER This part replaces 91401-20012-00. Price: $2.20 |
| 44 |
95024-08020-00 |
BOLT, FLANGE (SMALL HEAD) Price: $9.49 |
| 45 |
2UJ-27311-01-00 |
STAND, SIDE Price: $92.99 |
| 46 |
90109-104E6-00 |
BOLT This part replaces 90109-10474-00. Price: $10.49 |
| 47 |
90185-10037-00 |
NUT, SELF-LOCKING Price: $10.49 |
| 48 |
3VD-27315-00-00 |
LINK, SIDE STAND This part replaces 2KT-27315-00-00. Price: $8.49 |
