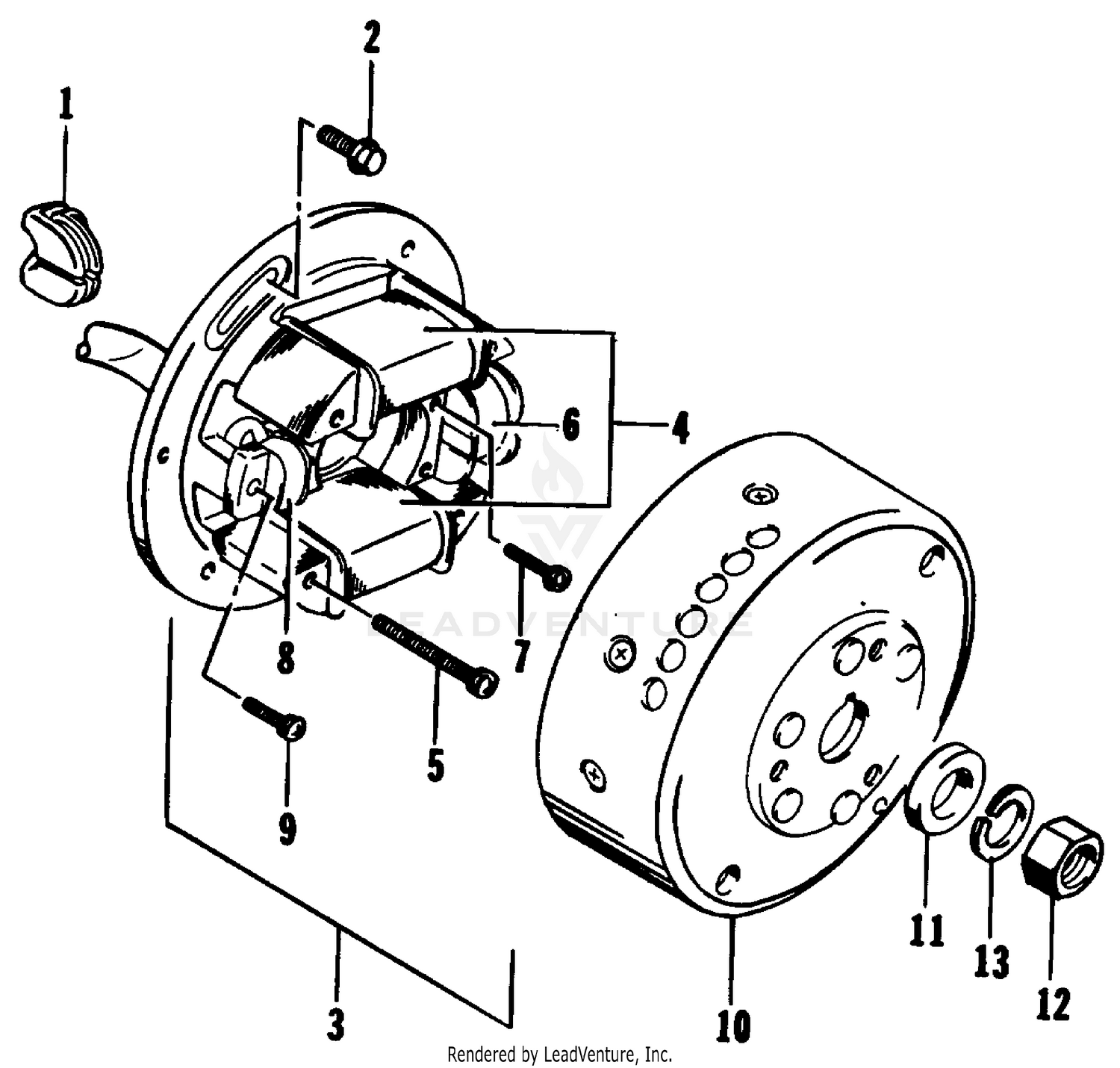

MAGNETO [58005]
![MAGNETO [58005]](https://cdn.datamanager.arinet.com/image/ARCT/9ebf90ff-0bce-482b-a93c-31889be58779/Max)
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3005-918 | GROMMET, MAGNETO LEAD WIRE Price: $5.06 |
| 2 | 3003-672 | BOLT Price: $0.49 |
| 3 | 3005-560 | STATOR Price: $720.95 |
| 6 | 3003-774 | COIL,CHARGE Price: $358.95 |
| 7 | 3004-379 | Screw Price: $4.26 |
| 8 | 3003-694 | COIL, IGNITION TIMING Price: $372.95 |
| 9 | 3005-572 | SCREW,M4X20 Price: $2.24 |
| 10 | 3003-690 | Rotor/Flywheel Price: $753.95 |
| 11 | 3005-175 | Washer Price: $1.09 |
| 12 | 3007-556 | Nut Price: $2.29 |
