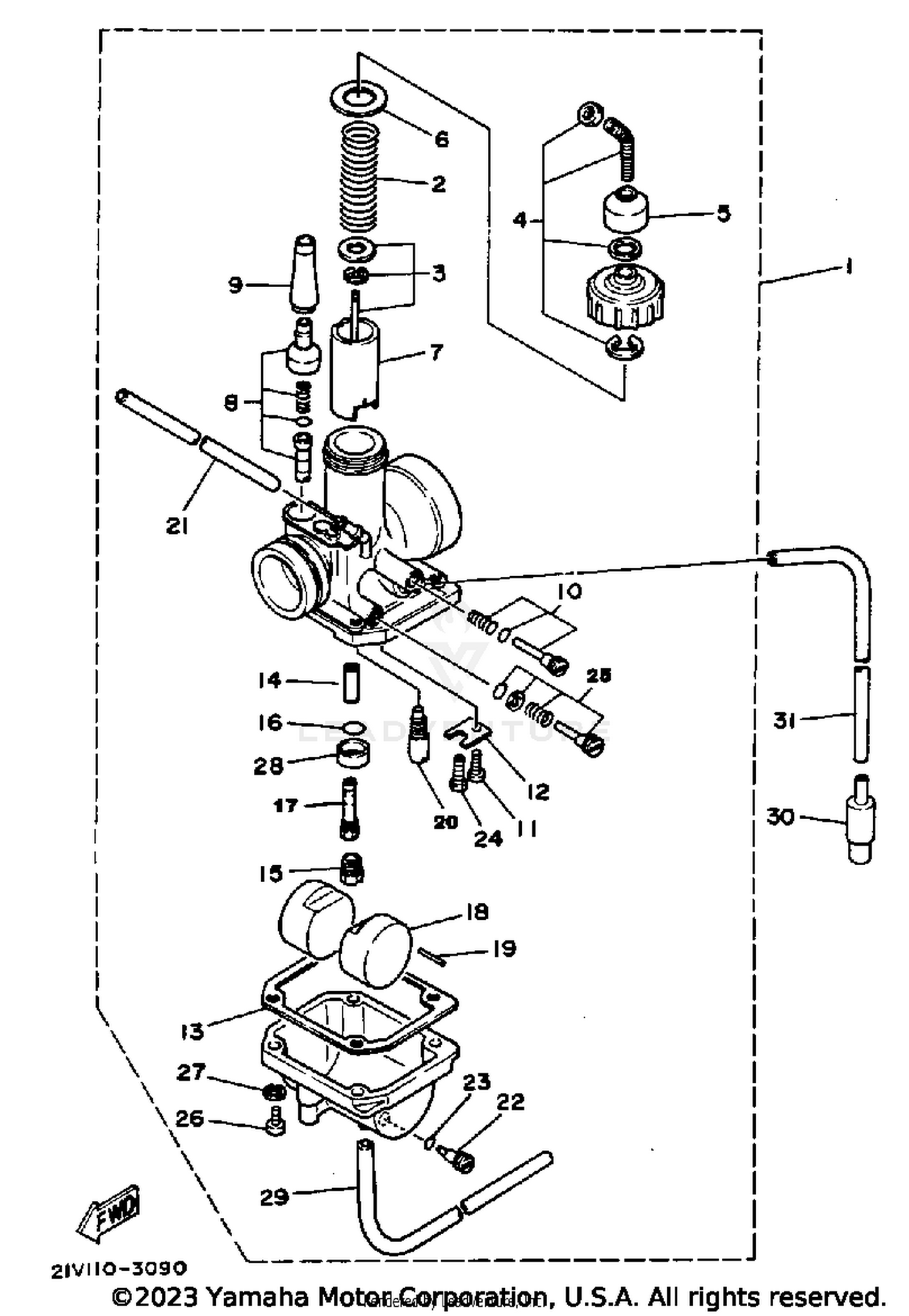

CARBURETOR YTM200K
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 21V-14101-00-00 | CARBURETOR ASSY 1 Price: $409.99 |
| 2 | 21V-14131-00-00 | SPRING, THROTTLE VALVE Price: $10.99 |
| 3 | 21V-1490J-00-00 | NEEDLE SET Price: $39.99 |
| 4 | 10X-14106-00-00 | CABLE ADJUST SCREW SET Price: $43.99 |
| 5 | 3X3-14169-00-00 | CAP This part replaces 1M1-14169-00-00. Price: $17.99 |
| 6 | 4U5-14126-00-00 | GASKET Price: $14.49 |
| 7 | 21V-14112-35-00 | VALVE,THROTTLE 1 Price: $83.99 |
| 8 | 21V-1410A-00-00 | STARTER SET Price: $115.99 |
| 16 | 583-14561-00-00 | O-RING Price: $5.99 |
| 17 | 21V-14148-00-00 | JET, HOLDER Price: $24.99 |
| 18 | 21V-14185-00-00 | FLOAT Price: $76.99 |
| 19 | 127-14186-00-00 | PIN, FLOAT Price: $6.75 |
| 20 | 21V-14190-20-00 | NEEDLE VALVE ASSY Price: $16.49 |
| 21 | 90445-084A7-00 | HOSE Price: $8.49 |
| 22 | 2L1-14191-00-00 | PLUG, DRAIN Price: $32.99 |
| 23 | 214-14147-00-00 | O-RING Price: $8.49 |
| 24 | 3H1-14142-25-00 | JET, PILOT #25 Price: $5.99 |
