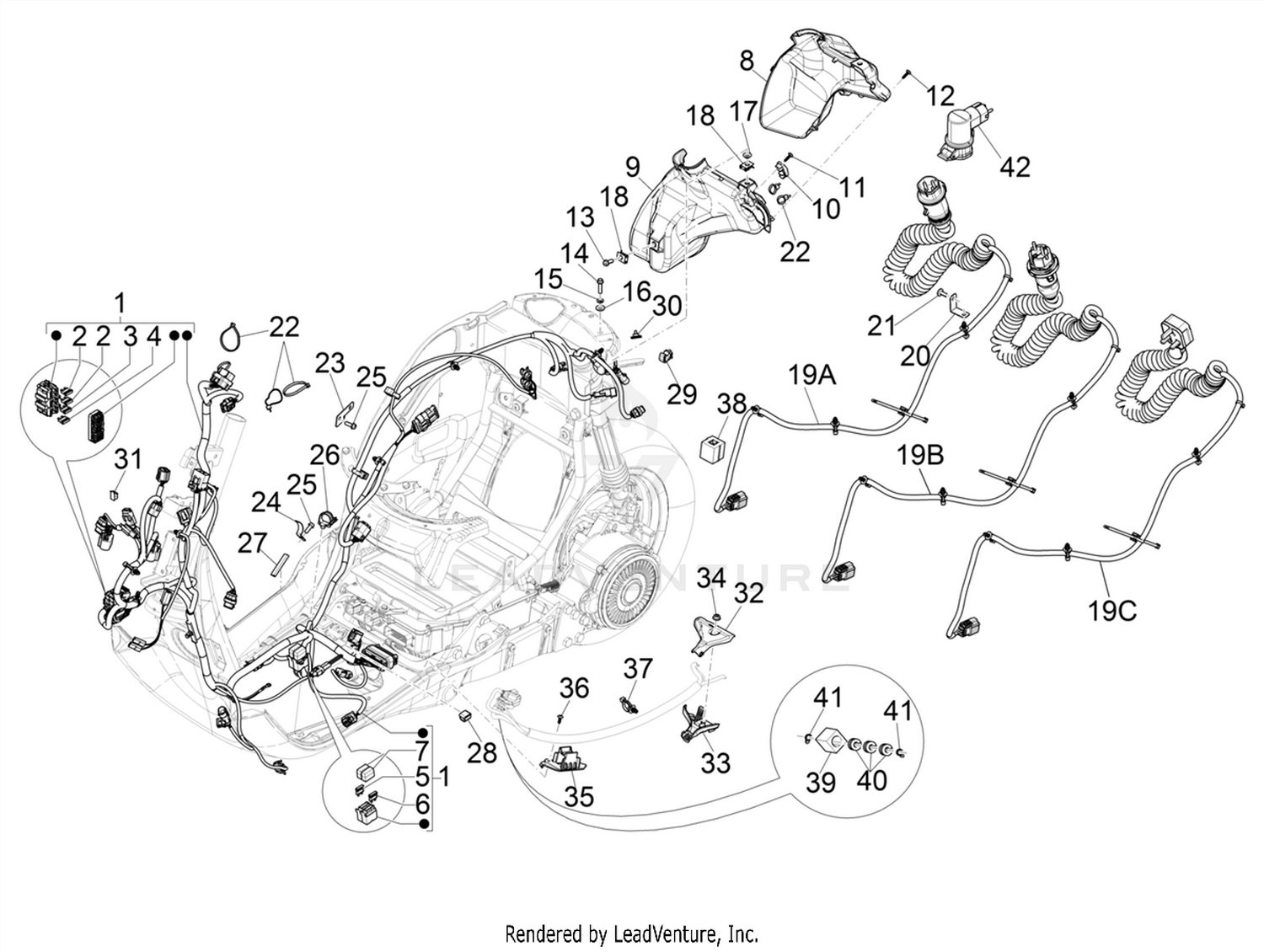

| Ref | Part Number | Description |
|---|
| 1 |
1D002096 |
Cable harness Price: $292.75 |
| 2 |
582930 |
Reed fuse Price: $3.20 |
| 3 |
291499 |
Reed fuse 4a Price: $3.98 |
| 4 |
252945 |
Reed fuse Price: $0.31 |
| 5 |
290860 |
Fuse Price: $4.18 |
| 6 |
292507 |
Reed fuse Price: $0.31 |
| 7 |
290404 |
Cover Price: $0.31 |
| 8 |
1B004501 |
Upper Cover for Recharge Plug Price: $23.91 |
| 9 |
1B004502 |
Lower Cover for Recharge Plug Price: $8.37 |
| 10 |
1B004540 |
Fastener cable Price: $2.70 |
| 11 |
CM180701 |
Self tapping screw Price: $0.12 |
| 12 |
CM180701 |
Self tapping screw Price: $0.12 |
| 13 |
B016777 |
Flanged hexagon screw Price: $0.12 |
| 14 |
874549 |
Flanged hexagon screw Price: $0.25 |
| 15 |
016406 |
Spring washer Price: $0.25 |
| 16 |
013880 |
Flat washer Price: $0.06 |
| 17 |
830056 |
Knurled bushing Price: $0.25 |
| 18 |
254485 |
Spring plate Price: $0.25 |
| 19A |
1D001863 |
AC grid cable Price: $368.92 |
| 19B |
1D0027725 |
AC grid cable Price: $355.58 |
| 19C |
1D002921 |
AC grid cable Price: $374.47 |
| 20 |
1B005548 |
Cable holder bracket Price: $2.96 |
| 21 |
CM179301 |
Torx head cylinder head screw Price: $0.18 |
| 22 |
145298 |
Lock-strap Price: $0.06 |
| 23 |
1D000228 |
Bracket Price: $3.98 |
| 24 |
1D000071 |
Hose clamp Price: $2.18 |
| 25 |
B016777 |
Flanged hexagon screw Price: $0.12 |
| 26 |
CM006908 |
Non return spring Price: $0.37 |
| 27 |
583282 |
Guard Price: $5.69 |
| 28 |
1D001098 |
Instrument support Price: $2.96 |
| 29 |
CM013201 |
Spring Price: $0.31 |
| 30 |
639560 |
Spring for connector Price: $0.49 |
| 31 |
584520 |
Connector spring Price: $4.18 |
| 32 |
1B005497 |
Wiring harness support Price: $2.96 |
| 33 |
1B005496 |
Wiring harness support Price: $2.96 |
| 34 |
969224 |
Nut Price: $0.31 |
| 35 |
1B005488 |
Routing support Price: $5.69 |
| 36 |
CM178603 |
Self tapping screw Price: $0.12 |
| 37 |
1D001143 |
Wiring clip Price: $0.25 |
| 38 |
1D002780 |
Nucleo EMI Price: $22.77 |
| 39 |
641814 |
Nucleo EMI Price: $20.00 |
| 40 |
576565 |
Cylindrical cable grommet Price: $0.31 |
| 41 |
191117 |
Hose clamp Price: $2.70 |
