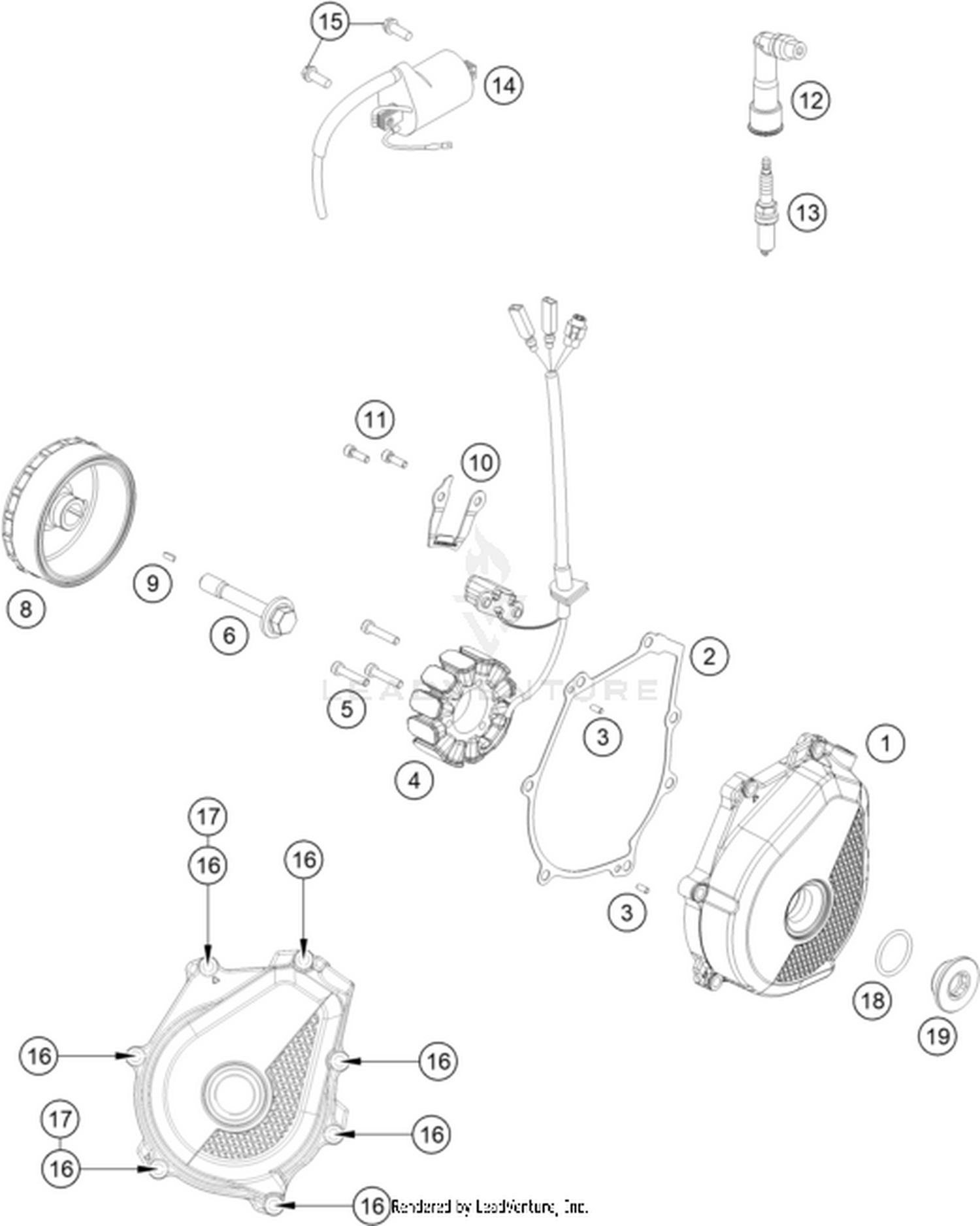

39 IGNITION SYSTEM
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A48030502000C1 | Ignition cover Price: Call Us |
| 2 | A48030040000 | Ignition cover gasket Price: Call Us |
| 3 | 0402040980 | Needle roll.DIN5402 NRB 4X9.8 Price: Call Us |
| 4 | 79239104100 | Stator Price: Call Us |
| 5 | 0012050303S | Cap head screw DIN 6912 - M5x3 Price: Call Us |
| 6 | 77339010100 | FLYWHEEL SCREW Price: Call Us |
| 8 | 78039205100 | Rotor Price: Call Us |
| 9 | 0888030037 | WOODRUFF KEY DIN6888-3X3,7 Price: Call Us |
| 10 | A46030502050 | Cable retainer Price: Call Us |
| 11 | 0912050163S | Cap head screw DIN912 - M5x16 Price: Call Us |
| 12 | 79539190000 | Spark plug connector Price: Call Us |
| 13 | 79739093000 | Spark plug Price: Call Us |
| 14 | 58439006000 | Ignition coil Price: Call Us |
| 15 | 0025060206 | HH collar screw M6x20 TX30 Price: Call Us |
| 16 | 0025060256 | HH collar screw M6x25 TX30 Price: Call Us |
| 17 | 0603061001 | CU-SEAL RING DIN7603-6X10X1 Price: Call Us |
