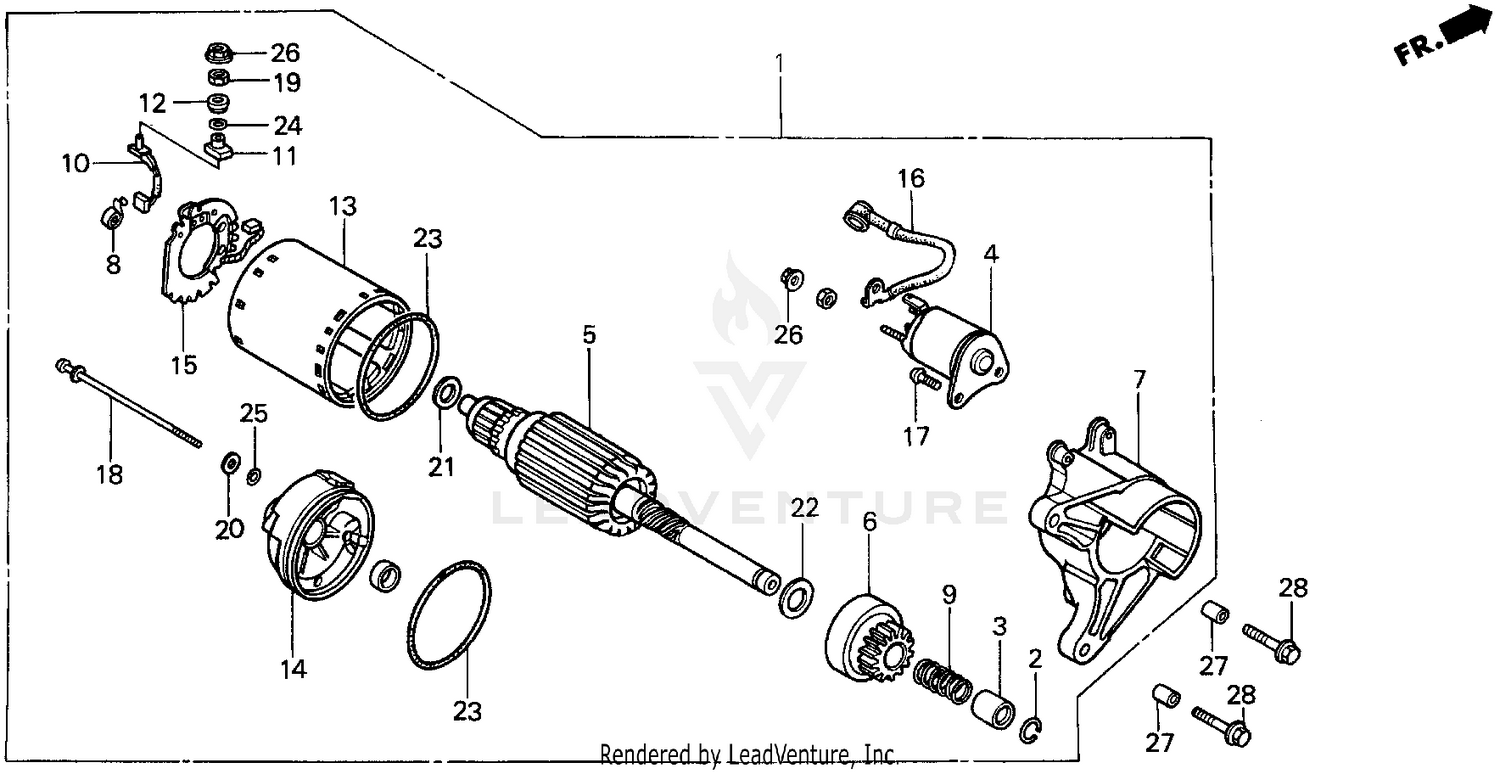

| Ref | Part Number | Description |
|---|
| 1 |
31200-889-831 |
MOTOR ASSY., STARTER Price: Call Us |
| 2 |
31201-ZA1-003 |
RING, SNAP Price: $2.36 |
| 3 |
31202-ZA1-003 |
COLLAR, CLUTCH Price: $19.52 |
| 4 |
31204-ZA0-003 |
SEE PART DETAILS - PRI; CONTACTOR ASSY. Price: $145.16 |
| 5 |
31206-ZA1-003 |
ARMATURE Price: $202.53 |
| 6 |
31207-ZA1-003 |
CLUTCH, OVERRUNNING Price: $179.94 |
| 7 |
31208-ZA1-013 |
HOUSING, DRIVE SIDE Price: $126.34 |
| 8 |
31212-ZA0-700 |
SPRING, BRUSH Price: $10.02 |
| 9 |
31212-ZA1-003 |
SPRING Price: $6.12 |
| 10 |
31215-ZA1-013 |
BRUSH Price: $13.50 |
| 11 |
31216-ZA1-013 |
BUSHING, INSULATION Price: $8.30 |
| 12 |
31217-ZA1-013 |
BUSHING, INSULATION Price: $13.44 |
| 13 |
31218-ZA1-013 |
YOKE Price: $144.06 |
| 14 |
31219-ZA1-013 |
FRAME, STARTER END Price: $57.79 |
| 15 |
31231-ZA1-003 |
PLATE, BRUSH HOLDER This part replaces 31206-HA0-004. Price: $33.30 |
| 16 |
31232-889-831 |
WIRE, WATER COVER Price: $12.78 |
| 17 |
90101-ZA1-003 |
SEE PART DETAILS - SUP; BOLT Price: Call Us |
| 19 |
90202-ZA1-003 |
NUT Price: $3.32 |
| 21 |
90402-ZA1-003 |
SEE PART DETAILS - SUP; WASHER Price: Call Us |
| 22 |
90403-ZA1-003 |
WASHER Price: $3.24 |
| 23 |
31212-HA0-682 |
O-RING Price: $4.08 |
| 24 |
91302-ZA1-013 |
O-RING Price: $2.46 |
| 25 |
91303-ZA1-003 |
O-RING Price: $3.30 |
| 27 |
94301-10160 |
PIN A, DOWEL (10X16) Price: $3.10 |
