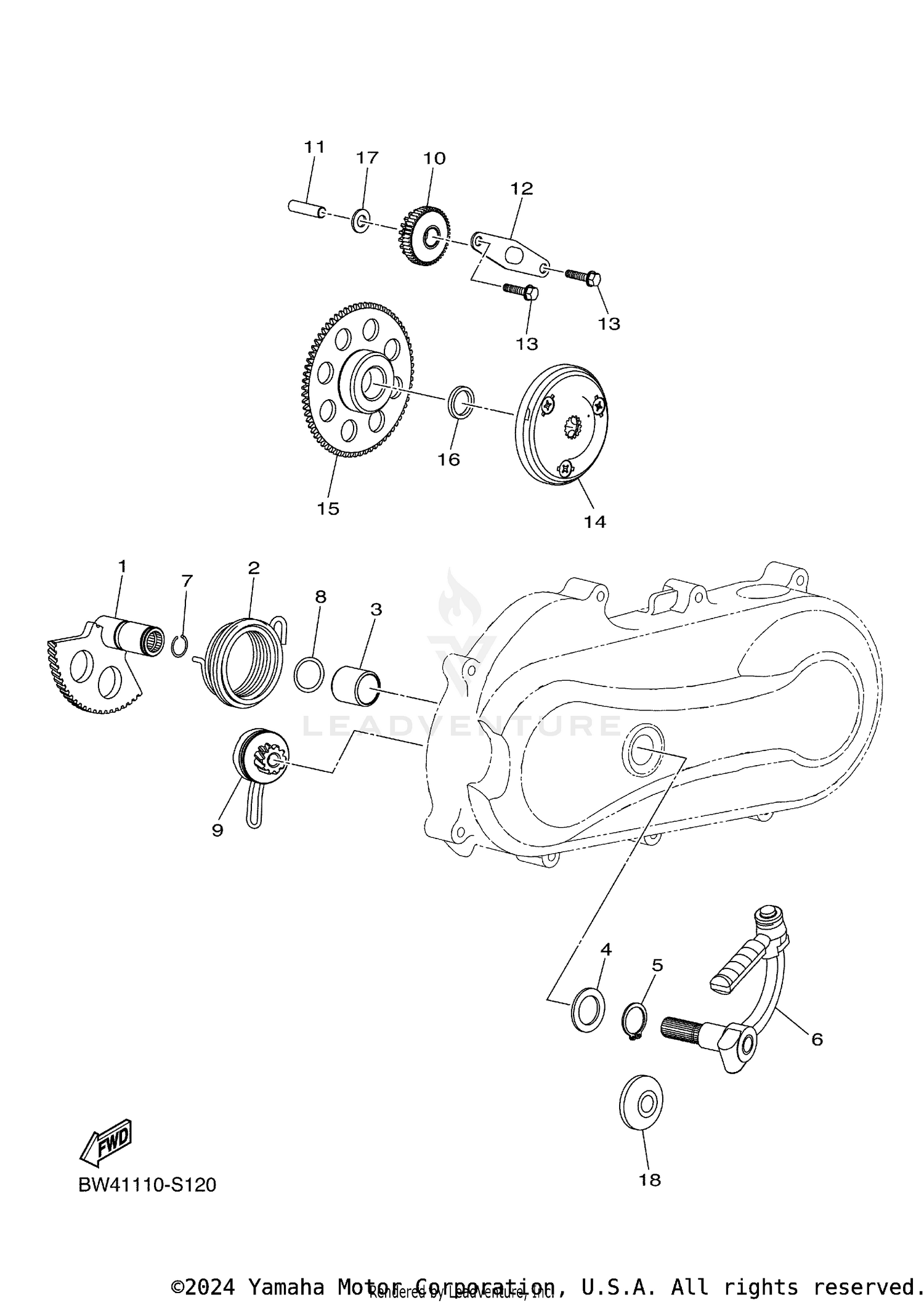

STARTER
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BD3-E5600-10-00 | KICK SHAFT UNIT ASSY Price: $168.99 |
| 2 | BD3-E5665-10-00 | SPRING, KICK This part replaces BD3-E5665-00-00. Price: $20.99 |
| 3 | BD3-E5677-00-00 | BOSS, KICK AXLE Price: $9.49 |
| 4 | BD3-E2456-10-00 | WASHER Price: $6.49 |
| 5 | BD3-E662A-00-00 | CIRCLIP Price: $2.85 |
| 6 | BW4-E5620-00-00 | KICK CRANK ASSY Price: $134.99 |
| 7 | BD3-E5597-00-00 | CIRCLIP 2 Price: $3.20 |
| 8 | BD3-E3016-00-00 | O-RING Price: $3.20 |
| 9 | BD3-E5670-00-00 | KICK PINION ASSY 2 Price: $84.99 |
| 10 | BD3-E5512-10-00 | GEAR, IDLER 1 This part replaces BD3-E5512-00-00. Price: $52.99 |
| 11 | BD3-E5521-00-00 | SHAFT 1 Price: $8.49 |
| 12 | BD3-E5532-00-00 | PLATE, IDLE GEAR Price: $13.49 |
| 13 | BD3-G1228-10-00 | BOLT Price: $4.50 |
| 14 | BD3-E5524-10-00 | WHEEL, STARTER Price: $199.99 |
| 15 | BD3-E5570-01-00 | STARTER CLUTCH ASSY This part replaces BD3-E5570-00-00. Price: $195.99 |
| 16 | BD3-E5613-10-00 | WASHER Price: $5.49 |
| 17 | BD3-E5615-10-00 | WASHER Price: $4.25 |
