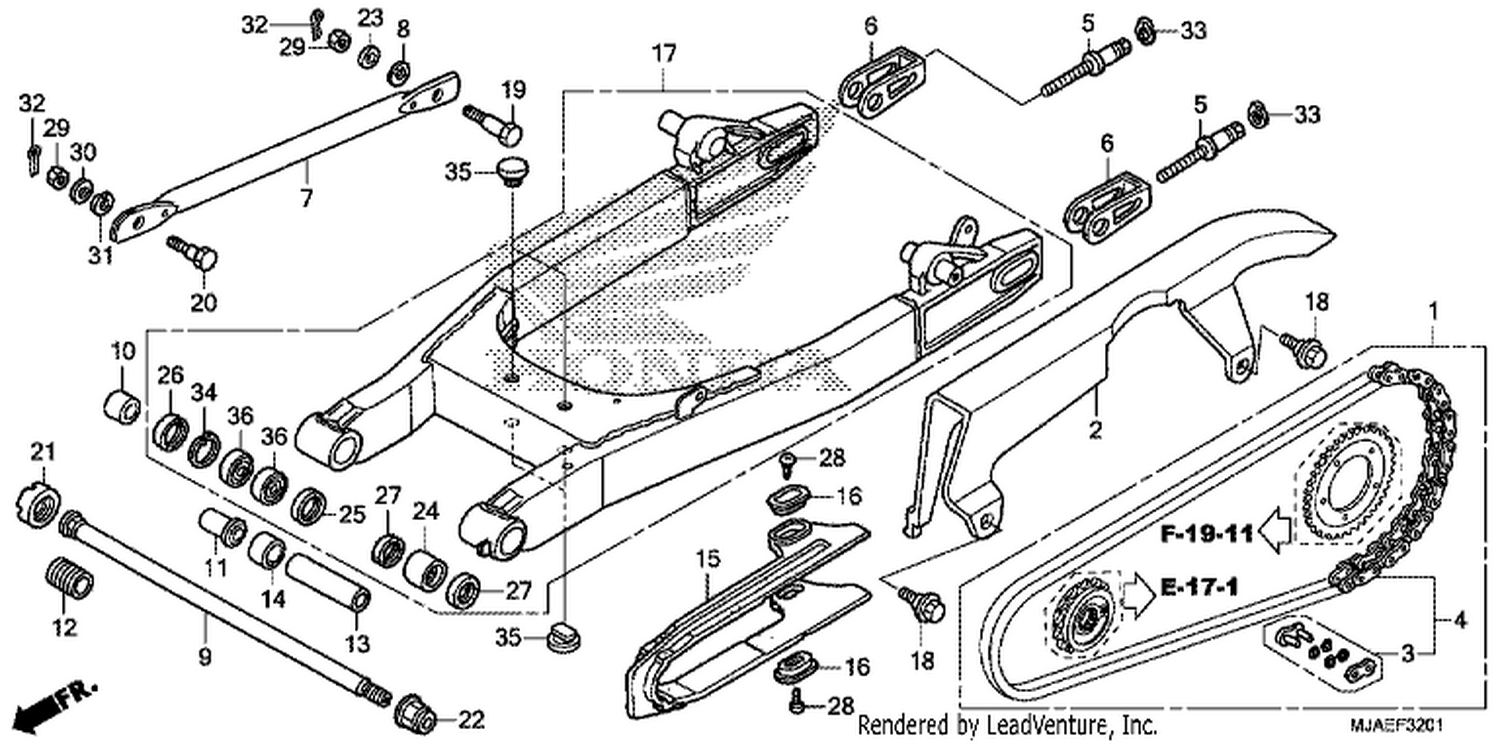

1 SWI NGARM (VT750S)

 1 SWI NGARM (VT750S)

Parts (34)

RefPart NumberDescription
2 40510MBV000 CASE, DRIVE CHAIN Price: Call Us
3 40535MY5306 JOINT SET, DRIVE CHAIN (RK EXCEL) Price: Call Us
3 40545MY5G31 JOINT, DRIVE CHAIN (DAIDO) Price: Call Us
5 40542KV3700 BOLT, CHAIN ADJUSTING Price: Call Us
6 40543MAS010 ADJUSTER, CHAIN Price: Call Us
7 43431MGR670 ARM, RR. BRAKE STOPPER Price: Call Us
8 43434ME1670 RUBBER, STOPPER ARM Price: Call Us
9 52101MGR670 BOLT, SWINGARM PIVOT Price: Call Us
10 52106MBA000 COLLAR, R. SWINGARM PIVOT Price: Call Us
11 52106MR1000 COLLAR, R. SWINGARM Price: Call Us
12 52109MBA000 BOLT, PIVOT ADJUSTING Price: Call Us
13 52143MBA000 COLLAR, L. PIVOT DISTANCE Price: Call Us
14 52144MBA000 BUSH, DISTANCE COLLAR Price: Call Us
15 52170MGR670 SLIDER, CHAIN Price: Call Us
16 52171KR6000 WASHER, CHAIN SLIDER Price: Call Us
17 52200MGR670 SWINGARM SUB ASSY. Price: Call Us
18 90116ME9000 BOLT, FLANGE, 6MM Price: Call Us
19 90127393000 BOLT, RR. BRAKE STOPPER Price: Call Us
20 90133286000 BOLT, RR. BRAKE STOPPER ARM Price: Call Us
21 90301KT7000 NUT, LOCK, 26X1.5 Price: Call Us
22 90305GE8003 NUT, U, 14MM Price: Call Us
23 90505425000 WASHER, 8MM Price: Call Us
24 91071MJ0003 BEARING, NEEDLE, 22X29X30 (NTN) Price: Call Us
25 91205965003 OIL SEAL, 22X31X5 (ARAI) Price: Call Us
26 91213MB2003 DUST SEAL, 22X35X7 (ARAI) Price: Call Us
27 91283ML7003 DUST SEAL, 22X29X4 (ARAI) Price: Call Us
28 9390125280 SCREW, TAPPING, 5X12 Price: Call Us
29 94001080000S NUT, HEX., 8MM Price: Call Us
30 9410108000 WASHER, PLAIN, 8MM Price: Call Us
31 9411110000 WASHER, SPRING, 10MM Price: Call Us
32 9420120180 PIN, SPLIT, 2.0X18 Price: Call Us
33 9451110000 CIRCLIP, EXTERNAL, 10MM Price: Call Us
34 9452035000 CIRCLIP, INTERNAL, 35MM Price: Call Us
35 9501163000 RUBBER C, STAND STOPPER Price: Call Us
