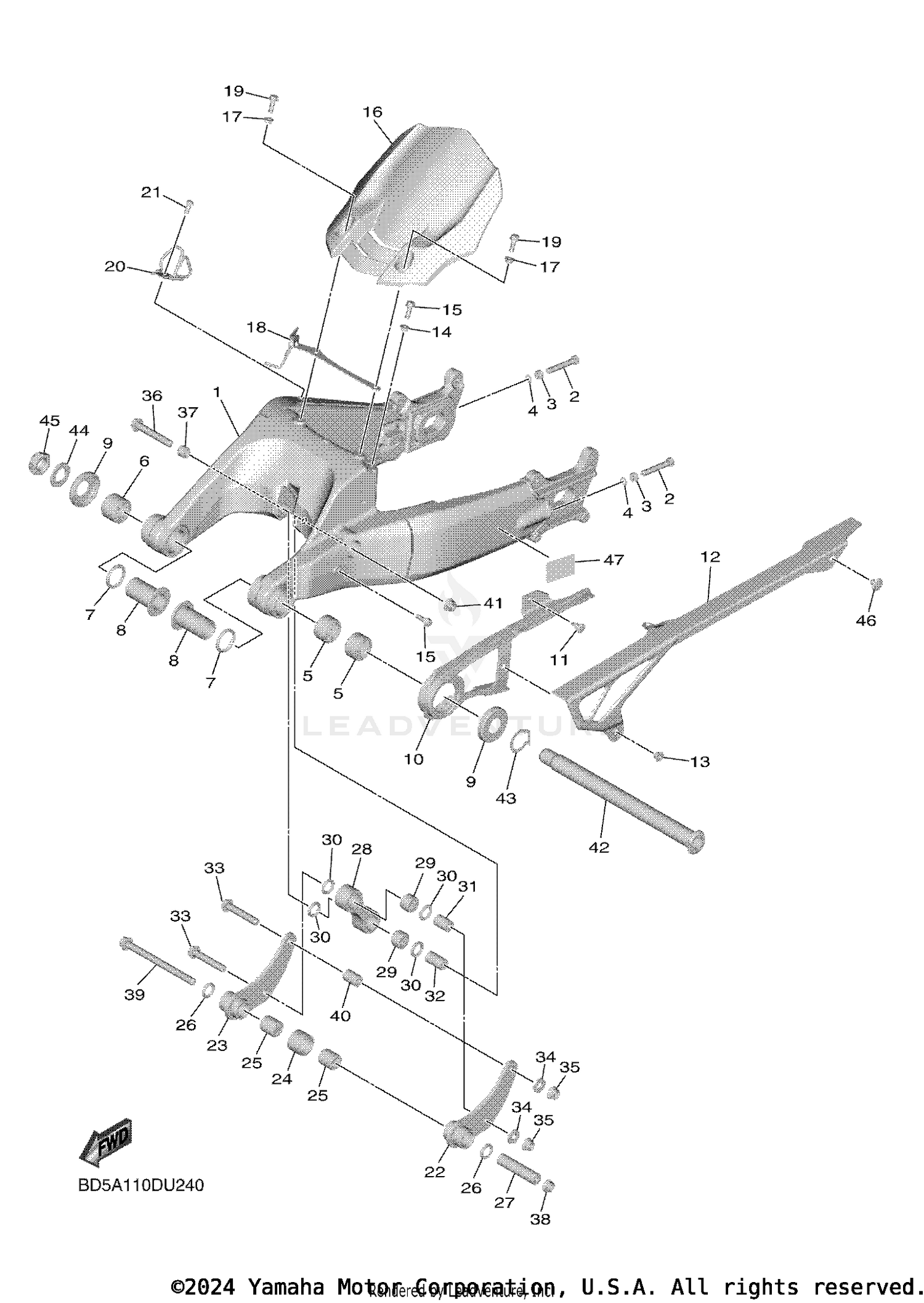

| Ref | Part Number | Description |
|---|
| 2 |
90101-08013-00 |
BOLT Price: $3.60 |
| 3 |
95302-08600-00 |
NUT, HEXAGON Price: $10.49 |
| 4 |
90201-08052-00 |
WASHER, PLATE Price: $2.55 |
| 5 |
93317-330A1-00 |
BEARING Price: $35.99 |
| 6 |
93317-330A0-00 |
BEARING Price: $38.99 |
| 7 |
93106-30002-00 |
OIL SEAL Price: $5.99 |
| 8 |
90387-25039-00 |
COLLAR Price: $37.99 |
| 9 |
2C0-22128-00-00 |
COVER, THRUST 1 Price: $31.99 |
| 10 |
BD5-22151-00-00 |
SEAL, GUARD Price: $28.99 |
| 11 |
90269-07007-00 |
RIVET Price: $4.40 |
| 12 |
BD5-22311-00-00 |
CASE, CHAIN Price: $15.49 |
| 13 |
90387-062X0-00 |
COLLAR Price: $22.99 |
| 14 |
90560-06244-00 |
SPACER Price: $9.49 |
| 15 |
95817-06020-00 |
BOLT, FLANGE Price: $3.50 |
| 16 |
B67-21650-00-00 |
REAR FENDER COMP. Price: $36.99 |
| 17 |
90560-06244-00 |
SPACER Price: $9.49 |
| 18 |
BD5-2588F-00-00 |
HOLDER, BRAKE HOSE 5 Price: $26.99 |
| 19 |
95817-06020-00 |
BOLT, FLANGE Price: $3.50 |
| 20 |
BD5-27267-00-00 |
GUIDE, WIRE Price: $26.99 |
| 21 |
92017-06016-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 22 |
BD5-2217A-00-00 |
ARM, RELAY Price: $65.99 |
| 23 |
BD5-2217E-00-00 |
ARM, RELAY 2 Price: $65.99 |
| 24 |
90445-32002-00 |
HOSE Price: $3.60 |
| 25 |
93315-31750-00 |
BEARING Price: $41.99 |
| 26 |
93109-17071-00 |
OIL SEAL Price: $8.49 |
| 27 |
3GB-23448-00-00 |
SPACER Price: $31.99 |
| 28 |
BD5-2217M-00-00 |
ARM 1 Price: $53.99 |
| 29 |
93315-31758-00 |
BEARING Price: $44.99 |
| 30 |
93109-17071-00 |
OIL SEAL Price: $8.49 |
| 31 |
90387-1012A-00 |
COLLAR Price: $23.99 |
| 32 |
90387-102R4-00 |
COLLAR Price: $17.49 |
| 33 |
90105-10210-00 |
BOLT, FLANGE Price: $8.49 |
| 34 |
90201-10036-00 |
WASHER, PLATE Price: $8.49 |
| 35 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 36 |
90105-10211-00 |
BOLT, FLANGE Price: $9.49 |
| 37 |
90387-1013U-00 |
COLLAR Price: $25.99 |
| 38 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 39 |
90105-10219-00 |
BOLT, FLANGE Price: $8.49 |
| 40 |
90387-1012A-00 |
COLLAR Price: $23.99 |
| 41 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 42 |
BD5-22141-00-00 |
SHAFT, PIVOT Price: $68.99 |
| 43 |
BD5-22159-00-00 |
WASHER, SPRING LOWER Price: $4.65 |
| 44 |
90201-22014-00 |
WASHER, PLATE Price: $8.49 |
| 45 |
90185-22009-00 |
NUT, SELF-LOCKING Price: $21.99 |
| 46 |
90269-07076-00 |
RIVET Price: $8.49 |
