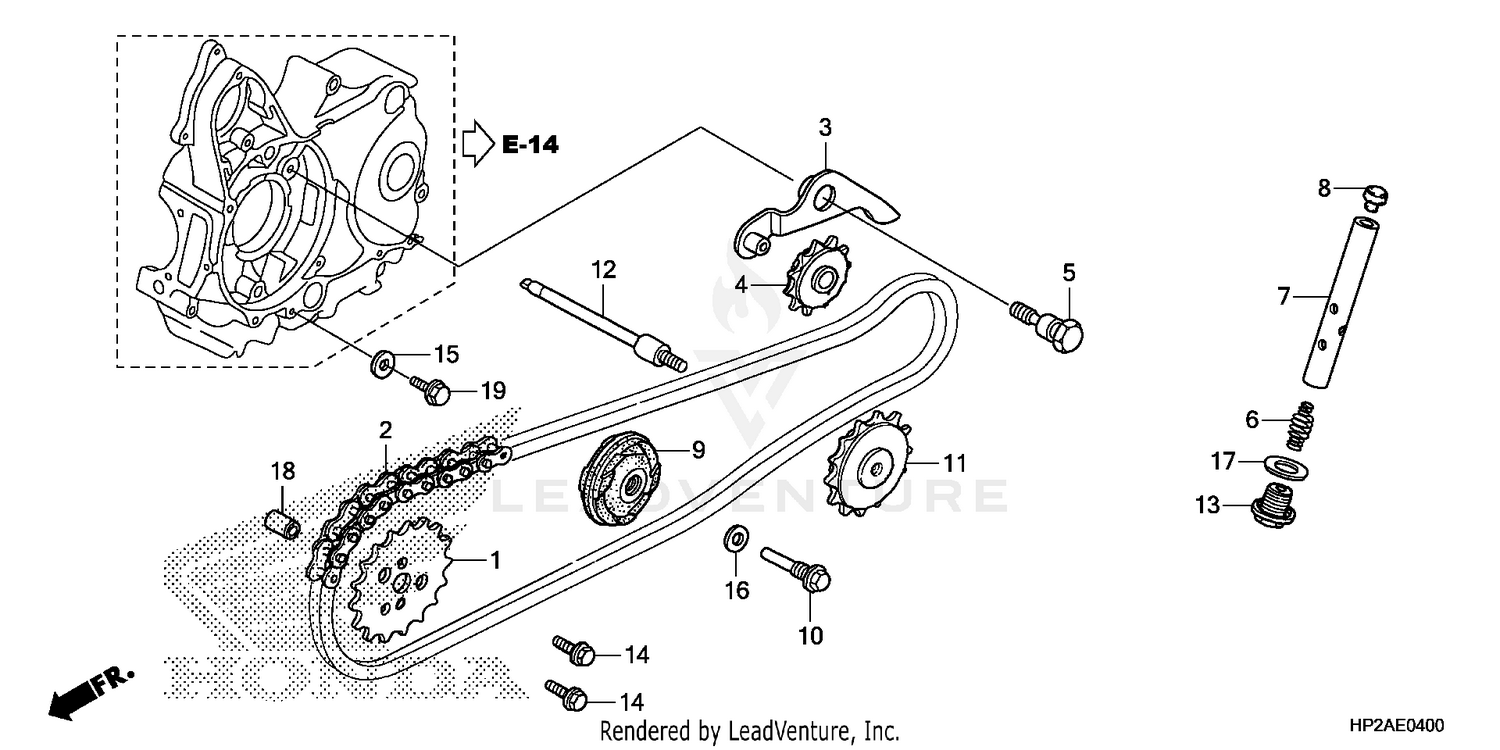

| Ref | Part Number | Description |
|---|
| 1 |
14321-GBG-900 |
SPROCKET, CAM (28T) Price: $13.65 |
| 2 |
14401-178-003 |
CHAIN, CAM (84L) (DAIDO) Price: $53.67 |
| 3 |
14500-035-020 |
ARM, CAM CHAIN TENSIONER Price: $33.96 |
| 4 |
14502-086-000 |
ROLLER, CAM CHAIN TENSIONER Price: $19.80 |
| 5 |
14531-035-000 |
PIVOT, CAM CHAIN TENSIONER Price: $4.42 |
| 6 |
14541-GB4-681 |
SPRING, CAM CHAIN TENSIONER Price: $5.98 |
| 7 |
14550-GB0-911 |
ROD, CAM CHAIN TENSIONER PUSH Price: $25.87 |
| 8 |
14566-086-030 |
HEAD, CAM CHAIN TENSIONER PUSH ROD Price: $2.65 |
| 9 |
14610-086-010 |
ROLLER, CAM CHAIN GUIDE Price: $24.51 |
| 10 |
14615-035-010 |
PIN, CAM CHAIN GUIDE ROLLER Price: $3.24 |
| 11 |
14670-GBJ-M30 |
SPROCKET, CAM CHAIN GUIDE (25T) Price: $28.27 |
| 12 |
14675-178-000 |
SPINDLE, CAM CHAIN GUIDE SPROCKET Price: $33.07 |
| 13 |
90081-035-000 |
BOLT, SEALING (14MM) Price: $5.33 |
| 14 |
90083-GB6-911 |
BOLT, KNOCK (5MM) Price: $2.51 |
| 15 |
90463-KRM-840 |
WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000. Price: $1.43 |
| 16 |
90481-035-000 |
WASHER (8MM) Price: $2.13 |
| 17 |
90544-KF0-000 |
WASHER, SEALING (14MM) Price: $4.09 |
| 18 |
90702-KFM-900 |
PIN, DOWEL (8X12) Price: $0.76 |
