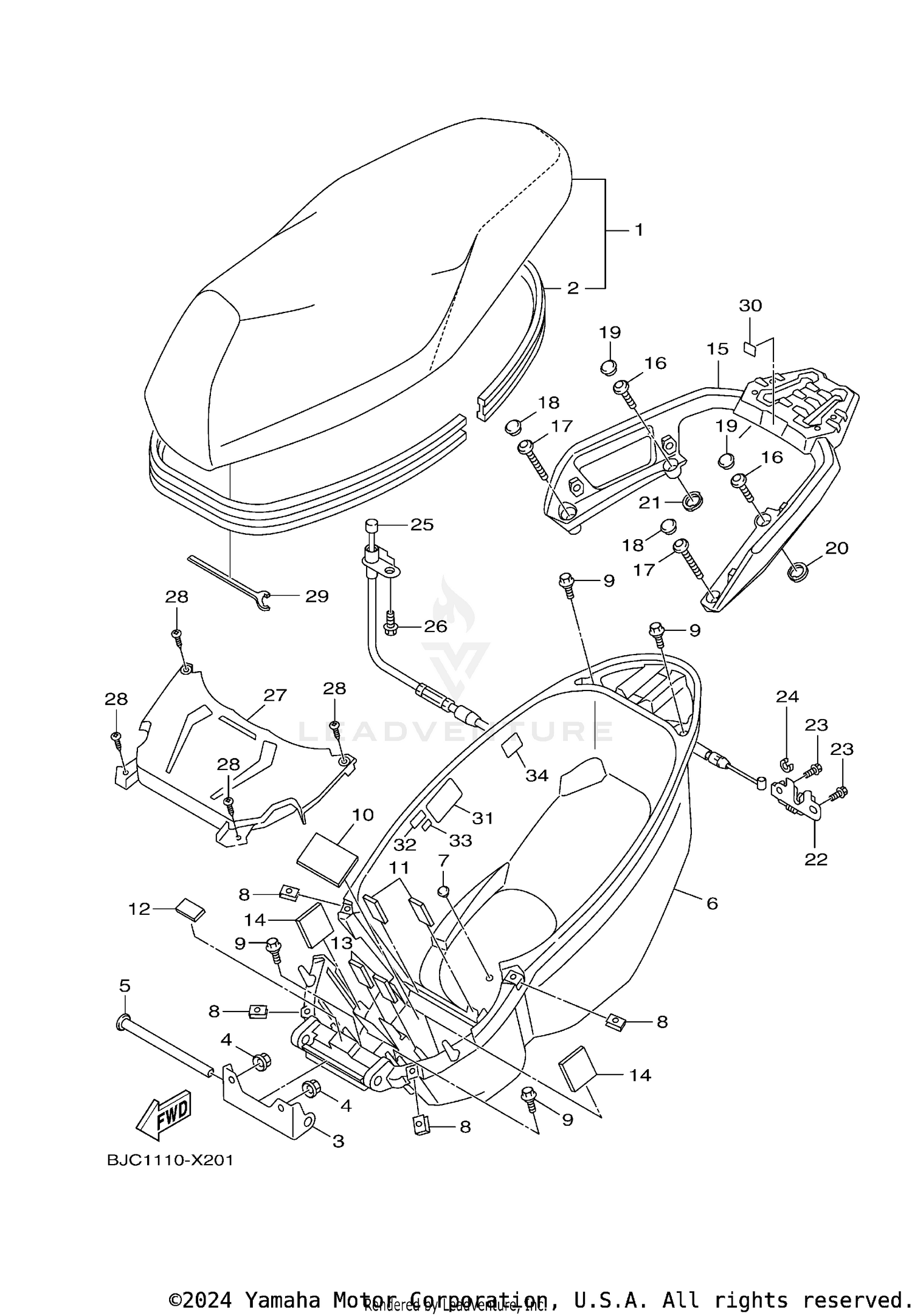

| Ref | Part Number | Description |
|---|
| 3 |
4CW-F4726-01-00 |
HINGE, SEAT Price: $3.50 |
| 4 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 5 |
90241-10015-00 |
PIN Price: $13.49 |
| 6 |
B8R-F473R-01-00 |
BOX 1 Price: $79.99 |
| 7 |
3GF-F6199-00-00 |
PLUG, BLIND Price: $0.55 |
| 8 |
90183-05827-00 |
NUT, SPRING Price: $1.65 |
| 9 |
90109-06849-00 |
BOLT Price: $2.30 |
| 10 |
90520-02834-00 |
DAMPER, PLATE Price: $1.55 |
| 11 |
5ML-F834E-00-00 |
DAMPER 3 Price: $2.15 |
| 12 |
4C6-F4723-00-00 |
DAMPER, SEAT Price: $2.70 |
| 13 |
90520-02823-00 |
DAMPER, PLATE Price: $0.55 |
| 14 |
22F-2139X-00-00 |
DAMPER This part replaces 3KW-F139X-00-00. Price: $8.49 |
| 16 |
90111-06140-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.60 |
| 17 |
90111-06871-00 |
BOLT,HEX. SOCKET BUTTON Price: $2.05 |
| 18 |
BBJ-F476M-00-00 |
CAP,CASING Price: $1.15 |
| 19 |
BBJ-F482H-00-00 |
CAP Price: $1.15 |
| 20 |
BBJ-F4723-00-00 |
DAMPER, SEAT Price: $1.15 |
| 21 |
BBJ-F4724-00-00 |
DAMPER, SEAT Price: $1.15 |
| 22 |
B7Y-F4780-00-00 |
SEAT LOCK ASSY Price: $12.49 |
| 23 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 24 |
2TS-F4768-00-00 |
STOPPER Price: $1.00 |
| 25 |
BBJ-F478E-00-00 |
CABLE, SEAT LOCK Price: $18.99 |
| 26 |
90119-05022-00 |
BOLT, WITH WASHER Price: $8.49 |
| 27 |
B8R-H2129-01-00 |
COVER, BATTERY Price: $8.49 |
| 28 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 29 |
B8R-F8135-00-00 |
SPANNER, SPECIAL Price: $4.35 |
| 30 |
BJC-F4876-00-00 |
LABEL, 2 Price: $0.65 |
| 31 |
BJC-F1668-00-00 |
LABEL, TIRE Price: $2.35 |
| 32 |
BJC-F8446-00-00 |
LABEL, CAUTION Price: $2.35 |
| 33 |
BJC-F4876-00-00 |
LABEL, 2 Price: $0.65 |
