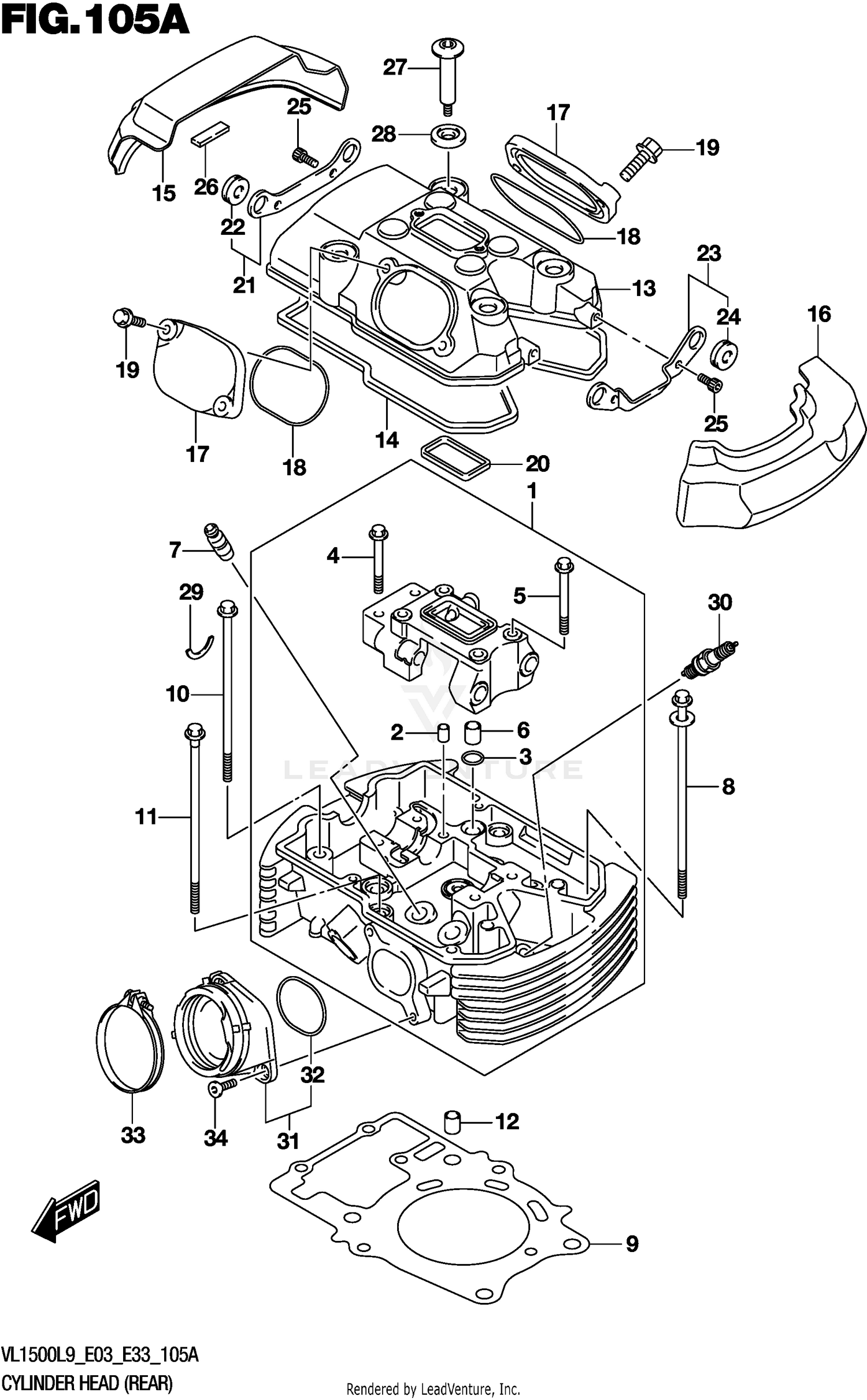

CYLINDER HEAD (REAR) (VL1500BL9 E03)
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11103-40H00 | HEAD ASSY Price: $1,159.09 |
| 3 | 09280-11001 | O RING (D:2.4,ID:10.8) Price: $2.41 |
| 4 | 01547-0650A | BOLT Price: $2.83 |
| 6 | 04211-11129 | PIN Price: $2.15 |
| 8 | 11117-05H00 | BOLT,CYLINDER HEAD (10X190) Price: $16.46 |
| 10 | 09103-08528 | BOLT (8X160) Price: $7.80 |
| 11 | 09103-08529 | BOLT (8X180) Price: $8.49 |
| 12 | 04211-13189 | PIN (10.4X13X18) Price: $2.64 |
| 13 | 11171-40H00 | COVER Price: $169.45 |
| 15 | 11174-40H20 | CAP Price: $110.07 |
| 16 | 11175-40H00 | CAP Price: $107.61 |
| 17 | 11176-40H00 | CAP Price: $15.64 |
| 19 | 01547-0620A | BOLT Price: $2.45 |
| 21 | 11180-40H00 | BRACKET Price: $9.08 |
| 22 | 09320-08509 | CUSHION (8X22X7) This part replaces 09320-08013. Price: $2.32 |
| 23 | 11180-40H10 | BRACKET Price: $10.69 |
| 24 | 09320-08509 | CUSHION (8X22X7) This part replaces 09320-08013. Price: $2.32 |
| 25 | 07130-0612A | BOLT Price: $3.02 |
| 26 | 94424-03H00 | CUSHION Price: $2.39 |
| 27 | 09106-07022 | BOLT (7X57) Price: $9.57 |
| 29 | 09390-22002 | C RING Price: $2.37 |
| 31 | 13102-40HA0 | PIPE ASSY Price: $81.17 |
| 33 | 13170-40H01 | CLAMP Price: $7.43 |
