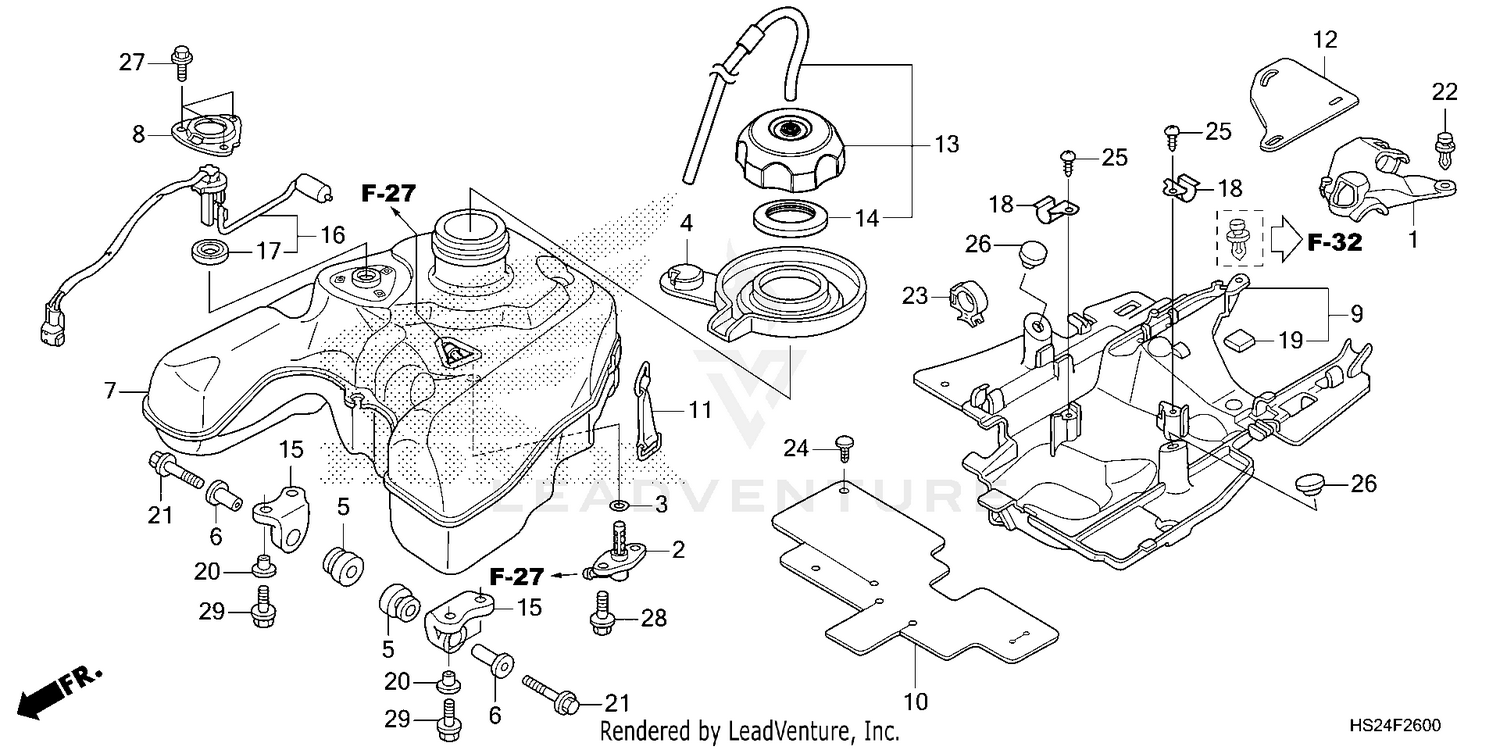

| Ref | Part Number | Description |
|---|
| 1 |
16721-HN8-A60 |
COVER, THROTTLE BODY Price: $14.42 |
| 2 |
16958-HN8-A61 |
JOINT ASSY., FUEL Price: $12.80 |
| 3 |
16997-467-000 |
O-RING (11.8X3.55) Price: $2.53 |
| 4 |
17507-HN8-A60 |
TRAY, FUEL TANK Price: $13.82 |
| 5 |
17508-GBF-830 |
RUBBER, TANK MOUNTING RUBBER, FUEL TANK SETTING Price: $7.42 |
| 6 |
17509-KS6-700 |
COLLAR, TANK SETTING Price: $11.07 |
| 7 |
17510-HN8-B40 |
TANK, FUEL Price: $545.85 |
| 8 |
17515-GBL-760 |
PLATE, UNIT SET Price: $5.64 |
| 9 |
17515-HN8-A60 |
PROTECTOR, TANK HEAT (LOWER) Price: $9.87 |
| 10 |
17516-HN8-A60 |
RUBBER, HEAT PROTECTOR Price: $11.16 |
| 11 |
17517-HN8-000 |
BAND, TANK Price: $5.27 |
| 12 |
17518-HN8-A60 |
RUBBER, RR. HEAT PROTECTOR Price: $2.82 |
| 13 |
17620-HS2-A50 |
CAP ASSY., FUEL TANK Price: $40.42 |
| 14 |
17624-HF7-000 |
GASKET, FUEL CAP (Honda Code 4067716) Price: $9.82 |
| 15 |
17634-KZ3-860 |
BRACKET, FR. FUEL TANK Price: $17.60 |
| 16 |
37080-HN8-000 |
FUEL UNIT SET Price: $69.65 |
| 17 |
37801-GA7-700 |
GASKET, BASE Price: $6.49 |
| 18 |
50173-MAH-A00 |
CLAMP A, CHOKE CABLE Price: $8.24 |
| 19 |
64207-MAM-A00 |
RUBBER, CUSHION PAD Price: $5.04 |
| 20 |
84706-415-000 |
COLLAR Price: $2.67 |
| 21 |
90137-KA3-830 |
BOLT, FLANGE (6X40) Price: $3.31 |
| 22 |
90653-HC4-900 |
CLIP, SPLASH GUARD (Honda Code 3795994) Price: $0.67 |
| 23 |
90690-GHB-651 |
CLIP, CABLE (15MM) Price: $2.49 |
| 24 |
91504-SD5-901 |
CLIP, WASHER MOUTH Price: $5.52 |
| 25 |
93913-25210 |
SCREW, TAPPING (5X12) Price: $0.60 |
| 26 |
95011-63000 |
RUBBER C, STAND STOPPER Price: $4.91 |
| 27 |
96001-06010-00 |
BOLT, FLANGE (6X10) Price: $1.70 |
| 28 |
96001-06014-00 |
BOLT, FLANGE (6X14) Price: $1.88 |
