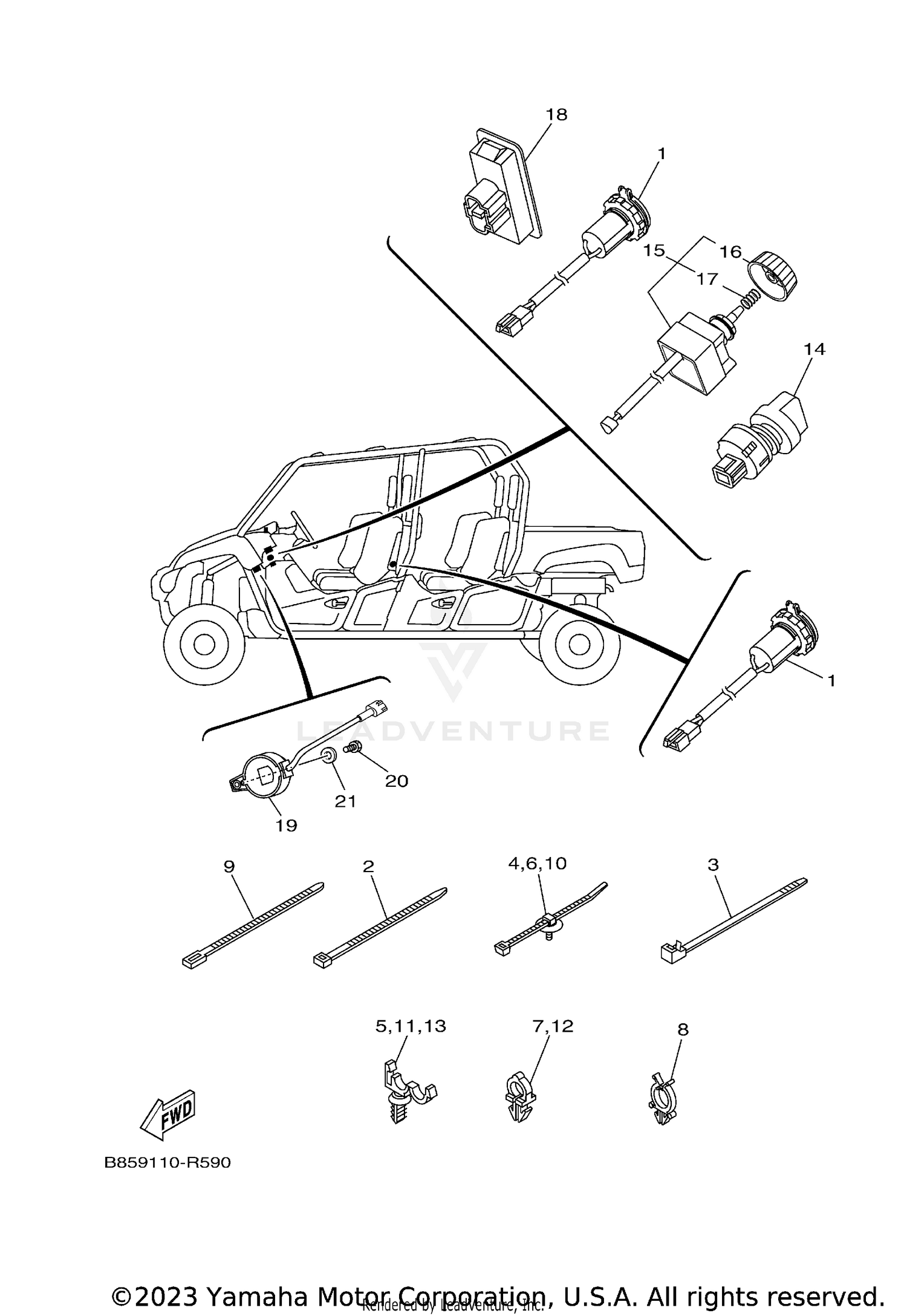

ELECTRICAL 2
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1HP-H254B-10-00 | TERMINAL COMP. Price: $20.99 |
| 2 | 90464-48800-00 | CLAMP Price: $4.90 |
| 4 | 5B4-F1338-00-00 | CLAMP Price: $3.60 |
| 6 | 1NS-F1338-00-00 | CLAMP Price: $3.60 |
| 7 | 90464-12830-00 | CLAMP This part replaces 90464-10833-00. Price: $1.60 |
| 8 | 90464-25826-00 | CLAMP Price: $3.05 |
| 10 | 5B4-F1338-00-00 | CLAMP Price: $3.60 |
| 12 | 90464-12830-00 | CLAMP This part replaces 90464-10833-00. Price: $1.60 |
| 14 | 5UG-H2526-00-00 | SWITCH, LAMP Price: $58.99 |
| 15 | 1XD-87280-01-00 | SWITCH, SELECT Price: $106.99 |
| 16 | 1XD-87285-00-00 | KNOB, SELECT SWITCH Price: $14.49 |
| 17 | 1XD-87288-00-00 | SPRING Price: $1.90 |
| 18 | 1XD-H3530-10-00 | PILOT LIGHT ASSY Price: $28.99 |
| 19 | 2MB-83383-00-00 | BUZZER Price: $74.99 |
| 20 | 97027-05020-00 | BOLT This part replaces 97002-05020-00. Price: $3.55 |
