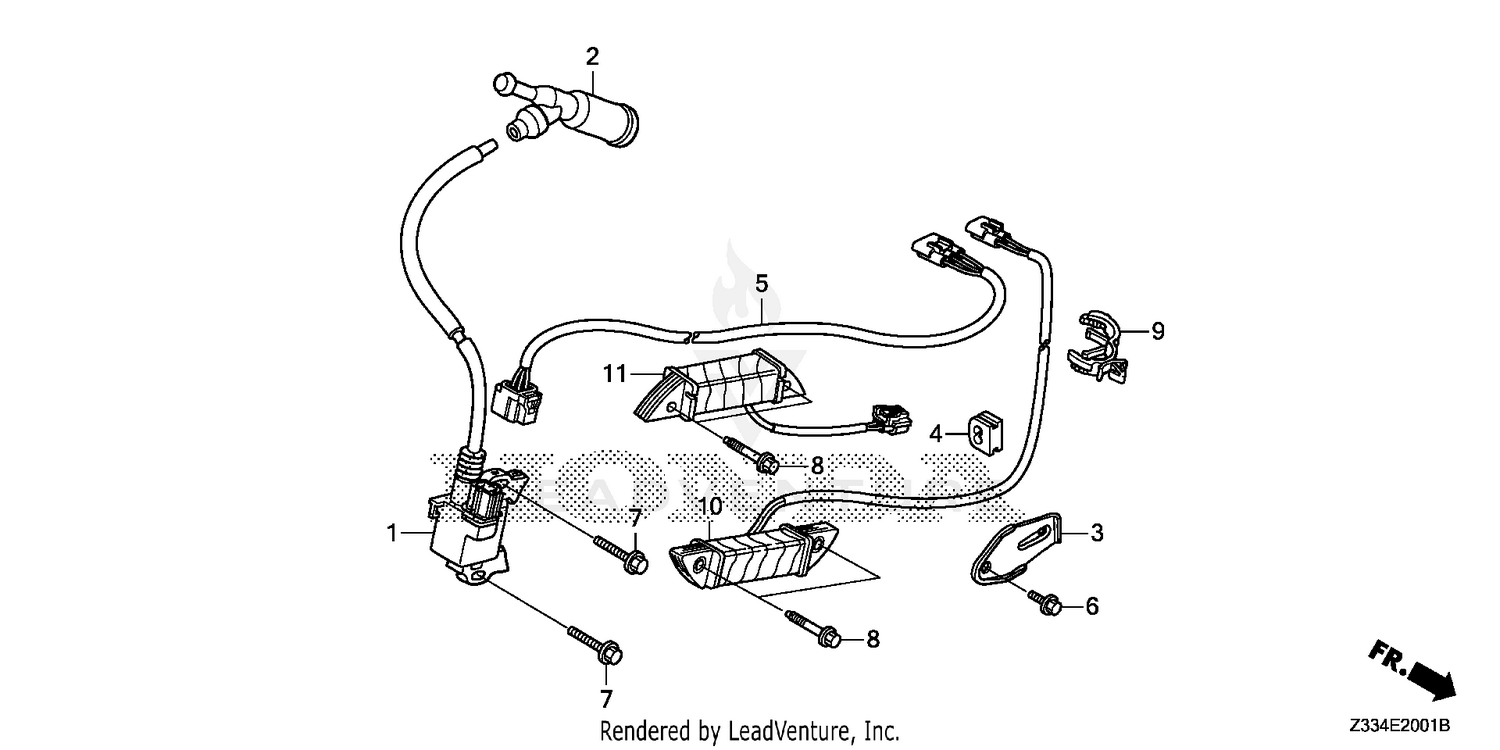

| Ref | Part Number | Description |
|---|
| 1 |
30500-Z5K-004 |
COIL ASSY., IGNITION This part replaces 30500-Z5K-003. Price: $61.47 |
| 2 |
30700-Z1C-813 |
SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (NGK Y-EZD) Price: $6.24 |
| 3 |
31511-ZE2-000 |
CLAMP, WIRE (Honda Code 2026540). Price: $6.26 |
| 4 |
31512-ZE2-000 |
GROMMET, WIRE (Honda Code 2026557). Price: $3.94 |
| 5 |
32110-Z1C-E20 |
WIRE HARNESS ASSY., ENGINE Price: $85.18 |
| 6 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 7 |
90015-883-000 |
BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314. Price: $3.62 |
| 8 |
90121-952-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819. Price: $2.82 |
| 9 |
90684-ZA0-601 |
SEE PART DETAILS - PRI; CLIP, WIRE HARNESS (Honda Code 2539138). Price: $4.40 |
| 10 |
30595-Z1D-E21 |
COIL ASSY., POWER Price: $46.75 |
