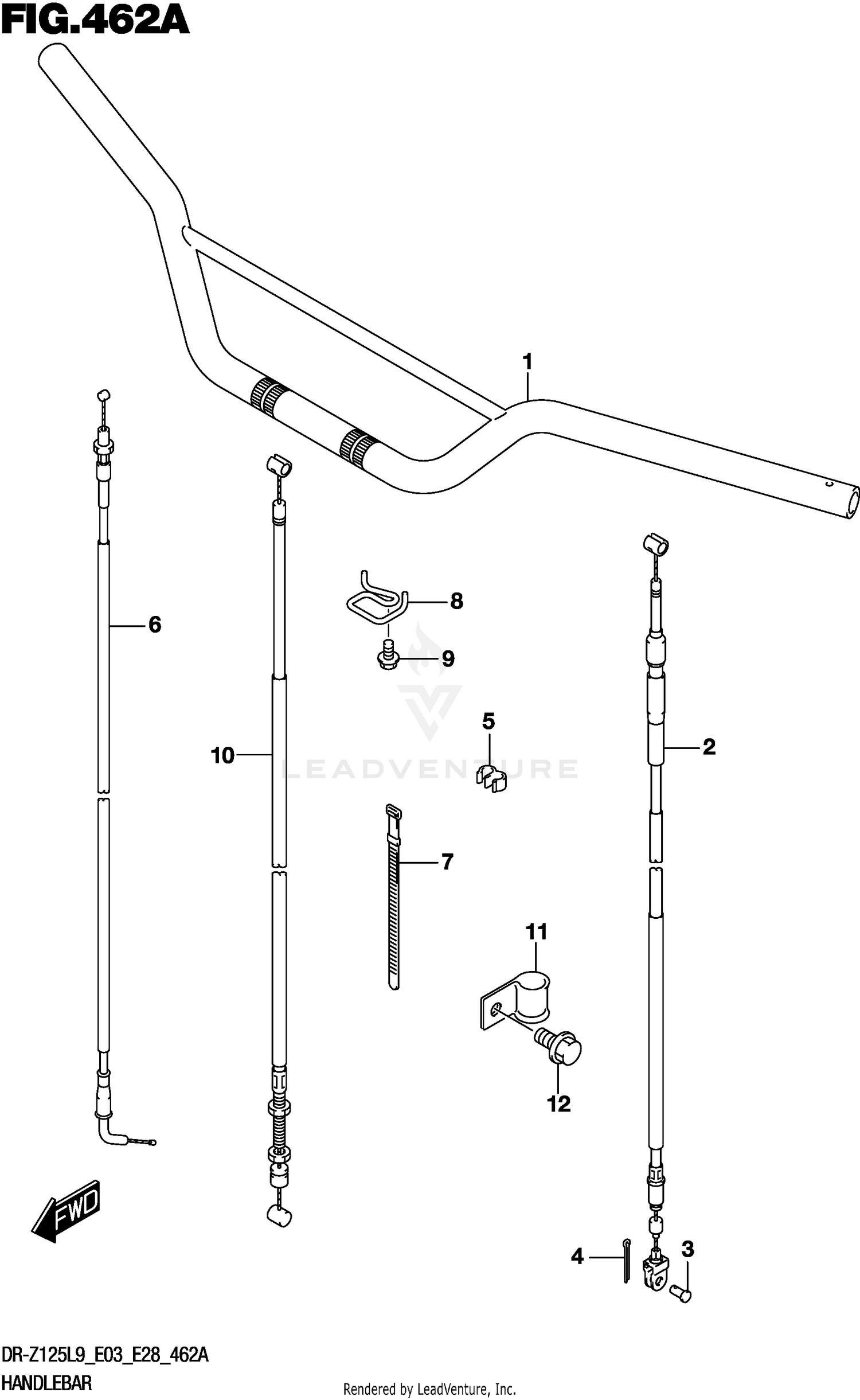

HANDLEBAR (DR-Z125L9 E28)
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 56110-08G00-13L | HANDLEBAR (SILVER) Price: $172.04 |
| 2 | 58200-08G00 | CABLE ASSY, CLUTCH Price: $31.06 |
| 3 | 09200-06004 | PIN (L:13) Price: $2.33 |
| 4 | 04111-2015A | PIN Price: $1.48 |
| 5 | 09403-17402 | CLAMP Price: $3.87 |
| 6 | 58300-08G00 | CABLE ASSY, THROTTLE Price: $23.06 |
| 7 | 09407-11402 | CLAMP (L:90) Price: $2.20 |
| 8 | 58621-08G00 | GUIDE, CABLE Price: $12.73 |
| 9 | 01550-0612A | BOLT Price: $2.37 |
| 10 | 58110-08G11 | CABLE, FR BRAKE This part replaces 58110-08G10. Price: $32.59 |
| 11 | 58622-08G10 | CLAMP Price: $10.17 |
