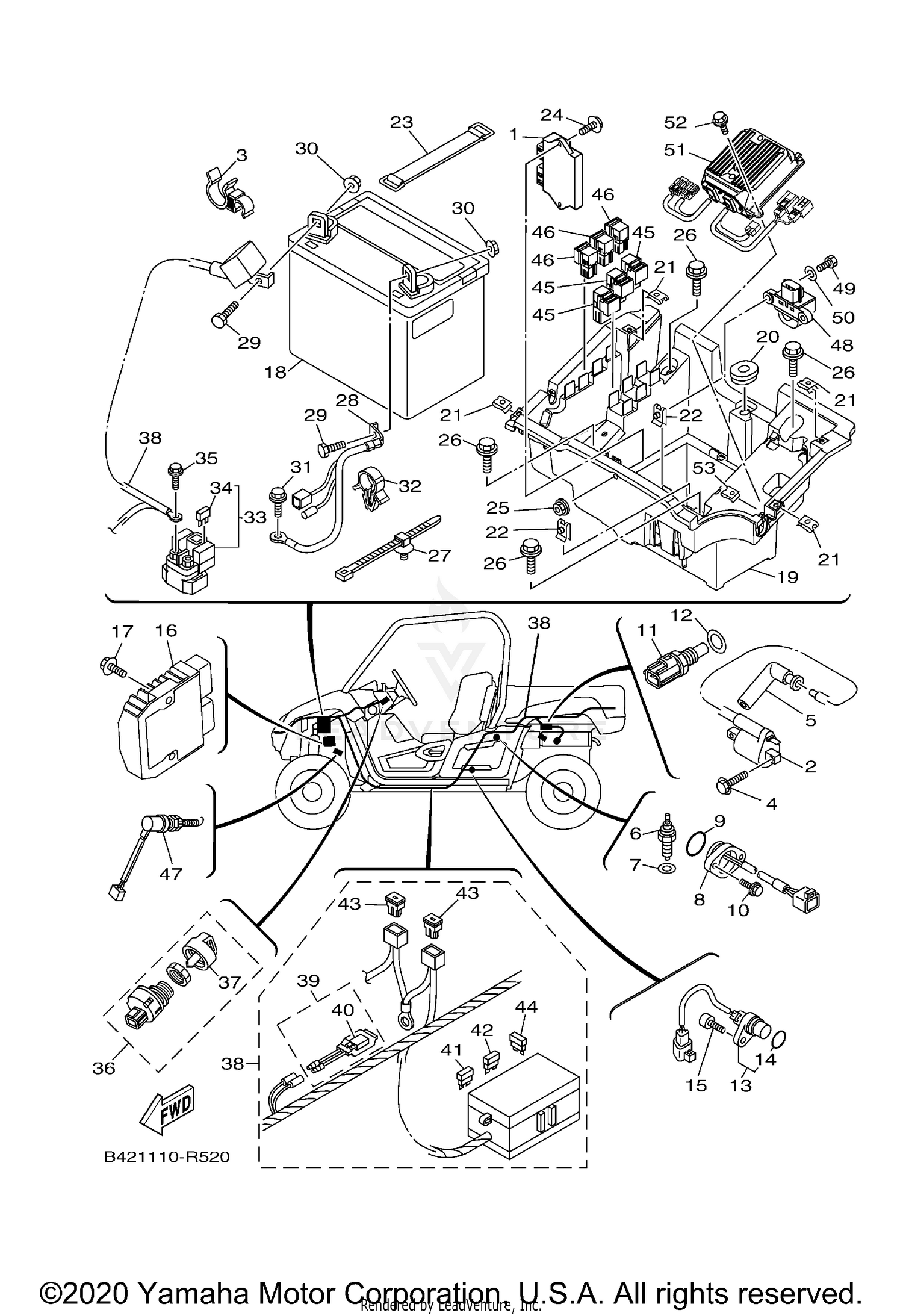

| Ref | Part Number | Description |
|---|
| 1 |
B42-8591A-21-00 |
ENGINE CONTROL UNI This part replaces B42-8591A-20-00. Price: $975.99 |
| 2 |
5YU-H2310-14-00 |
IGNITION COIL ASSY This part replaces 5YU-82310-12-00. Price: $23.99 |
| 3 |
90464-18016-00 |
CLAMP Price: $2.85 |
| 4 |
97D95-06016-00 |
BOLT, HEXAGON DEEP R This part replaces 97002-06016-00. Price: $2.76 |
| 5 |
5B4-82370-00-00 |
PLUG CAP ASSY Price: $71.99 |
| 6 |
3GB-82540-01-00 |
NEUTRAL SWITCH ASSY Price: $63.99 |
| 7 |
90430-10148-00 |
GASKET Price: $5.99 |
| 8 |
1XD-82540-02-00 |
NEUTRAL SWITCH ASSY This part replaces 1XD-82540-00-00. Price: $62.99 |
| 9 |
93210-29196-00 |
O-RING Price: $9.49 |
| 10 |
90119-06137-00 |
BOLT, WITH WASHER Price: $9.49 |
| 11 |
5YP-85790-00-00 |
THERMOSENSOR ASSY Price: $70.99 |
| 12 |
90430-12202-00 |
GASKET Price: $9.49 |
| 13 |
3B4-83755-01-00 |
SENSOR, SPEED Price: $143.99 |
| 14 |
4D9-81168-00-00 |
O-RING Price: $7.49 |
| 15 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06175-00. Price: $2.65 |
| 16 |
1D7-81960-01-00 |
RECTIFIER & REGULATOR ASSY Price: $349.99 |
| 17 |
90105-06833-00 |
BOLT, FLANGE Price: $2.30 |
| 18 |
11U-1LD00-00-00 |
BATTERY ASSY (GS U1L-11) This part replaces 5UG-H2100-10-00. Price: $139.95 |
| 19 |
1XD-H212B-00-00 |
BOX, BATTERY 1 Price: $58.99 |
| 20 |
90480-01558-00 |
GROMMET Price: $4.65 |
| 21 |
90183-060A6-00 |
NUT, SPRING Price: $5.99 |
| 22 |
90183-05008-00 |
NUT, SPRING Price: $10.49 |
| 23 |
22F-82131-00-00 |
BAND, BATTERY This part replaces 3L8-82131-01-00. Price: $32.99 |
| 24 |
95817-06020-00 |
BOLT, FLANGE This part replaces 95812-06020-00. Price: $3.50 |
| 25 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 26 |
JW1-K6179-01-00 |
BOLT, SPECIAL 1 This part replaces 90119-06868-00. Price: $1.75 |
| 27 |
1NS-F1338-00-00 |
CLAMP Price: $3.60 |
| 28 |
1XP-H2116-00-00 |
WIRE, MINUS LEAD Price: $79.99 |
| 29 |
97080-08020-00 |
BOLT Price: $2.91 |
| 30 |
90179-08015-00 |
NUT Price: $10.49 |
| 31 |
95812-06014-00 |
BOLT, FLANGE Price: $6.49 |
| 32 |
90464-15157-00 |
CLAMP Price: $9.49 |
| 33 |
5B4-81940-00-00 |
STARTER RELAY ASSY (RC19-080A) Price: $110.99 |
| 34 |
42X-82151-00-00 |
FUSE (10A-BL) Price: $4.70 |
| 35 |
95022-06008-00 |
BOLT, FLANGE Price: $9.49 |
| 36 |
1XD-H2510-11-00 |
MAIN SWITCH ASSY This part replaces 5UG-H2510-00-00. Price: $35.99 |
| 37 |
5UG-H2579-00-00 |
CAP, KEY Price: $10.99 |
| 38 |
B42-82590-00-00 |
WIRE HARNESS ASSY Price: $1,130.99 |
| 39 |
5B4-82180-00-00 |
CIRCUIT BREAKER ASSY Price: $47.99 |
| 40 |
5B4-82560-00-00 |
THERMO SWITCH ASSY Price: $61.99 |
| 41 |
67F-82151-50-00 |
FUSE (15A) This part replaces 5JJ-82151-10-00. Price: $4.05 |
| 42 |
67F-82151-40-00 |
FUSE (10A) This part replaces 5JJ-82151-30-00. Price: $7.10 |
| 43 |
JR9-82151-00-00 |
SLOW BLOW FUSE This part replaces 5PS-82151-00-00. Price: $13.49 |
| 44 |
5JJ-82151-70-00 |
FUSE (25A-BL) Price: $7.49 |
| 45 |
5DM-81950-01-00 |
RELAY ASSY (G8HN-1C4T-DJ-Y52) Price: $31.99 |
| 46 |
8DM-81950-11-00 |
RELAY ASSY (8DM-11) Price: $33.99 |
| 47 |
4KB-82530-11-00 |
STOP SWITCH ASSY This part replaces 4KB-82530-10-00. Price: $56.99 |
| 48 |
3B4-82576-10-00 |
SENSOR, LEAN ANGLE Price: $64.99 |
| 49 |
97095-05016-00 |
BOLT This part replaces 97002-05016-00. Price: $1.75 |
| 50 |
92990-05600-00 |
WASHER, PLATE This part replaces 92902-05600-00. Price: $0.80 |
| 51 |
1XP-859A0-00-00 |
POWER STRG. CONT. UNIT ASSY Price: $1,334.99 |
| 52 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95812-06016-00. Price: $1.95 |
