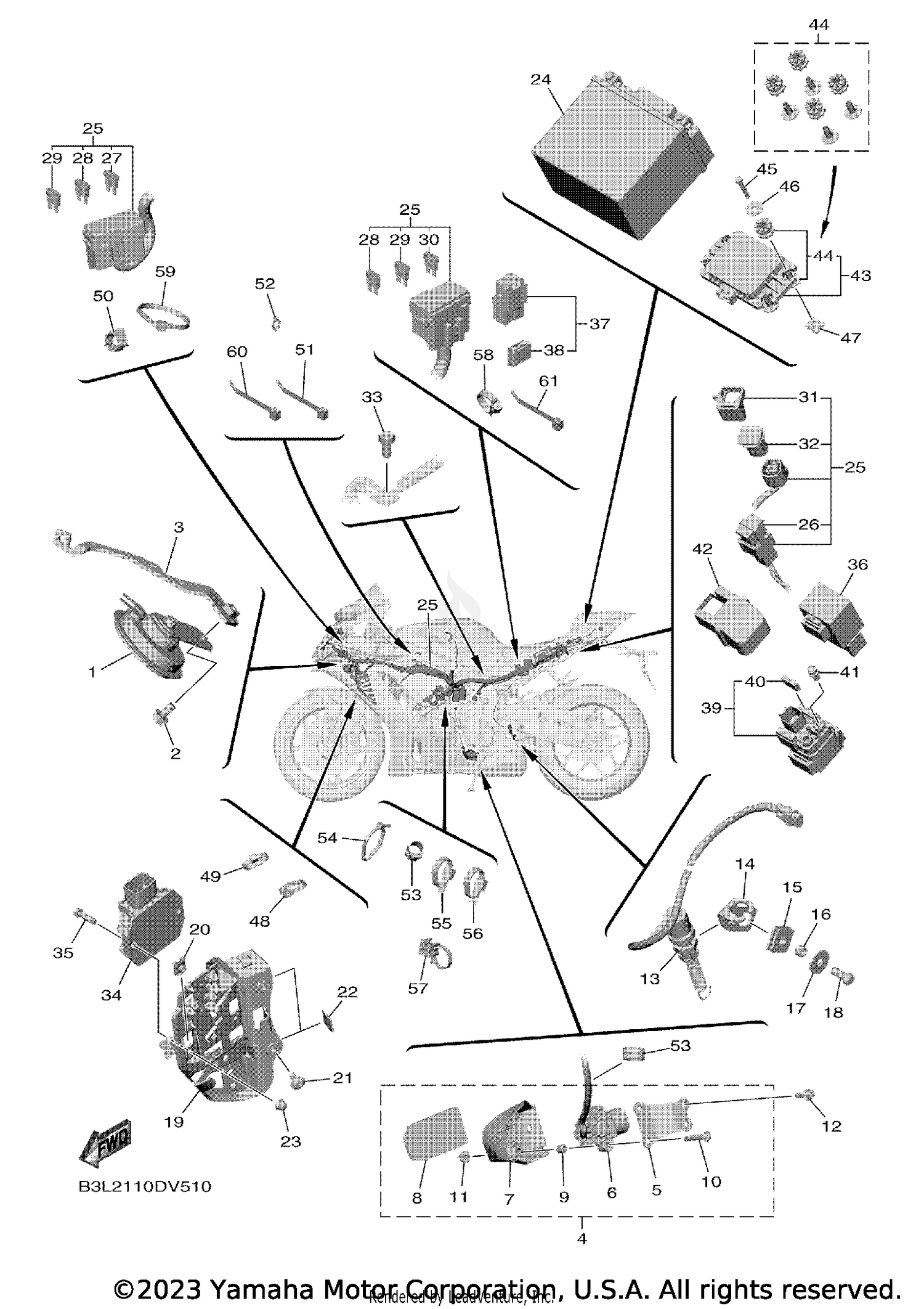

| Ref | Part Number | Description |
|---|
| 1 |
B67-83371-00-00 |
HORN Price: $76.99 |
| 2 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95812-06012-00. Price: $1.95 |
| 3 |
2CR-23377-00-00 |
BRACKET, HORN Price: $12.99 |
| 4 |
B3L-27406-00-00 |
COVER ASSY Price: $112.99 |
| 9 |
90387-05025-00 |
COLLAR Price: $8.49 |
| 10 |
92012-05030-00 |
BOLT, BUTTON HEAD Price: $8.49 |
| 11 |
95607-05200-00 |
NUT, U FLANGE This part replaces 95602-05200-00. Price: $10.49 |
| 12 |
90110-05038-00 |
BOLT, HEXAGON SOCKET HEAD Price: $8.49 |
| 13 |
2CR-82530-02-00 |
STOP SWITCH ASSY This part replaces 2CR-82530-01-00. Price: $46.99 |
| 14 |
2CR-2144G-00-00 |
STAY, STOP SWITCH Price: $5.99 |
| 15 |
90480-12607-00 |
GROMMET Price: $10.49 |
| 16 |
90387-06023-00 |
COLLAR Price: $10.49 |
| 17 |
90201-06380-00 |
WASHER, PLATE Price: $0.65 |
| 18 |
92017-06016-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 19 |
B3L-2836H-00-00 |
BRACKET 5 Price: $32.99 |
| 20 |
90183-06069-00 |
NUT, SPRING Price: $7.49 |
| 21 |
90111-06095-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 22 |
13S-21649-00-00 |
DAMPER Price: $7.49 |
| 23 |
663-45119-01-00 |
CAP, GREASE NIPPLE This part replaces 663-45119-00-00. Price: $2.40 |
| 24 |
5TJ-82100-01-00 |
BATTERY ASSY (YTZ7S(F)) Price: $199.99 |
| 25 |
B3L-82590-11-00 |
WIRE HARNESS ASSY This part replaces B3L-82590-10-00. Price: $1,134.99 |
| 26 |
5JW-82151-10-00 |
FUSE (50A) Price: $17.99 |
| 27 |
5JJ-82151-80-00 |
FUSE (2A-BL) Price: $8.49 |
| 28 |
5JJ-82151-00-00 |
FUSE (7.5A-BL) Price: $7.49 |
| 29 |
67F-82151-50-00 |
FUSE (15A) This part replaces 5JJ-82151-10-00. Price: $4.05 |
| 30 |
67F-82151-40-00 |
FUSE (10A) This part replaces 5JJ-82151-30-00. Price: $7.10 |
| 31 |
B3L-82155-00-00 |
BAND Price: $4.55 |
| 33 |
91317-06012-00 |
BOLT This part replaces 91312-06012-00. Price: $9.49 |
| 34 |
2CR-81960-01-00 |
RECTIFIER & REGULATOR ASSY This part replaces 2CR-81960-00-00. Price: $183.99 |
| 35 |
90105-06148-00 |
BOLT, FLANGE Price: $9.49 |
| 36 |
5VK-81950-33-00 |
RELAY ASSY This part replaces 5VK-81950-30-00. Price: $61.99 |
| 37 |
1TP-81950-00-00 |
RELAY ASSY (1TP-00) Price: $16.49 |
| 38 |
5EA-81952-00-00 |
HOLDER, RELAY Price: $8.49 |
| 39 |
2CR-81940-00-00 |
STARTER RELAY ASSY Price: $66.99 |
| 40 |
1AE-82151-00-00 |
FUSE (30A-BL) Price: $8.49 |
| 41 |
95022-06008-00 |
BOLT, FLANGE Price: $9.49 |
| 42 |
5SL-82119-10-00 |
COVER, LEAD WIRE Price: $5.49 |
| 43 |
B3L-8593A-02-00 |
INERTIAL MEASURE, UNIT ASSY This part replaces B3L-8593A-00-00. Price: $743.99 |
| 44 |
2CR-W8A8D-01-00 |
GROMMET AND COLLAR This part replaces 2CR-W8A8D-00-00. Price: $64.99 |
| 45 |
91312-04025-00 |
BOLT, HEXAGON SOCKET HEAD Price: $1.95 |
| 46 |
2CR-81162-00-00 |
WASHER, PLAIN Price: $2.25 |
| 47 |
90183-04039-00 |
NUT, spring Price: $8.49 |
| 48 |
1UA-82591-00-00 |
BAND Price: $5.49 |
| 49 |
1UA-82591-00-00 |
BAND Price: $5.49 |
| 50 |
90464-16003-00 |
CLAMP Price: $7.60 |
| 51 |
1UA-82591-00-00 |
BAND Price: $5.49 |
| 52 |
90465-10098-00 |
CLAMP Price: $2.70 |
| 53 |
90464-13227-00 |
CLAMP Price: $8.49 |
| 54 |
90464-16061-00 |
CLAMP Price: $9.49 |
| 57 |
90464-45006-00 |
CLAMP Price: $7.49 |
| 59 |
3MA-82591-00-00 |
CLAMP Price: $10.99 |
| 60 |
1UA-82591-00-00 |
BAND Price: $5.49 |
