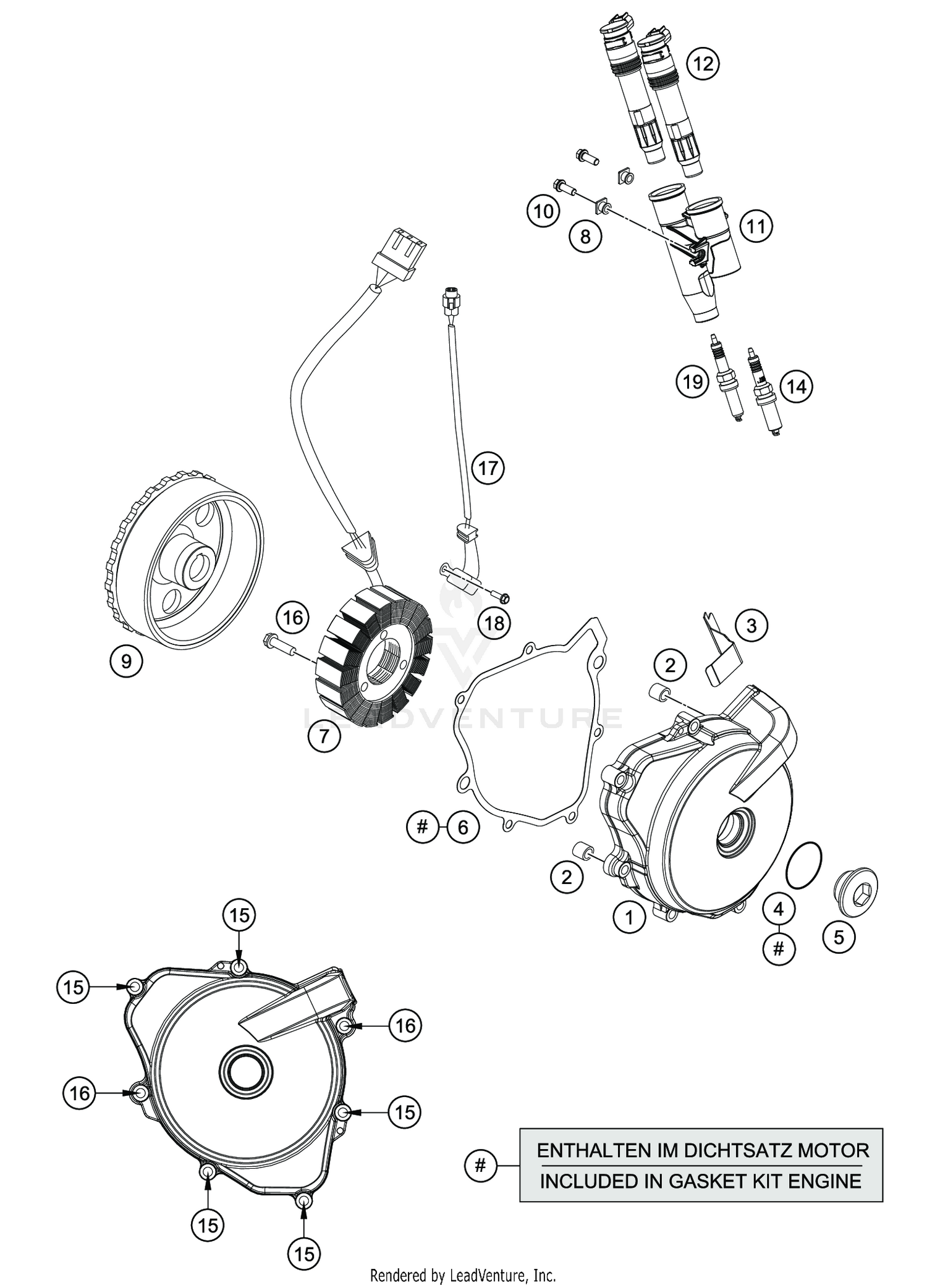

IGNITION SYSTEM
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 76630002000JA | Ignition cover Price: $78.09 |
| 2 | 49030090100 | DOWEL 9,8 X7X10 This part replaces 49030090000. Price: $2.99 |
| 6 | 75030040000 | IGNITI.COVER GASKET 07 Price: $8.57 |
| 7 | 75039004200 | Stator This part replaces 75039004100. Price: $186.44 |
| 8 | 76036075050 | INSET Price: $8.35 |
| 9 | 75039005300 | Rotor This part replaces 75039005200. Price: $288.63 |
| 10 | 0025060166 | HH collar screw M6x16 TX30 Price: $3.99 |
| 11 | 76636075000 | STICKCOIL HOLDER Price: $17.81 |
| 12 | 76039006000 | STICK COIL Price: $114.28 |
| 14 | 60439093000 | SPARK PLUG M12X1.25 Price: $32.77 |
| 15 | 0025060256 | HH collar screw M6x25 TX30 Price: $3.99 |
| 16 | 0025060306 | HH collar screw M6x30 TX30 Price: $3.99 |
| 17 | 75039034000 | PULSER COIL Price: $78.53 |
| 18 | 59009062016 | SPECIAL SCREW M6X16 WS=8 10.9 Price: $2.99 |
