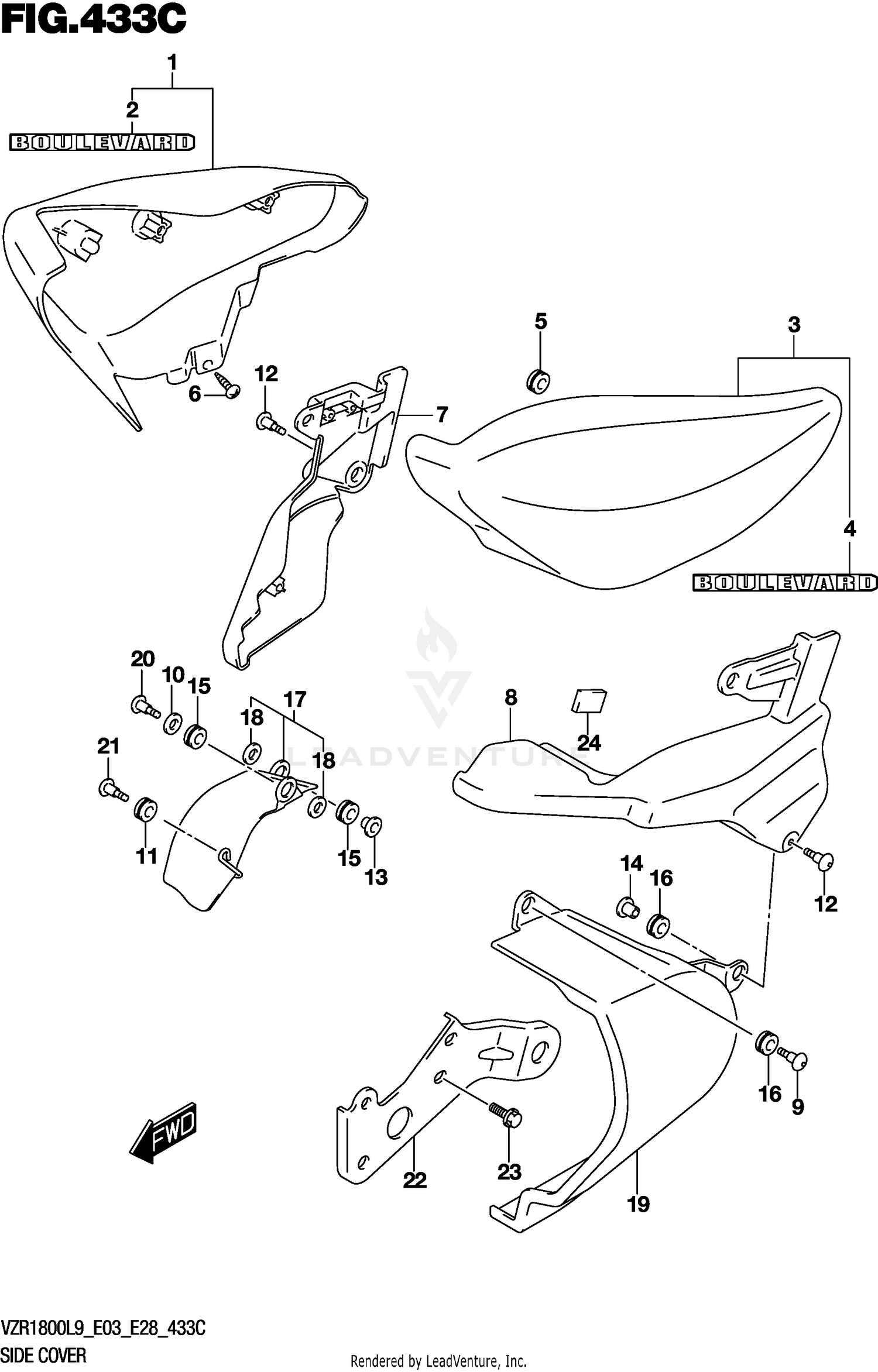

SIDE COVER (VZR1800BZL9 E28)
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 09320-08018 | CUSHION (8X26X7) Price: $3.70 |
| 6 | 03541-0516A | SCREW Price: $1.65 |
| 7 | 47121-48G00 | COVER,SIDE LOWER RH Price: $41.95 |
| 8 | 47221-48G00 | COVER,SIDE LOWER LH Price: $41.18 |
| 12 | 09139-06029 | SCREW (6X25) Price: $6.53 |
| 17 | 47130-48G50 | COVER,LOWER RH Price: $327.16 |
| 19 | 47231-48G50 | COVER,LOWER LH Price: $567.75 |
| 22 | 47250-48G00 | BRACKET,LOWER COVER LH Price: $18.43 |
| 23 | 01550-0612A | BOLT Price: $2.37 |
| 24 | 47161-19C00 | CUSHION,FRAME COVER Price: $3.28 |
| 25 | SPECIAL | NOTE COLOR:KEL=YVB(BLACK)/YSF(BLUE) Price: Call Us SPECIAL NOTE |
