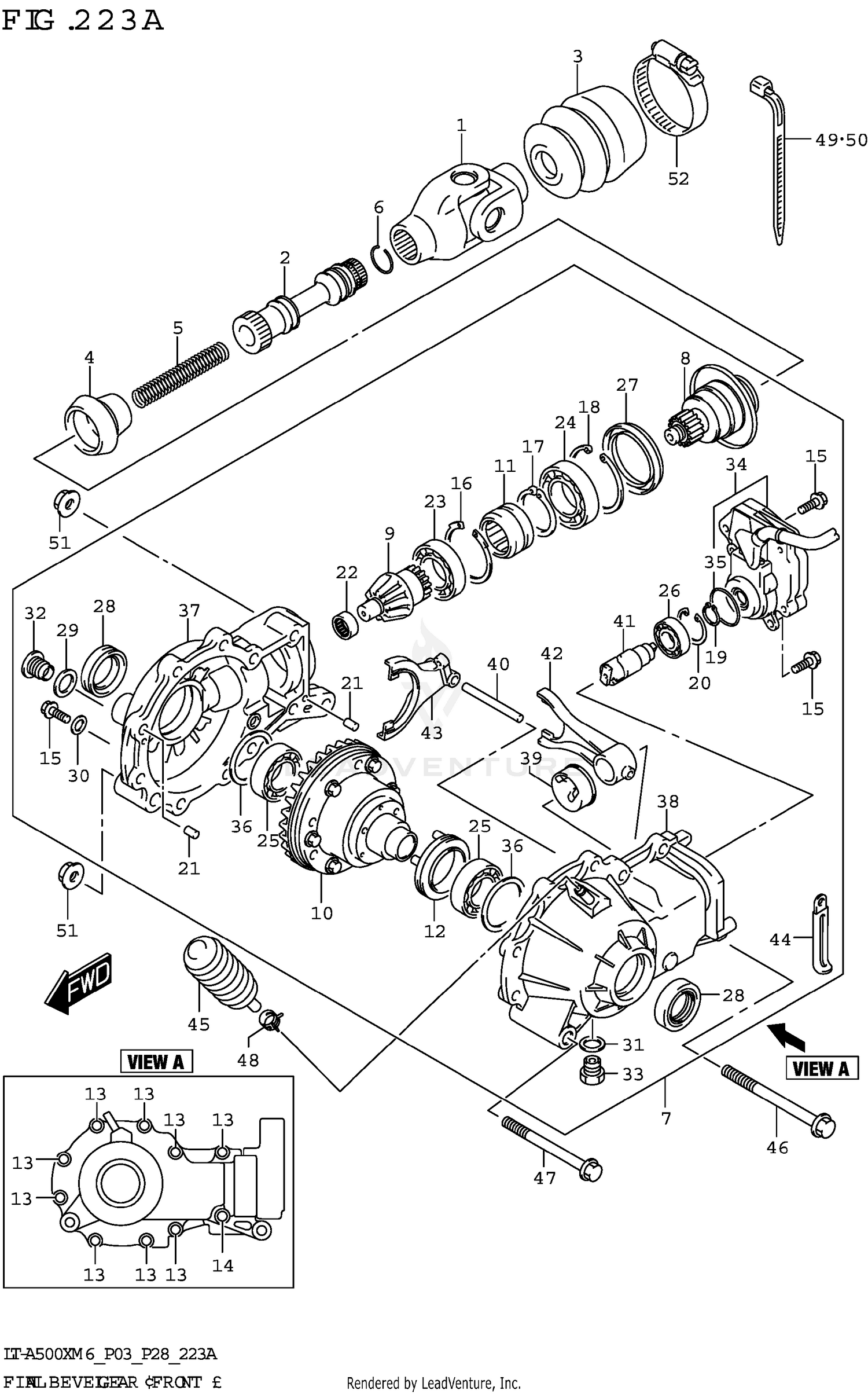

FINAL BEVEL GEAR (FRONT)
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 27100-31G00 | YOKE,FR PROPELLER SHAFT Price: $238.96 |
| 2 | 27151-31G30 | SHAFT,PROPELLER Price: $82.40 |
| 3 | 27153-31G22 | BOOT,FRONT PROP SHAFT YOKE Price: $14.12 |
| 4 | 27153-31G32 | BOOT,FR PROP SHAFT Price: $8.20 |
| 5 | 27191-31G00 | SPRING,FR PROPELLER SHAFT Price: $6.09 |
| 6 | 09381-20004 | CIRCLIP Price: $1.99 |
| 7 | 27400-31H04 | CASE ASSY,FRT D This part replaces 27400-31H03. Price: $1,410.03 |
| 45 | 27491-38F10 | CASE,BREATHER Price: $22.86 |
| 46 | 09103-10061 | BOLT (10X90) Price: $6.76 |
| 47 | 09103-10148 | BOLT (10X110) Price: $8.45 |
| 48 | 09401-08411 | CLIP (ID:8.6) Price: $2.15 |
| 49 | 09407-14403 | CLAMP (L:125) Price: $2.72 |
| 50 | 09407-14403 | CLAMP (L:125) Price: $2.72 |
| 51 | 09159-10115 | NUT (M10) Price: $4.33 |
