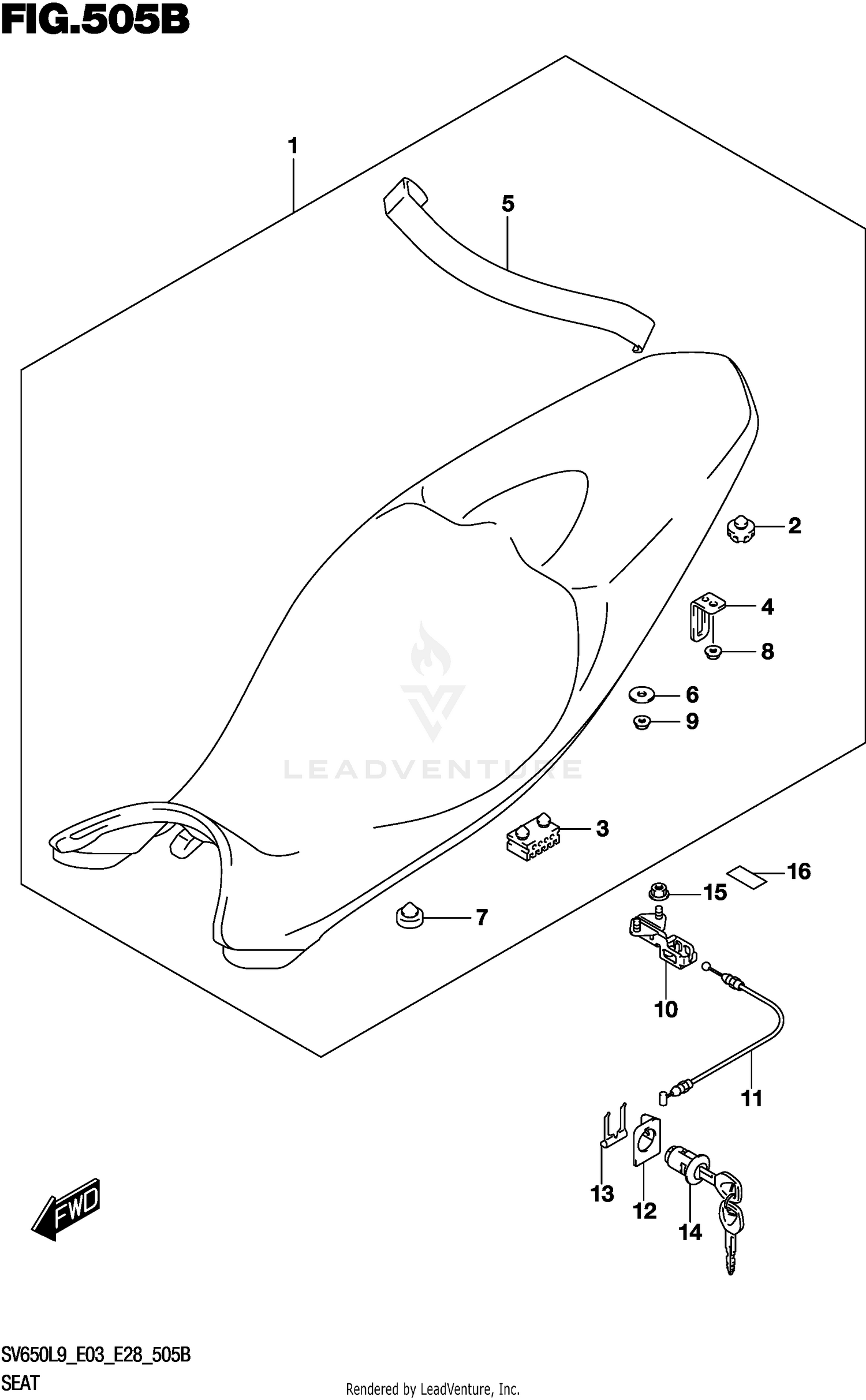

SEAT (SV650L9 E33)
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 45100-18K02-BBC | SEAT ASSY (BLACK) This part replaces 45100-18K01-BBC. Price: $444.16 |
| 6 | 09160-06088 | WASHER (6.5X20X1.6) Price: $2.02 |
| 7 | 09321-10012 | CUSHION Price: $3.36 |
| 8 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 9 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 10 | 45220-04K20 | BRACKET, STRIKER SUPPORT Price: $34.44 |
| 11 | 45280-18K00 | CABLE,SEAT LOCK Price: $20.13 |
| 12 | 45288-14F00 | GUIDE,SEAT LOCK CABLE Price: $6.63 |
| 13 | 45289-11F00 | PLATE,SEAT LOCK ASSY Price: $7.66 |
| 14 | 95700-14810 | LOCK SET,SEAT Price: $132.54 |
| 15 | 08316-1006A | NUT (6X12) Price: $2.64 |
