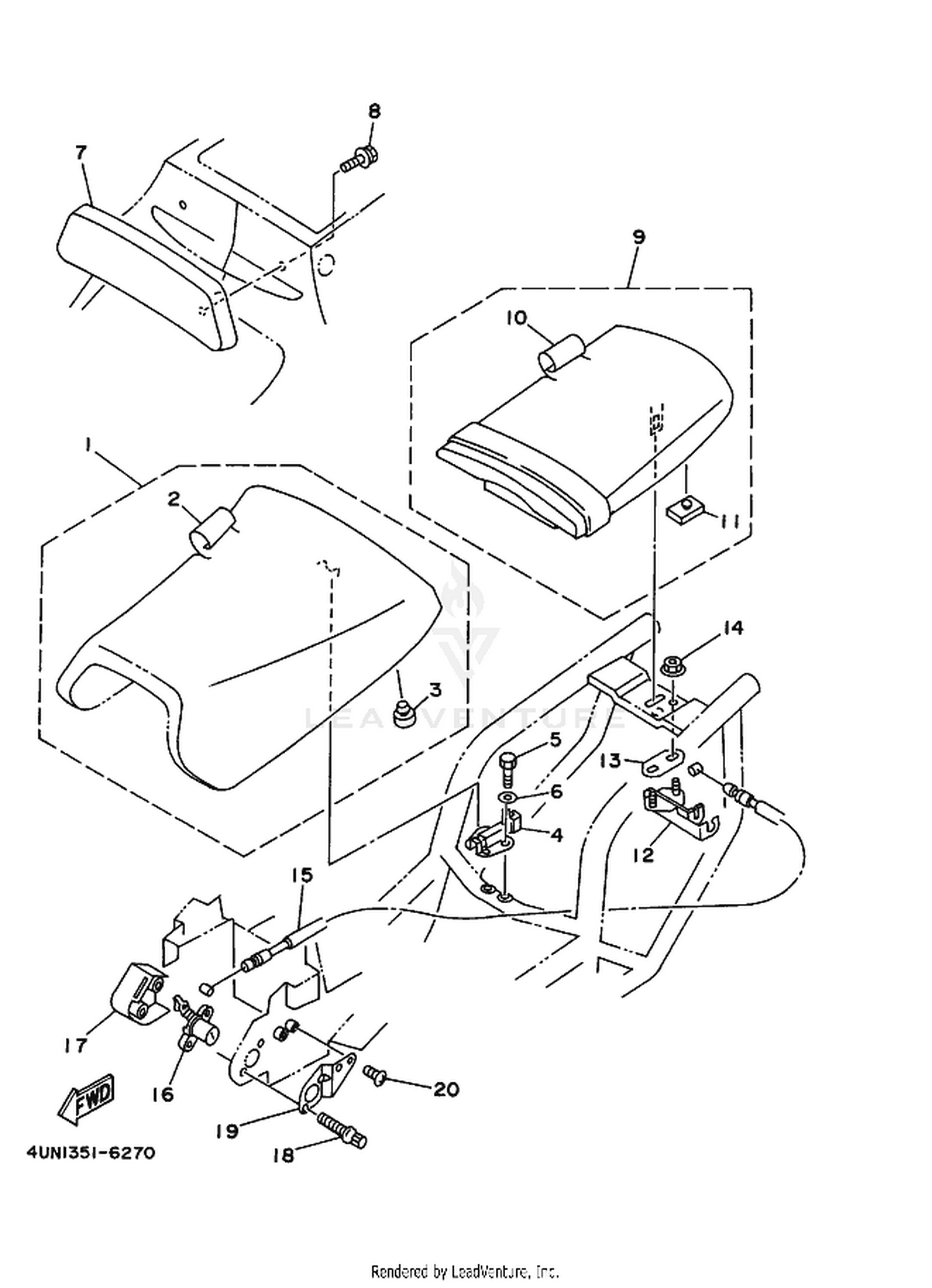

27 SEAT
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 4NX-24710-00 | SINGLE SEAT ASSY Price: Call Us |
| 4 | 4FM-24780-00 | SEAT LOCK ASSY Price: Call Us |
| 5 | 97007-06016 | BOLT Price: Call Us |
| 6 | 92907-06600 | WASHER, PLATE Price: Call Us |
| 7 | 3FV-2840F-00 | BACK REST ASSY Price: Call Us |
| 8 | 90119-06194 | BOLT, WITH WASHER Price: Call Us |
| 9 | 4NX-24750-10 | TANDEM SEAT ASSY Price: Call Us |
| 12 | 4BP-24780-00 | SEAT LOCK ASSY Price: Call Us |
| 13 | 4BP-24792-00 | PLATE Price: Call Us |
| 14 | 95707-06500 | NUT, FLANGE Price: Call Us |
| 15 | 4NX-2478E-00 | CABLE, SEAT LOCK Price: Call Us |
| 16 | 3CK-W2470-00 | SEAT LOCK ASSY Price: Call Us |
| 17 | 4NX-2117K-00 | STAY, LOCK Price: Call Us |
| 18 | 90149-06308 | SCREW Price: Call Us |
| 19 | 4NX-2479K-00 | PLATE, LOCK Price: Call Us |
