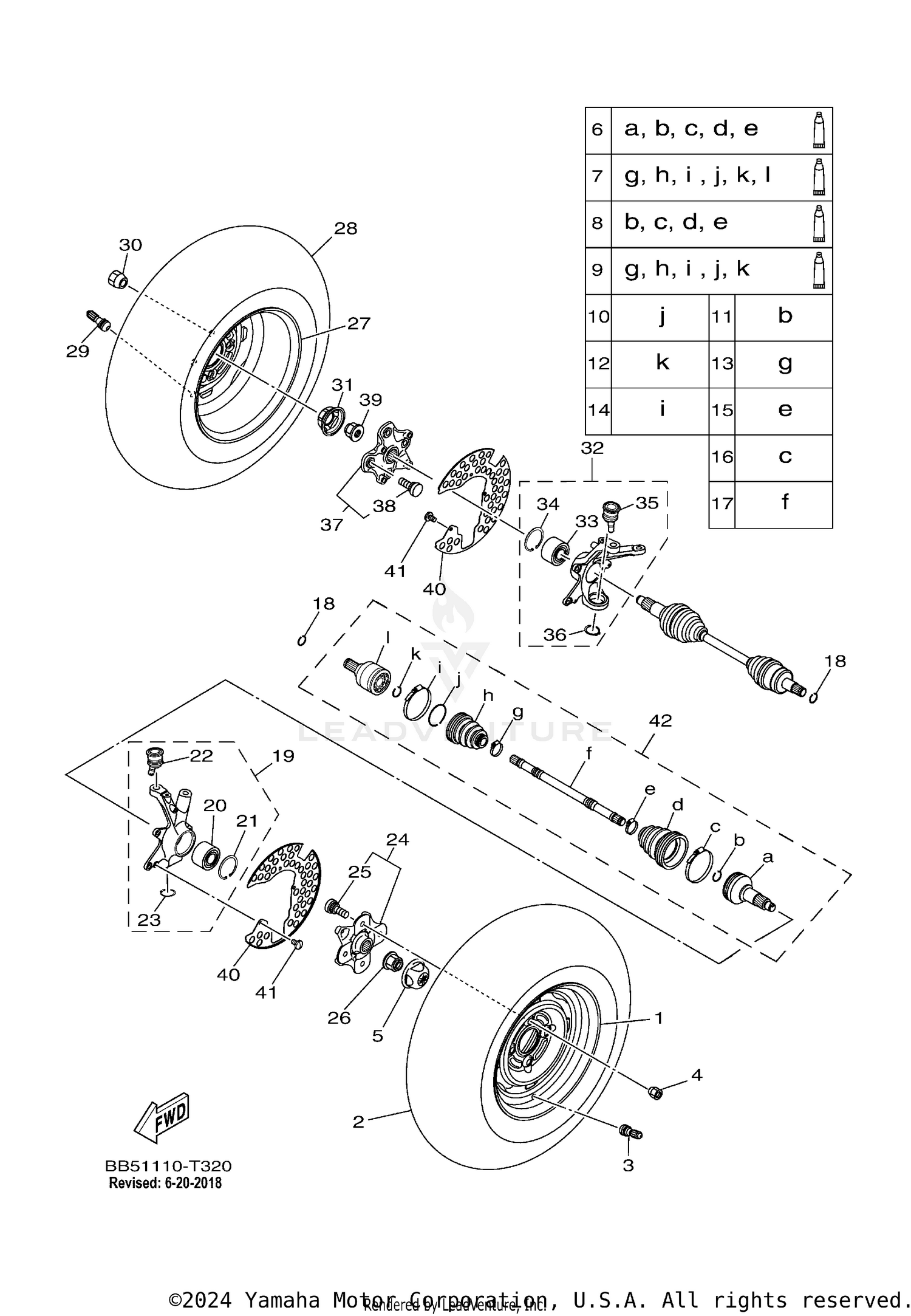

FRONT WHEEL
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B16-F5180-00-00 | WHEEL COMP. Price: $225.99 |
| 4 | 90179-10022-00 | NUT Price: $4.10 |
| 5 | 1HP-F512A-00-00 | CAP, WHEEL Price: $2.30 |
| 7 | BB5-2510J-01-00 | DOUBLE OFF SET JOINT This part replaces BB5-2510J-00-00. Price: $275.99 |
| 9 | BB5-2510H-01-00 | BOOT SET(DOUBLE OFFSET JOINT) This part replaces BB5-2510H-00-00. Price: $79.99 |
| 10 | 4S1-2512H-00-00 | CIRCLIP Price: $1.95 |
| 11 | 3B4-2512H-00-00 | CIRCLIP Price: $7.49 |
| 12 | 2HR-2512J-00-00 | SNAP RING Price: $7.49 |
| 13 | 3HN-2512G-01-00 | BOOT BAND (SMALL) Price: $12.99 |
| 14 | 4S1-2511G-00-00 | BOOT BAND Price: $11.99 |
| 15 | 28P-2512G-00-00 | BOOT BAND (SMALL) Price: $17.99 |
| 16 | 28P-2511H-00-00 | BOOT BAND(DOUBLE OFFSET JOINT) Price: $16.49 |
| 17 | BB5-2518E-00-00 | SHAFT Price: $121.99 |
| 18 | 93450-22119-00 | CIRCLIP Price: $9.49 |
| 19 | BB5-F3501-00-00 | STEERING KNUCKLE ASSY (LEFT) Price: $177.99 |
| 20 | 93305-00602-00 | BEARING Price: $110.99 |
| 21 | 99009-55500-00 | CIRCLIP Price: $10.49 |
| 22 | 3B4-23579-01-00 | BALL JOINT 2 Price: $90.99 |
| 23 | 99009-30400-00 | CIRCLIP Price: $9.49 |
| 24 | B16-F510D-03-00 | HUB ASSY 2 This part replaces B16-F510D-01-00. Price: $59.99 |
| 25 | 90114-10014-00 | BOLT, SERRATION Price: $3.55 |
| 26 | 90179-20016-00 | NUT Price: $12.99 |
| 27 | B16-F5180-00-00 | WHEEL COMP. Price: $225.99 |
| 30 | 90179-10022-00 | NUT Price: $4.10 |
| 31 | 1HP-F512A-00-00 | CAP, WHEEL Price: $2.30 |
| 32 | BB5-F3502-00-00 | STEERING KNUCKLE ASSY (RIGHT) Price: $235.99 |
| 33 | 93305-00602-00 | BEARING Price: $110.99 |
| 34 | 99009-55500-00 | CIRCLIP Price: $10.49 |
| 35 | 3B4-23579-01-00 | BALL JOINT 2 Price: $90.99 |
| 36 | 99009-30400-00 | CIRCLIP Price: $9.49 |
| 37 | B16-F510D-03-00 | HUB ASSY 2 This part replaces B16-F510D-01-00. Price: $59.99 |
| 38 | 90114-10014-00 | BOLT, SERRATION Price: $3.55 |
| 39 | 90179-20016-00 | NUT Price: $12.99 |
| 40 | BB5-F514A-00-00 | RING, WHEEL 1 Price: $16.49 |
| 41 | 98980-06010-00 | SCREW, BIND This part replaces 98902-06010-00. Price: $10.49 |
