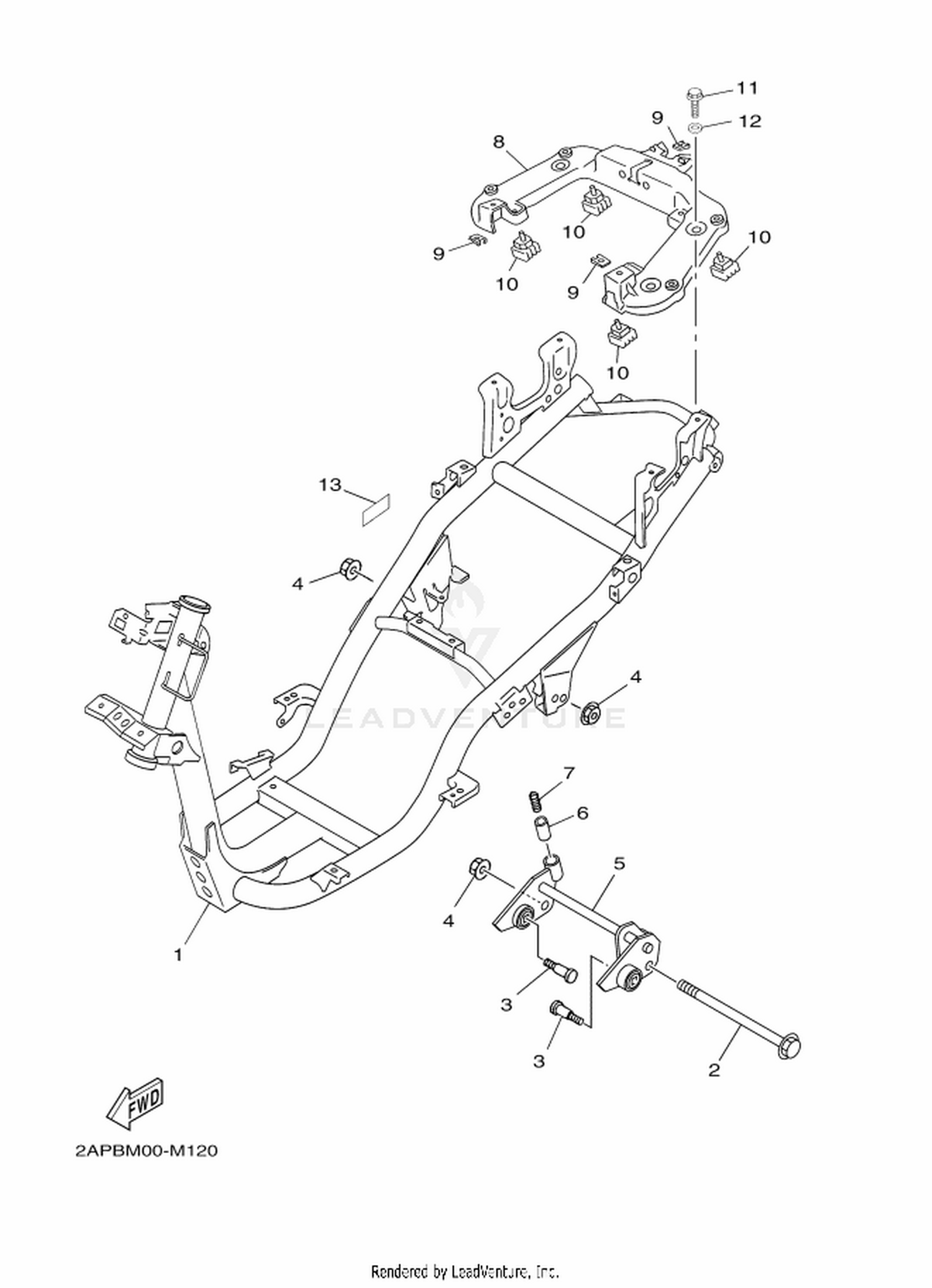

12 FRAME
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 90105-10N52 | BOLT, FLANGE Price: Call Us |
| 3 | 3WG-F1481-10 | BOLT, ENGINE MOUNTING 1 Price: Call Us |
| 4 | 90185-10154 | NUT, SELF-LOCKING Price: Call Us |
| 5 | 5C2-F1410-20 | ENGINE BRACKET COMP. Price: Call Us |
| 6 | 3WG-F139X-00 | DAMPER Price: Call Us |
| 7 | 90501-29517 | SPRING, COMPRESSION Price: Call Us |
| 8 | 5C2-F1232-02 | REINFORCEMENT, TAIL Price: Call Us |
| 9 | 90183-06816 | NUT, SPRING Price: Call Us |
| 10 | 5C2-F1485-01 | DAMPER, RUBBER 1 Price: Call Us |
| 11 | 90101-08X08 | BOLT Price: Call Us |
| 12 | 90201-08X08 | WASHER, PLATE Price: Call Us |
