| Ref | Part Number | Description |
|---|
| 2 |
8NV-H5820-00-00 |
SERVO MOTOR ASSY Price: $526.99 |
| 3 |
8JP-RA518-00-00 |
RIVET, 9 Price: $0.65 |
| 4 |
8NV-F3881-00-00 |
BRACKET 1 Price: $247.99 |
| 5 |
8JP-F3775-00-00 |
INSERT Price: $2.80 |
| 6 |
8ND-F2527-00-00 |
SUPPORT, MEMBER Price: $25.99 |
| 7 |
8JP-RA187-00-00 |
BOLT, FLANGE M8X1.25X30 Price: $1.85 |
| 8 |
8JP-RA297-00-00 |
SCREW, 8 Price: $4.10 |
| 9 |
8JM-RA301-00-00 |
NUT, SELF-LOCKING M8-1.25 Price: $1.15 |
| 10 |
8JP-RA372-00-00 |
NUT, HEX. LOCKING M8X1.25 Price: $0.65 |
| 11 |
8JP-F111A-10-00 |
CAP, MAIN PIPE Price: $4.90 |
| 12 |
8ND-F2162-00-00 |
PIPE, CROSS Price: $30.99 |
| 13 |
8ND-RAB01-00-00 |
CLAMP, 2 Price: $4.55 |
| 14 |
8JP-E244E-00-00 |
BRACKET 1 Price: $39.99 |
| 15 |
8JP-RA183-00-00 |
BOLT, FLANGE M6X1.0X30 Price: $1.50 |
| 16 |
8ND-F2568-00-00 |
SUPPORT 2 Price: $80.99 |
| 17 |
8ND-F2567-00-00 |
SUPPORT 1 Price: $99.99 |
| 18 |
8ND-RA177-00-00 |
BOLT, FLANGE Price: $4.70 |
| 19 |
8ND-RA122-00-00 |
BOLT Price: $1.75 |
| 20 |
8JP-RA185-00-00 |
BOLT, FLANGE M8X1.25X20 Price: $0.90 |
| 21 |
8ND-F111J-00-00 |
MEMBER, SIDE 1 Price: $72.99 |
| 22 |
8ND-F111K-10-00 |
MEMBER, SIDE 2 Price: $61.99 |
| 23 |
8JP-RA182-00-00 |
BOLT, FLANGE M6X1.0X25 Price: $0.70 |
| 24 |
8JM-RA407-00-00 |
WASHER, TOOTHED LOCK 1/4 Price: $0.35 |
| 25 |
8JP-RA379-00-00 |
NUT, LOCK 1 Price: $0.65 |
| 26 |
8JP-RA256-00-00 |
SCREW, M6X1.0X16 Price: $0.60 |
| 27 |
8ND-RA200-00-00 |
SCREW Price: $3.00 |
| 28 |
8JP-RA354-00-00 |
NUT, CLIP M6 Price: $1.30 |
| 29 |
8ND-F3591-00-00 |
BRACKET 1 Price: $44.99 |
| 30 |
8ND-H2310-00-00 |
IGNITION COIL ASSY Price: $172.99 |
| 31 |
8ND-H2370-00-00 |
PLUG CAP ASSY Price: $44.99 |
| 32 |
8ND-RA204-00-00 |
SCREW Price: $1.15 |
| 33 |
8ND-RA205-00-00 |
SCREW Price: $2.35 |
| 34 |
8KC-F3871-00-00 |

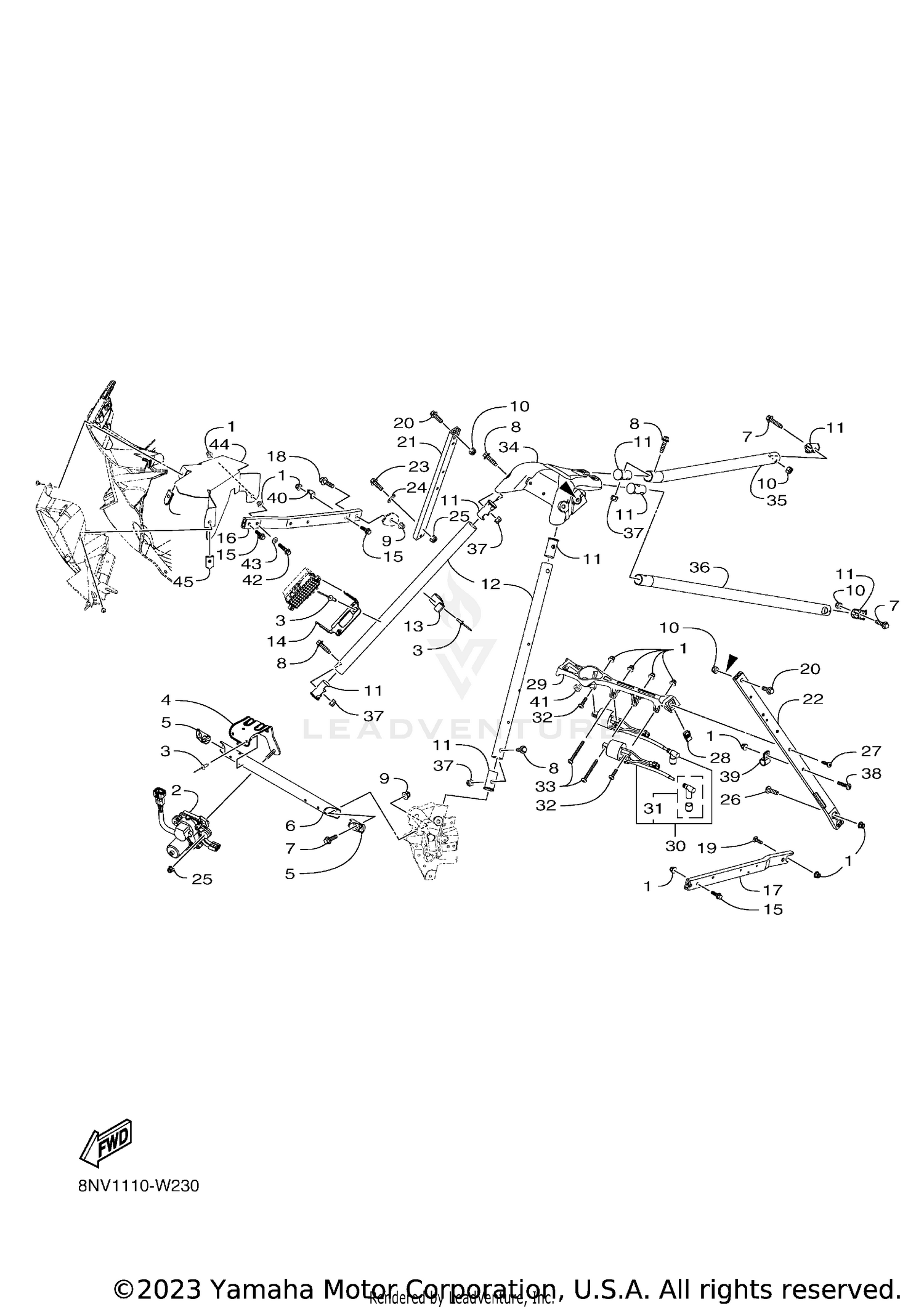

GATE, STEERING Price: $316.99 |
| 35 |
8KC-F119E-00-00 |
PIPE, CROSS, 7 Price: $41.99 |
| 36 |
8KC-F119F-00-00 |
PIPE CROSS 8 Price: $49.99 |
| 37 |
8JP-RA371-00-00 |
NUT, HEX. LOCKING M10X1/25 Price: $1.40 |
| 38 |
8JP-RA263-00-00 |
SCREW, M6X1.0X25 Price: $2.70 |
| 39 |
8JP-RAB23-00-00 |
CLAMP, 21 Price: $1.20 |
| 40 |
8ML-E4744-00-00 |
BRACKET Price: $3.75 |
| 41 |
8ND-F376B-00-00 |
BUSH Price: $2.35 |
| 42 |
8NV-RA107-00-00 |
BOLT, HEXAGON Price: $2.25 |
| 43 |
8ML-RA402-00-00 |
WASHER, SPRING 5/16 Price: $1.00 |
| 44 |
8NV-F286A-00-00 |
DUCT 1 Price: $39.99 |
